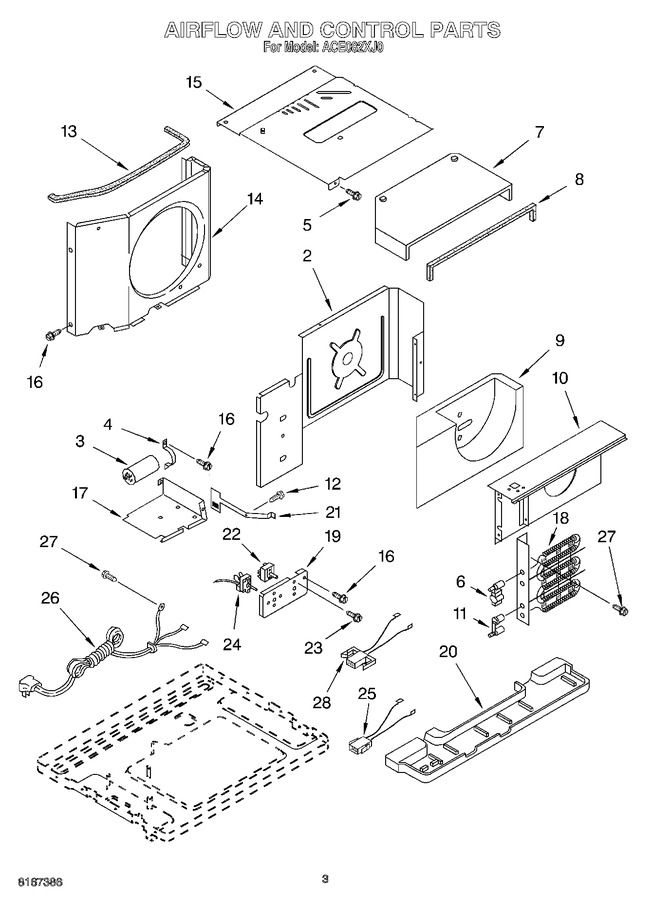

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	8031104		Wall, Dividing		Appelez-nous	-
3	1162599		Capacitor, Running		Appelez-nous	-
4	1167611		Bracket, Running Capacitor		Appelez-nous	-
5	1161561		Screw		Appelez-nous	-
6	4388379		Limit Switch		Appelez-nous	-
7	8031570		Hood, Air Housing		Appelez-nous	-
8	WP854334		Seal, Hood   (Replaces: 1180698)				$ 12.55
9	8031586		Housing, Air		Appelez-nous	-
10	8031405		Shroud, Evaporator		Appelez-nous	-
11	4388360		Link, Fuse		Appelez-nous	-
12	8031309		Screw, 8-18 X .437		Appelez-nous	-
13	8031312		Seal, Condenser Shroud		Appelez-nous	-
14	8031110		Shroud, Condenser		Appelez-nous	-
15	8031112		Cover, Unit		Appelez-nous	-
16	488624		Screw, 8-15 X .375		Appelez-nous	-
17	8031200		Box, Control		Appelez-nous	-
18	8031406		Element, Heating		Appelez-nous	-
19	8031311		Panel, Control		Appelez-nous	-
20	8031111		Pan, Drain		Appelez-nous	-
21	8011139		Door, Exhaust		Appelez-nous	-
22	8031416		Switch, Rotary		Appelez-nous	-
23	488734		Screw, Machine 6-32 X .175 (4)		Appelez-nous	-
24	8011237		Thermostat		Appelez-nous	-
25	8031407		Harness, Heater Plug		Appelez-nous	-
26	8031418		Cable, Appliance		Appelez-nous	-
27	1159222		Screw 8-18 X .295		Appelez-nous	-
28	8031408		Heater, Harness Receptacle		Appelez-nous	-
