SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Shelves


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Unit Parts


8 - Icemaker Wr30x0328

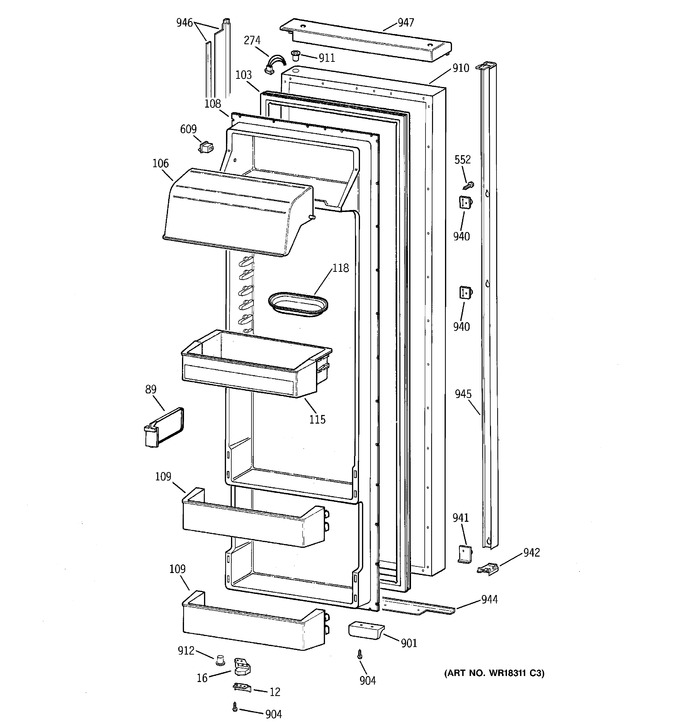

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	WR2X9244		Stop Door		Appelez-nous	-
16	WR2X9234		Cam Closure Wh Ff		Appelez-nous	-
89	WR2X9444		Snugger Module		Appelez-nous	-
103	WR24X560		Gasket Door Ff Wh		Appelez-nous	-
106	WR22X524		Door Dairy Clear		Appelez-nous	-
108	WR77X675		Door Inner Ff		Appelez-nous	-
109	WR71X2700		Module Asm		Appelez-nous	-
115	WR71X2702		Module Asm		Appelez-nous	-
118	WR19X37		Dish Butter Glass		Appelez-nous	-
274	WR23X10041		Harness Ff Lt Sw		Appelez-nous	-
552	WR1X2022		Scr 12-24 Tt Ovt .900 S		Appelez-nous	-
609	WR23X426		Switch Light Ff		Appelez-nous	-
901	WR10X125		Strike Magnet Asm Wh		Appelez-nous	-
904	WR1X2134		Scr 10-32 Pnt 1.0 S Lw		Appelez-nous	-
910	WR78X10276		Door Foam Asm Ff Wh		Appelez-nous	-
911	WR1X2032		Thimble Door Top Wh		Appelez-nous	-
912	WR1X2133		Thimble Door Btm Ff Wh		Appelez-nous	-
940	WR17X10232		Brace Handle		Appelez-nous	-
941	WR17X4221		Brace Handle Lower Ff		Appelez-nous	-
942	WR17X4234		Cap Trim Btm Ff Wh		Appelez-nous	-
944	WR17X4237		Trim Door Bottom Ff Wh		Appelez-nous	-
945	WR12X10197		Handle Door Asm Wh Ff		Appelez-nous	-
946	WR17X4238		Trim Door Side Ff Wh		Appelez-nous	-
947	WR17X4240		Trim Door Top Ff Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
