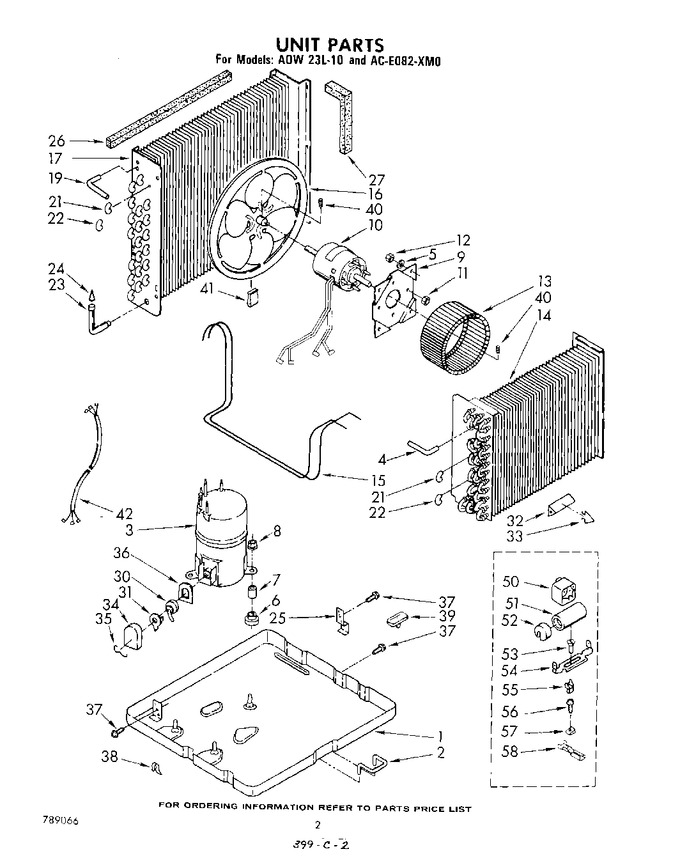

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 858803 | Base Assembly |
|
- | |||||
| 2 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 3 | 484285 | Compressor, Assembly |
|
- | |||||
| 4 | 647949 | Tube, 90~ Connect |
|
- | |||||
| 5 | 470280 | Washer, Shim (4) |
|
- | |||||
| 6 | 469581 | Grommet (3) |
|
- | |||||
| 7 | 858148 | Sleeve (3) |
|
- | |||||
| 8 | 858121 | Nut, Lock (3) |
|
- | |||||
| 9 | 998024 | Plate, Fan Motor |
|
- | |||||
| 10 | 998368 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex Keps 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | 858122 | Nut, Lock |
|
- | |||||
| 13 | 852065 | Wheel, Blower |
|
- | |||||
| 14 | 997408 | Evaporator Assembly |
|
- | |||||
| 15 | 997410 | Tube, Restrictor (2) (length 25.50``) |
|
- | |||||
| 16 | 947370 | Blade, Fan |
|
- | |||||
| 17 | 997407 | Condenser Assembly |
|
- | |||||
| 19 | 475635 | Tube, 90~ Connect |
|
- | |||||
| 21 | 855199 | Bend, Return Condenser (18) Evaporator (5) |
|
- | |||||
| 22 | 854624 | Bend, Return Condenser (4) Evaporator (10) |
|
- | |||||
| 23 | 484230 | Tube & Strainer Assembly (includes Illus. 24) |
|
- | |||||
| 24 | 49599 | Strainer |
|
- | |||||
| 25 | 647824 | Condenser, Support (r.s.) |
|
- | |||||
| 26 | 649609 | Seal |
|
- | |||||
| 27 | 649610 | Seal |
|
- | |||||
| 30 | 646781 | Overload |
|
- | |||||
| 31 | 644362 | Spring, Overload |
|
- | |||||
| 32 | 484238 | Anticipator, Temperature |
|
- | |||||
| 33 | 642080 | Clip, Anticipator |
|
- | |||||
| 34 | 855762 | Cover, Terminal |
|
- | |||||
| 35 | 475062 | Strap, Terminal Cover |
|
- | |||||
| 36 | 643296 | Gasket, Terminal Cover |
|
- | |||||
| 37 | WP489069 | Screw, Sheet Metal No.8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 38 | 642684 | Clamp, Restrictor Tube |
|
- | |||||
| 39 | 647850 | Cup, Condensate |
|
- | |||||
| 40 | 595085 | Setscrew, 5/16 X 1/4 |
|
- | |||||
| 41 | 485334 | Clip, Balancing |
|
- | |||||
| 42 | 484136 | Harness, Wiring |
|
- | |||||
| 50 | 484177 | Relay |
|
- | |||||
| 51 | 48616 | Capacitor |
|
- | |||||
| 52 | 465280 | Xcap, Capacitor |
|
- | |||||
| 53 | 487880 | Xscrew |
|
- | |||||
| 54 | 35564 | Xbracket, Capacitor |
|
$ 262.34 | |||||
| 55 | 90654 | Multiplier, Terminal |
|
- | |||||
| 56 | WP965173 | Xscrew, 8 X 3/8 (Replaces: 487869) |
|
Immediately | $ 10.68 | ||||
| 57 | 488660 | Xnut, Speed (Replaces: 486197) |
|
- | |||||
| 58 | 484220 | Start Assist Kit |
|
- | |||||
| 58 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 58 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| 58 | 485608 | Hard Start Kit |
|
- | |||||
| 58 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 58 | 45571 | Xflag, Terminal (8) |
|
- | |||||
| 58 | 484310 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 58 | 505168 | No Drip Tape (for Sweating Tubes) |
|
- | |||||
| 58 | 10943 | Oil, Turbine 1 Fl. Oz. |
|
- | |||||
| 58 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| 58 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 58 | 978028 | Valve, Access (1/2) |
|
- |
