SELECT A DIAGRAM

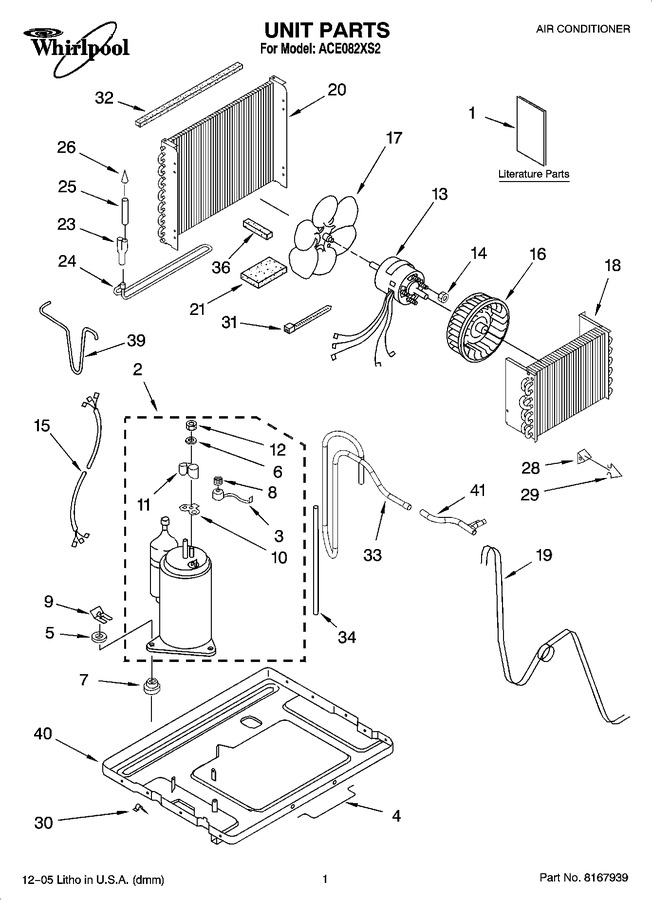

01 - Unit Parts


02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1188080		Use & Care Guide		Appelez-nous	-
1	1188636		Energy Guide		Appelez-nous	-
1	8011287		Wiring Diagram		Appelez-nous	-
2	1187376		Compressor		Appelez-nous	-
3	1187489		Overload		Appelez-nous	-
4	8031320		Handle, Base		Appelez-nous	-
5	8011418		Washer, Nylon		Appelez-nous	-
6	1185794		Washer		Appelez-nous	-
7	1188564		Grommet		Appelez-nous	-
8	1185795		Spring, Overload		Appelez-nous	-
9	8011446		Clip, Compressor		Appelez-nous	-
10	1185793		Gasket, Terminal Cover		Appelez-nous	-
11	1185792		Cover, Terminal		Appelez-nous	-
12	W10833054		Nut, Hex   (Replaces: 1186030)		Appelez-nous	-
13	1188297		Motor, Fan		Appelez-nous	-
14	WP488130		Nut, Hex Keps   (Replaces: 488130)				$ 6.59
15	1186625		Wiring Harness, Compressor		Appelez-nous	-
16	8031415		Wheel, Blower		Appelez-nous	-
17	8031414		Blade, Fan		Appelez-nous	-
18	1184778		Evaporator		Appelez-nous	-
19	1184679		Tube, Restrictor		Appelez-nous	-
20	8031226		Condenser				$ 213.98
21	1182480		Putty, Sound Dampener		Appelez-nous	-
23	947364		Tube, Flow Divider		Appelez-nous	-
24	8031238		Tube, Wet Loop		Appelez-nous	-
25	951437		Tube, Outlet (includes No. 26)		Appelez-nous	-
26	49599		Strainer, Tube		Appelez-nous	-
28	1166782		Anticipator, Temperature		Appelez-nous	-
29	642080		Clip, Temperature Anticipator		Appelez-nous	-
30	471088		Clamp, Tube		Appelez-nous	-
31	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
32	1181735		Seal		Appelez-nous	-
33	1187751		Tube, Suction		Appelez-nous	-
34	1185481		Seal, Suction Tube		Appelez-nous	-
36	WP854334		Seal, Condenser Bottom   (Replaces: 859600)				$ 12.55
39	1187750		Tube, Discharge		Appelez-nous	-
40	8031392		Base		Appelez-nous	-
41	1187821		Manifold, Suction		Appelez-nous	-
