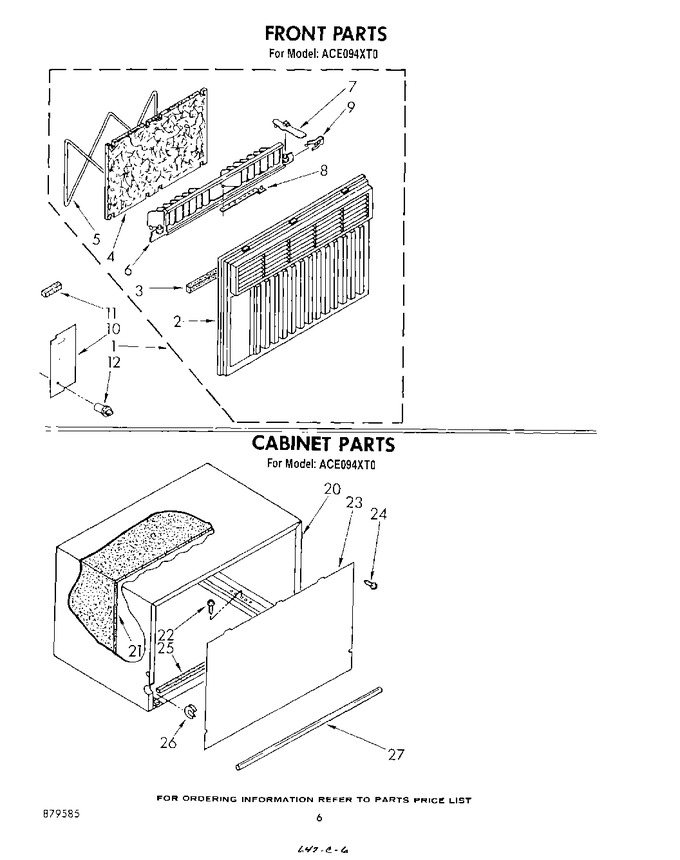

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	951115		Front, Cabinet (complete Assembly)		Appelez-nous	-
2	950539		Frame, Front		Appelez-nous	-
3	WP854334		Seal, Front (top)   (Replaces: 647913)				$ 12.55
3	647914		Seal, Front (middle)		Appelez-nous	-
4	468008		Filter, Air		Appelez-nous	-
5	476707		Retainer, Filter		Appelez-nous	-
6	647798		Louver, Vertical		Appelez-nous	-
7	644165		Handle, Louver		Appelez-nous	-
8	647799		Link, Louver (2)		Appelez-nous	-
9	641484		Spring, Clip (2)				$ 150.14
10	952595		Plate, Escutcheon		Appelez-nous	-
11	470036		Spacer, Escutcheon (3)		Appelez-nous	-
12	947264		Knob, Control (3)		Appelez-nous	-
20	857274		Cabinet		Appelez-nous	-
21	855438		Insulation, Cabinet		Appelez-nous	-
22	487371		Screw No.10 X 3/4 (8)		Appelez-nous	-
23	853974		Panel, Front		Appelez-nous	-
24	WP487353		Screw, S.m.no.6-18 X 1/2 (2)   (Replaces: 488374)				$ 7.16
25	WP854334		Seal, Cabinet (top)   (Replaces: 853372)				$ 12.55
25	WP854334		Seal, Cabinet (side (2))   (Replaces: 853373)				$ 12.55
25	647854		Seal, Cabinet Bottom		Appelez-nous	-
25	649972		Seal, Cabinet Weather		Appelez-nous	-
26	647849		Grommet, Cable		Appelez-nous	-
27	212643		Sealer, Gum   (Replaces: 470168)			Immediately	$ 86.78
