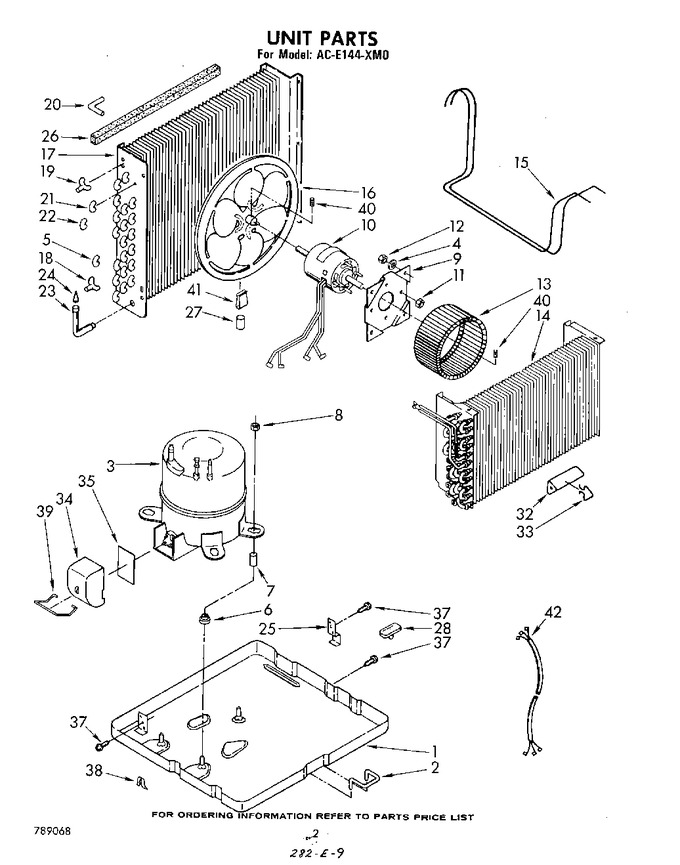

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	858803		Base Assembly		Appelez-nous	-
2	00647971		Handle, Base   (Replaces: 647971)				$ 129.08
3	484296		Compressor Assembly		Appelez-nous	-
4	470280		Washer (4)		Appelez-nous	-
5	855644		Bend, Return (1)		Appelez-nous	-
6	469581		Grommet (3)		Appelez-nous	-
7	858148		Sleeve, Mounting (3)		Appelez-nous	-
8	858121		Nut, Lock (3)		Appelez-nous	-
9	998024		Plate, Fan Motor		Appelez-nous	-
10	998445		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex Keps 8-32 (4)   (Replaces: 488130)				$ 6.59
12	858122		Nut, Lock		Appelez-nous	-
13	852067		Wheel, Blower		Appelez-nous	-
14	949606		Evaporator Assembly		Appelez-nous	-
15	997594		Tube, Restrictor (2) (33`` Length)		Appelez-nous	-
16	949536		Blade, Fan		Appelez-nous	-
17	993132		Condenser Assembly		Appelez-nous	-
18	49493		Bend, Return 3-way		Appelez-nous	-
19	476078		Bend, Return (3-way)		Appelez-nous	-
20	475635		Tube, 90o Connect (2)		Appelez-nous	-
21	855199		Bend, Return (18)		Appelez-nous	-
22	854624		Bend, Return Condenser (6) Evaporator (4)		Appelez-nous	-
23	484230		Tube & Strainer Assembly (includes Illus. 24)		Appelez-nous	-
24	49599		Strainer		Appelez-nous	-
25	647824		Condenser, Support (r.s.)		Appelez-nous	-
26	WP854334		Seal   (Replaces: 854681)				$ 12.55
27	858836		Dampener		Appelez-nous	-
28	647850		Cup, Condensate		Appelez-nous	-
32	484238		Anticipator, Temperature		Appelez-nous	-
33	642080		Clip, Anticipator		Appelez-nous	-
34	855762		Cover, Terminal		Appelez-nous	-
35	643296		Gasket, Cover		Appelez-nous	-
37	WP489069		Screw, Sheet Metal No.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
38	642684		Clamp, Restrictor Tube		Appelez-nous	-
39	475062		Retainer, Cover		Appelez-nous	-
40	595085		Setscrew, 5/16 X 1/4		Appelez-nous	-
41	485334		Clip, Balancing		Appelez-nous	-
42	484220		Start Assist Kit		Appelez-nous	-
42	978028		Valve, Access (1/2)		Appelez-nous	-
42	978029		Valve Access (5/8``)				$ 93.85
42	978030		Valve, Access (3/4``)				$ 123.53
42	484359		Hard Start Kit		Appelez-nous	-
42	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
42	484136		Harness, Wiring		Appelez-nous	-
42	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
42	505168		No Drip Tape (for Sweating Tubes)		Appelez-nous	-
42	10943		Oil, Turbine 1 Fl. Oz.		Appelez-nous	-
42	978026		Valve, Access (5/16``)			Immediately	$ 121.04
42	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
