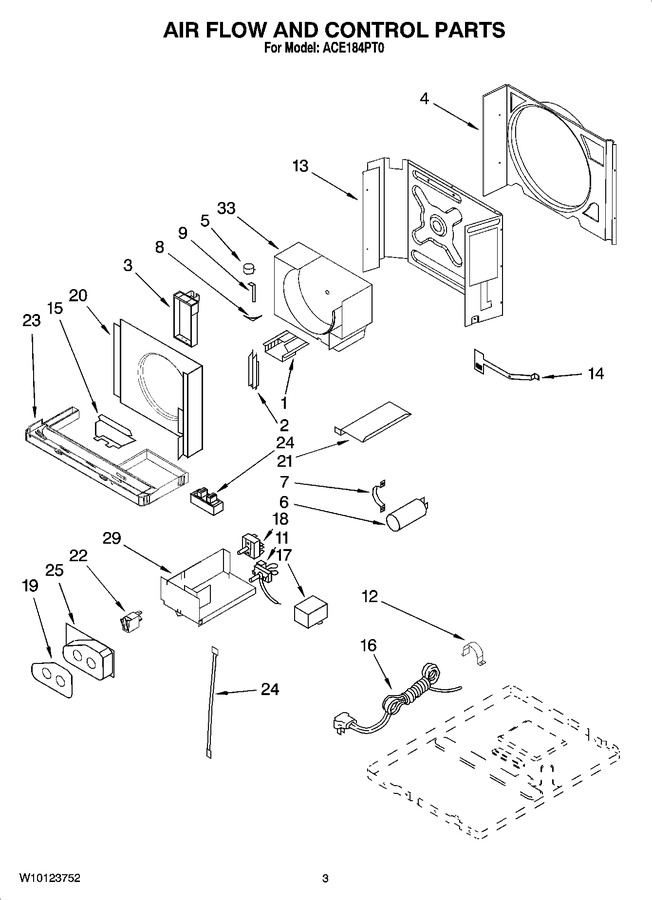

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8215111		Housing, Air		Appelez-nous	-
2	8215112		Louver		Appelez-nous	-
3	8215116		Cartridge, Louver		Appelez-nous	-
4	8215330		Shroud, Condenser		Appelez-nous	-
5	8215114		Motor, Louver		Appelez-nous	-
6	8215129		Capacitor, Running		Appelez-nous	-
7	8215132		Bracket, Capacitor		Appelez-nous	-
8	8215113		Linkage, Louver		Appelez-nous	-
9	8215115		Linkage, Louver		Appelez-nous	-
11	8215335		Thermostat		Appelez-nous	-
12	8215135		Wire Clamp		Appelez-nous	-
13	8215109		Wall, Dividing		Appelez-nous	-
14	8215117		Door, Exhaust		Appelez-nous	-
15	8215334		Shield		Appelez-nous	-
16	8215337		Cord, Appliance		Appelez-nous	-
17	8215313		Capacitor		Appelez-nous	-
18	8215336		Switch, Main		Appelez-nous	-
19	8215338		Escutcheon		Appelez-nous	-
20	8215105		Shroud, Evaporator		Appelez-nous	-
21	8215120		Cover, Air Duct		Appelez-nous	-
22	8215321		Switch		Appelez-nous	-
23	8215127		Pan, Evaporator		Appelez-nous	-
24	8215089		Board, Terminal		Appelez-nous	-
25	8215322		Cover, Control Panel		Appelez-nous	-
29	8215319		Box, Control		Appelez-nous	-
33	8215110		Housing, Air		Appelez-nous	-
