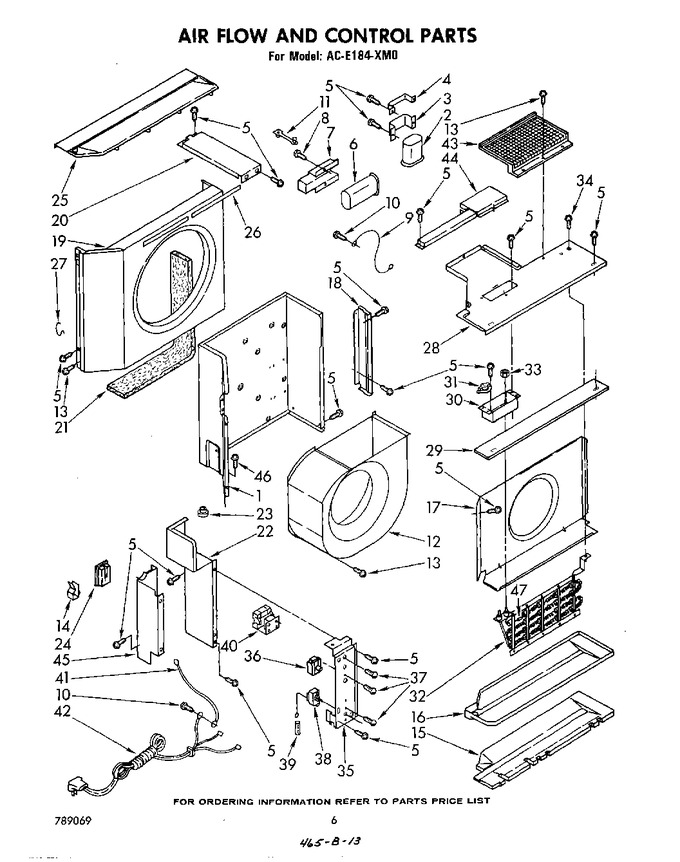

04 - Airflow And Control Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 997393 | Wall, Dividing (requires 649939 Insulation) |
|
- | |||||
| 2 | 947218 | Capacitor, Run |
|
- | |||||
| 3 | 852992 | Bracket, Run Capacitor (shield) |
|
- | |||||
| 4 | 475844 | Bracket, Run Capacitor |
|
- | |||||
| 5 | WP489069 | Screw, S.m.no.8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 5 | WP308685 | Screw, S.m. No.10 X 1/2 (repair) (Replaces: 488861) |
|
Immediately | $ 7.08 | ||||
| 6 | 997996 | Capacitor, Fan Motor |
|
- | |||||
| 7 | 998009 | Bracket, Fan Capacitor (shield) |
|
- | |||||
| 8 | WP488729 | Screw, S.m. No.8 X 3/8 (2) (Replaces: 488979) |
|
Immediately | $ 7.45 | ||||
| 9 | 998177 | Wire, Ground (2) |
|
- | |||||
| 10 | WPW10141604 | Screw, 8-32 X 3/8 (Replaces: 487871) |
|
$ 7.97 | |||||
| 11 | 648791 | Clamp, Cable |
|
- | |||||
| 12 | 998604 | Housing, Blower Wheel |
|
- | |||||
| 13 | WP488729 | Screw, Sm No.8 Sems X 1/2 (Replaces: 487910) |
|
Immediately | $ 7.45 | ||||
| 14 | 947072 | Clamp, Wiring (2) |
|
- | |||||
| 15 | 997237 | Insulation, Pan |
|
- | |||||
| 16 | 997238 | Pan, Condensate |
|
- | |||||
| 17 | 998200 | Deflector, Heater |
|
- | |||||
| 18 | 997397 | Plate, Adapter |
|
- | |||||
| 19 | 997224 | Shroud, Condenser |
|
- | |||||
| 20 | 997262 | Support, Unit |
|
- | |||||
| 21 | 948600 | Seal, Condenser Fin |
|
- | |||||
| 22 | 997394 | Extension, Dividing Wall |
|
- | |||||
| 23 | 853931 | Bushing |
|
- | |||||
| 24 | 948519 | Seal, Tube |
|
- | |||||
| 25 | 997264 | Cover, Condenser Shroud |
|
- | |||||
| 26 | WP854334 | Seal, Strip (shroud) (rear) (Replaces: 997267) |
|
$ 12.55 | |||||
| 26 | 997266 | Seal, Strip (shroud) (side) |
|
- | |||||
| 27 | 477442 | Clip, Shroud (2) |
|
- | |||||
| 28 | 997396 | Cover, Evaporator |
|
- | |||||
| 29 | 948239 | Insulation, Cover |
|
- | |||||
| 30 | 854990 | Bracket, Heater |
|
- | |||||
| 31 | 947297 | Switch, Limit |
|
- | |||||
| 32 | 947298 | Heater, Air |
|
- | |||||
| 33 | WP488826 | Nut, Hex 10-32 (Replaces: 487735) |
|
$ 5.88 | |||||
| 34 | WP488234 | Screw, Mach. 8-32 X 1/4 (Replaces: 488777) |
|
$ 6.37 | |||||
| 35 | 857477 | Panel, Control |
|
- | |||||
| 36 | 950526 | Switch, Rotary |
|
- | |||||
| 37 | 488734 | Screw, Mach. 6-32 X 3/8 |
|
- | |||||
| 38 | 996640 | Control, Temperature |
|
- | |||||
| 39 | 476835 | Sleeve, Insulator |
|
- | |||||
| 40 | 643742 | Contactor |
|
- | |||||
| 41 | 947301 | Wire, Ground |
|
- | |||||
| 42 | 853063 | Cable, Appliance |
|
- | |||||
| 43 | 856506 | Guard, Impeller |
|
- | |||||
| 44 | 998601 | Cover, Heater |
|
- | |||||
| 45 | 997278 | Cover, Controls |
|
- | |||||
| 46 | 488624 | Screw, S.m. No.8 X 3/8 (2) |
|
- | |||||
| 47 | 789069 | List, Repair Parts |
|
- | |||||
| 47 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 47 | 484069 | Cover, Winter |
|
$ 62.49 | |||||
| 47 | 951160 | Sheet, Service Tech (service Information) |
|
- | |||||
| 47 | 950808 | Guide, Consumer Buy |
|
- | |||||
| 47 | 950357 | Guide, Use & Care |
|
- | |||||
| 47 | 951011 | Guide, Energy |
|
- | |||||
| 47 | 484277 | Fuse, Heater |
|
- | |||||
| 47 | 212643 | Sealer, Gum (cabinet & Windows) (Replaces: 470168) |
|
Immediately | $ 86.78 | ||||
| 47 | 854937 | Insulation, Cabinet (rigth Side) |
|
- | |||||
| 47 | 854938 | Insulation, Cabinet (left Side) |
|
- | |||||
| 47 | 855438 | Insulation, Cabinet (top) |
|
- | |||||
| 47 | 997236 | Insulation, Base |
|
- | |||||
| 47 | WP279368 | Adhesive, To Attach Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| 47 | 47261 | Wire, Black (25 Ft.) |
|
- | |||||
| 47 | 47262 | Wire, Red, (25 Ft.) |
|
- | |||||
| 47 | 47263 | Wire, White (25 Ft.) |
|
- | |||||
| 47 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- |
