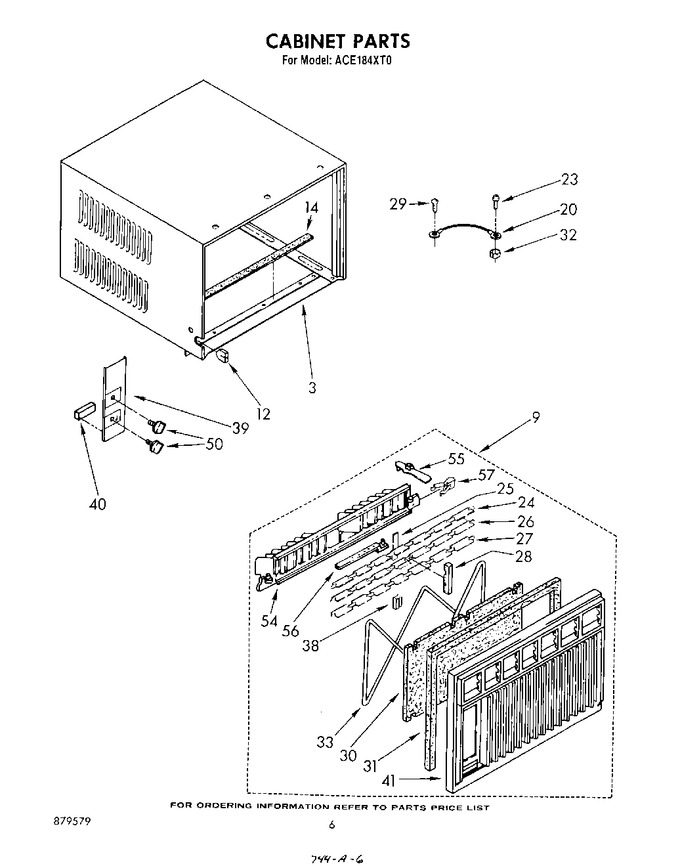

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	997280		Cabinet		Appelez-nous	-
9	951143		Front, Cabinet (complete)		Appelez-nous	-
12	647849		Grommet, Wiring		Appelez-nous	-
14	852220		Seal, Bottom		Appelez-nous	-
20	857152		Ground Wire (base To Cabinet)		Appelez-nous	-
23	488853		Screw, 8-32 X 3/8		Appelez-nous	-
24	947269		Louver, Horizontal (4)		Appelez-nous	-
25	855998		Retainer (4)		Appelez-nous	-
26	947267		Louver, Horizontal (handle)		Appelez-nous	-
27	947268		Louver, Horizontal (relieved)		Appelez-nous	-
28	853772		Rack, Louver (2)		Appelez-nous	-
29	488854		Screw, 8-32 X 3/8		Appelez-nous	-
30	649958		Filter, Air		Appelez-nous	-
31	649726		Seal, Front (bottom)		Appelez-nous	-
31	649725		Seal, Front (top & Sides)		Appelez-nous	-
32	WP486255		Nut, No. 8-32   (Replaces: 486529)				$ 5.82
33	476707		Retainer, Filter		Appelez-nous	-
38	855999		Clip, Retainer (4)		Appelez-nous	-
39	952551		Plate, Escutcheon		Appelez-nous	-
40	469175		Spacer, Escutcheon Plate (2)		Appelez-nous	-
41	950550		Frame, Front		Appelez-nous	-
50	947264		Knob, Control (2)		Appelez-nous	-
54	649957		Louver, Vertical		Appelez-nous	-
55	852010		Handle, Vertical Louver (2)		Appelez-nous	-
56	852209		Link, Vertical Louver (2)		Appelez-nous	-
57	641484		Spring, Detent (2)				$ 150.14
