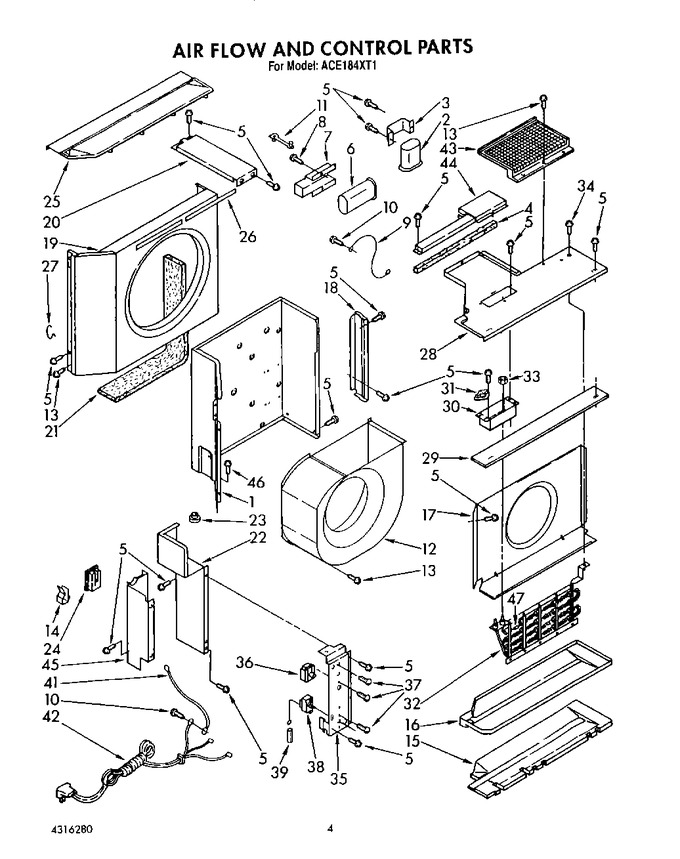

03 - Air Flow And Control


04 - Cabinet


05 - Optional


06 - Accessory


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	953031		Wall, Dividing		Appelez-nous	-
2	952382		Capacitor, Run		Appelez-nous	-
3	852992		Bracket, Run Capacitor (shield)		Appelez-nous	-
4	855265		Seal, Strip		Appelez-nous	-
5	WP489069		Screw, S.m.no.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
5	WP308685		Screw, S.m. No.10 X 1/2 (repair)   (Replaces: 488861)			Immediately	$ 7.08
6	999786		Capacitor, Fan Motor		Appelez-nous	-
7	1156411		Bracket, Fan Capacitor (shield)		Appelez-nous	-
8	WP488729		Screw, S.m. No.8 X 3/8 (2)   (Replaces: 488979)			Immediately	$ 7.45
9	998177		Wire, Ground (2)		Appelez-nous	-
10	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
11	648791		Clamp, Cable		Appelez-nous	-
12	998604		Housing, Blower Wheel		Appelez-nous	-
13	WP488729		Screw, Sm No.8 Sems X 1/2   (Replaces: 487910)			Immediately	$ 7.45
14	947072		Clamp, Wiring (2)		Appelez-nous	-
15	997237		Insulation, Pan		Appelez-nous	-
16	997238		Pan, Condensate		Appelez-nous	-
17	998200		Deflector, Heater		Appelez-nous	-
18	997397		Plate, Adapter		Appelez-nous	-
19	953028		Shroud, Condenser		Appelez-nous	-
20	1156536		Support, Unit		Appelez-nous	-
21	948600		Seal, Condenser Fin		Appelez-nous	-
22	1156284		Extension, Dividing Wall		Appelez-nous	-
23	853931		Bushing		Appelez-nous	-
24	1155479		Seal, Tube		Appelez-nous	-
25	997264		Cover, Condenser Shroud		Appelez-nous	-
26	997266		Seal, Strip (shroud) (side)		Appelez-nous	-
26	WP854334		Seal, Strip (shroud) (rear)   (Replaces: 997267)				$ 12.55
27	994686		Clip, Shroud (2)		Appelez-nous	-
28	997396		Cover, Evaporator		Appelez-nous	-
29	948239		Insulation, Cover		Appelez-nous	-
30	854990		Bracket, Heater		Appelez-nous	-
31	951462		Switch, Limit		Appelez-nous	-
32	1158770		Heater, Air		Appelez-nous	-
33	WP488826		Nut, Hex 10-32   (Replaces: 487735)				$ 5.88
34	WP488234		Screw, Mach. 8-32 X 1/4   (Replaces: 488777)				$ 6.37
35	852219		Panel, Control		Appelez-nous	-
36	1158088		Switch, Rotary		Appelez-nous	-
37	488734		Screw, Mach. 6-32 X 3/8		Appelez-nous	-
38	1155800		Control, Temperature		Appelez-nous	-
39	476835		Sleeve, Insulator		Appelez-nous	-
41	947301		Wire, Ground		Appelez-nous	-
42	853063		Cable, Appliance		Appelez-nous	-
43	856506		Guard, Impeller		Appelez-nous	-
44	998601		Cover, Heater		Appelez-nous	-
45	952208		Cover, Controls		Appelez-nous	-
46	488624		Screw, S.m. No.8 X 3/8 (2)		Appelez-nous	-
47	484450		Fuse, Heater		Appelez-nous	-
