SELECT A DIAGRAM

1 - Control Panel


2 - Body Parts


3 - Door


4 - Door Lock


5 - Convection Fan

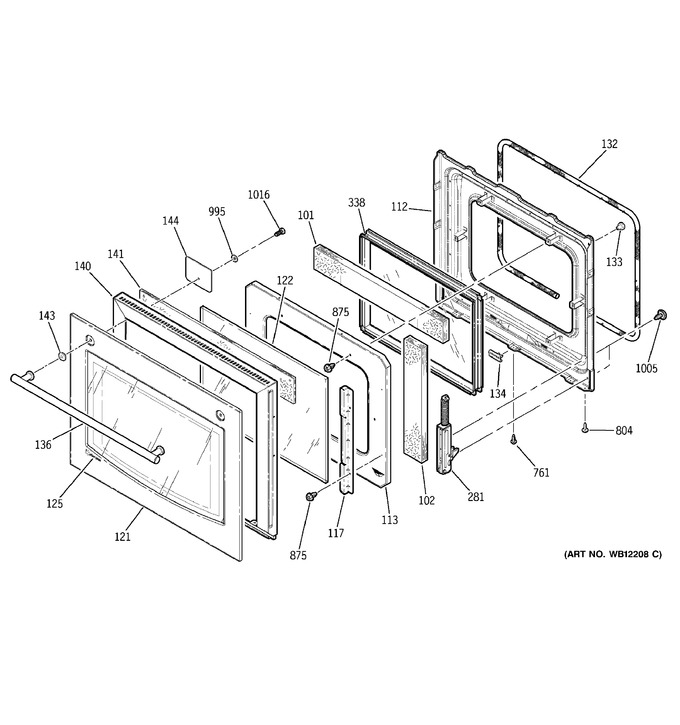

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35T10062		Oven Door Insulation Top		Appelez-nous	-
102	WB35T10061		Oven Door Insulation Sde		Appelez-nous	-
112	WB55T10088		Ov Dr Liner Asm-upper		Appelez-nous	-
113	WB02T10126		Retainer Insln Ovn Dr		Appelez-nous	-
117	WB2K5310		Oven Door Glass Retainer		Appelez-nous	-
121	WB55T10103		Panel Ovn Dr Asm		Appelez-nous	-
122	WB57T10195		Glass Ovn Dr Inr		Appelez-nous	-
125	WB02T10127		Decal Logo Monogram		Appelez-nous	-
132	WB32T10010		Ov Dr Gasket-upper		Appelez-nous	-
133	WB03T10156		Door Bumper		Appelez-nous	-
134	WB02T10117		Btm Trim Clip		Appelez-nous	-
136	WB15T10055		Handle Asm		Appelez-nous	-
140	WB55T10099		Frame Ovn Dr Asm (blk)		Appelez-nous	-
141	WB35T10068		Insulation		Appelez-nous	-
143	WB02T10138		Bushing Ovn Dr Hdl		Appelez-nous	-
144	WB02T10128		Plate Reinforcement		Appelez-nous	-
281	WB10T10019		Hinge Door		Appelez-nous	-
281	WB10T10020		Hinge Door		Appelez-nous	-
338	WG02L02391		Window Pack Asm   (Replaces: WB55T10086)			Immediately	$ 153.35
761	WB1K5029		Screw-black		Appelez-nous	-
804	WB1X1127		Screw		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
995	WB01T10060		Washer		Appelez-nous	-
1005	WS01A01018		Scr 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57
1016	WB01T10063		Screw 1/4-tpi Fl Hx 9/10		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
