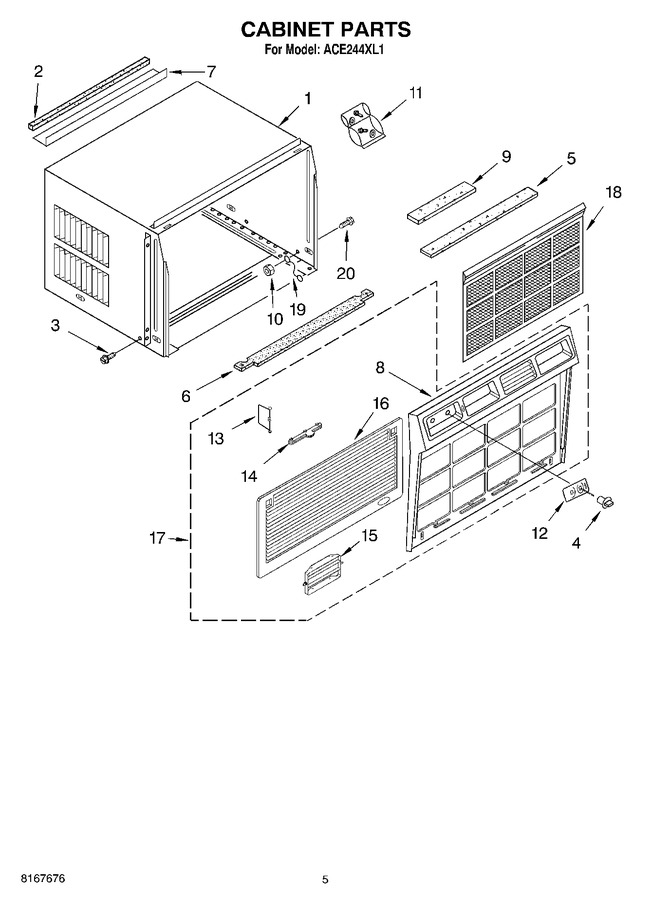

01 - Unit Parts
02 - Airflow And Control Parts
03 - Cabinet Parts
04 - Optional Parts (not Included)
05 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1185518 | Cabinet |
|
- | |||||
| 2 | 469877 | Gasket, Meeting Rail |
|
- | |||||
| 3 | WP489069 | Screw, 8 X 3/8 (3) (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 4 | 8031121 | Control Knob (2) |
|
$ 29.99 | |||||
| 5 | 1186486 | Seal, Hood-large |
|
- | |||||
| 6 | 1160768 | Seal |
|
- | |||||
| 7 | 1168490 | Angle, Top Mounting |
|
- | |||||
| 8 | 1186037 | Frame, Front |
|
- | |||||
| 9 | 1186487 | Seal, Hood-small |
|
- | |||||
| 10 | WP486255 | Nut, Hex 8-32 (Replaces: 486529) |
|
$ 5.82 | |||||
| 11 | 1186155 | Bag, Accessory |
|
- | |||||
| 12 | 1185780 | Escutcheon |
|
- | |||||
| 13 | 1185541 | Louver, Verticle |
|
- | |||||
| 14 | 8011106 | Link, Verticle Louver (2) |
|
- | |||||
| 15 | 1185540 | Cartridge |
|
- | |||||
| 16 | 1185542 | Door, Filter |
|
- | |||||
| 17 | 1186332 | Front, Complete |
|
- | |||||
| 18 | 1185523 | Filter |
|
- | |||||
| 19 | 1186627 | Wire, Ground |
|
- | |||||
| 20 | WP488234 | Screw,8-32x1/4 (Replaces: 488234) |
|
$ 6.37 |
