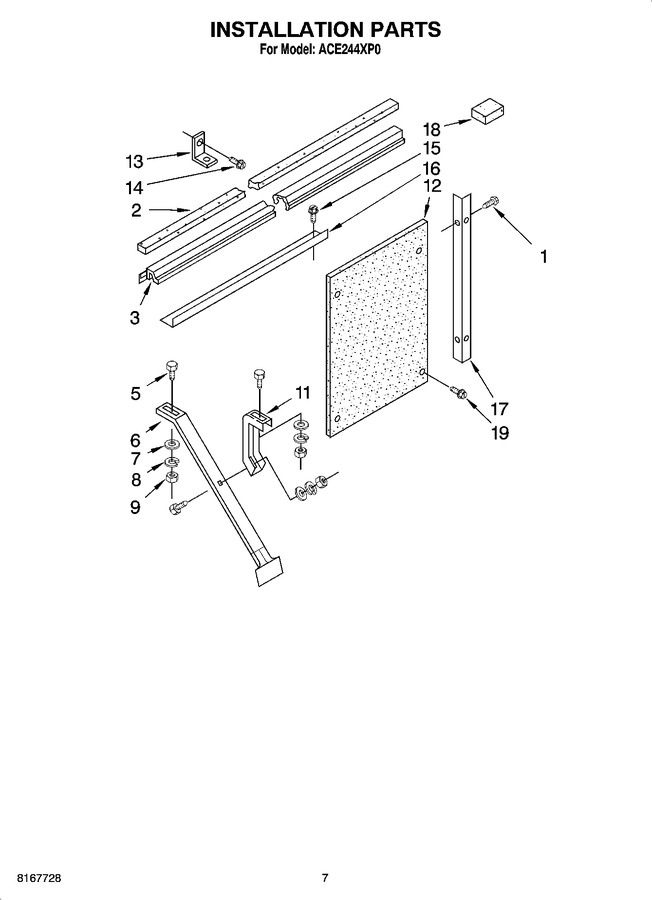

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Unit Parts
02 - Airflow And Control Parts
03 - Cabinet Parts
04 - Optional Parts (not Included)
05 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1159222 | Screw (4) |
|
- | |||||
| 2 | 469877 | Seal, Meeting Rail |
|
- | |||||
| 3 | 1166388 | Gasket, Sash |
|
- | |||||
| 5 | 488750 | Bolt, 1/4 X 3/4 (6) |
|
- | |||||
| 6 | 1185549 | Support, Cabinet (2) |
|
- | |||||
| 7 | 488808 | Washer (6) |
|
- | |||||
| 8 | 486009 | Lockwasher (6) |
|
- | |||||
| 9 | 486035 | Nut, Hex (6) |
|
- | |||||
| 11 | 1168474 | Support, Retainer (2) |
|
- | |||||
| 12 | 1168473 | Board, Filler |
|
- | |||||
| 13 | 644228 | Bracket |
|
- | |||||
| 14 | 487371 | Screw (window Lock Bracket) |
|
- | |||||
| 15 | WP489069 | Screw (top Angles To Cabinet) (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 16 | 1168490 | Angle (top) |
|
- | |||||
| 17 | 1168472 | Angle (2) |
|
- | |||||
| 18 | 995274 | Spacer, Block (4) |
|
- | |||||
| 19 | 1166265 | Screw (side Angle To Filler Board) |
|
- |
