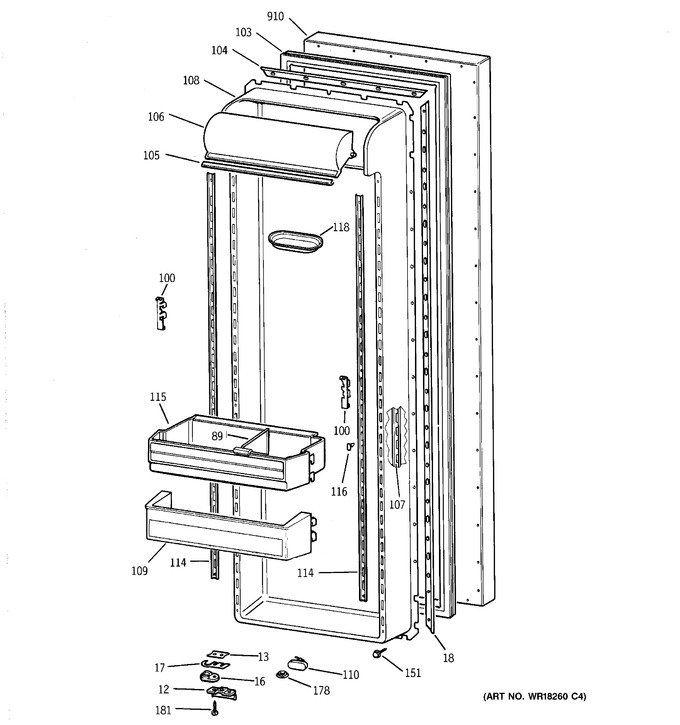

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	WR01F03278		Stop Door Bk   (Replaces: WR2X7213)				$ 14.29
13	WR2X7489		Nutstrip		Appelez-nous	-
13	WG03L01596		Shim Cam Door Stop   (Replaces: WR2X7490)				$ 12.40
16	WG03F00387		Hinge Cam Riser   (Replaces: WR2X7512)			Immediately	$ 10.01
17	WR2X7011		Shim Hinge Btm. .062		Appelez-nous	-
17	WR2X9147		Shim Riser Cam .093		Appelez-nous	-
17	WR2X7491		Shim Riser Cam .031		Appelez-nous	-
18	WR17X2092		Retainer Strip		Appelez-nous	-
89	WR2X7957		Snugger Module		Appelez-nous	-
100	WR2X8409		Hook Module R/s		Appelez-nous	-
100	WR2X8410		Hook Module L/s		Appelez-nous	-
103	WR24X526		Gasket Door Ff Wh		Appelez-nous	-
104	WR17X1168		Retainer Strip		Appelez-nous	-
105	WR38X2067		Trim Dairy Door		Appelez-nous	-
106	WR22X378		Door Dairy		Appelez-nous	-
107	WR72X91		Track Door Inner		Appelez-nous	-
108	WR1X1718		Screw 6-20 Ab Pa 1/2 Ss		Appelez-nous	-
108	WR77X506		Door Inner Ff		Appelez-nous	-
109	WR71X2631		Shelf Door Removable Asm		Appelez-nous	-
110	WR2X8989		Support Twist Bumper		Appelez-nous	-
114	WR72X92		Track Door Shelf		Appelez-nous	-
115	WR71X2629		Shelf Door Module Asm		Appelez-nous	-
116	WR2X7829		Cap Door Track		Appelez-nous	-
118	WR19X37		Dish Butter Glass		Appelez-nous	-
151	WH2X1210		Scr 8-18 B Ihw 1/2 S N		Appelez-nous	-
151	WR1X1554		Screw 8-18 Ab Ihw 9/16 S		Appelez-nous	-
178	WR2X6058		Plug Button(.562"dia.)		Appelez-nous	-
181	WZ06X0105		Screw 10-32 Ma Hx 1 S		Appelez-nous	-
910	WR78X10236		Door Foam Asm Ff Wh		Appelez-nous	-
