SELECT A DIAGRAM

1 - Stainless Steel Parts


2 - Freezer Door


3 - Fresh Food Door


4 - Freezer Section


5 - Fresh Food Section


6 - Fresh Food Shelves


7 - Unit Parts


8 - Icemaker Wr30x0327


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	WR01X10065		Scr 8-18 Ba Por 5/8 Ss		Appelez-nous	-
65	WZ04X0230		Screw 8-15 A Pa 3/8 Ss		Appelez-nous	-
87	WZ04X0241		Scr 8-15 Ab Tr 1/2 Ss		Appelez-nous	-
98	WR1K1		Screw 8-36 T Ihw 3/8 Sn		Appelez-nous	-
98	WR1X1928		Screw		Appelez-nous	-
134	WR01X10019		Scr 6-10 Pl Flp 1/2 S		Appelez-nous	-
153	WR1X1505		Scr Recess Disp 8-18 Ab		Appelez-nous	-
231	WR1X2110		Plug Fastener		Appelez-nous	-
231	WR1X1987		Rivet Plastic Wh		Appelez-nous	-
276	WR1X1510		Grommet Scr		Appelez-nous	-
303	WD1X1440		Housing Terminal		Appelez-nous	-
376	WR23X189		Receptacle-harness		Appelez-nous	-
405	WR14X264		Tape Foam		Appelez-nous	-
556	WH12X497		Housing Terminal		Appelez-nous	-
676	WZ04X0263		Scr 10-16 Ab Hxw 1/2		Appelez-nous	-
680	WR01X10123		Scr 6-19 Hi/lo Hxw 1/2 S		Appelez-nous	-
690	WR1X1466		Scr 8-32 T Hxw 3/8 S		Appelez-nous	-
862	WB1X1178		Screw		Appelez-nous	-
1002	WR97X10012		Door Outer Ss Fz		Appelez-nous	-
1003	WR97X10011		Door Outer Ss Ff		Appelez-nous	-
1004	WR97X10003		Case Panel Left		Appelez-nous	-
1005	WR97X10001		Case Panel Right		Appelez-nous	-
1006	WR12X10280		Handle Door Ss		Appelez-nous	-
1007	WR02X10056		Support Handle Ss		Appelez-nous	-
1008	WR97X10013		Cover Top		Appelez-nous	-
1009	WR17X10129		Insert Top		Appelez-nous	-
1012	WR17X10009		Spacer Rear		Appelez-nous	-
1014	WR01X10147		Screw 8 X 3/8 Phil Ss		Appelez-nous	-
1458	WB17X5062		Terminal Blk Asm (12pin)		Appelez-nous	-

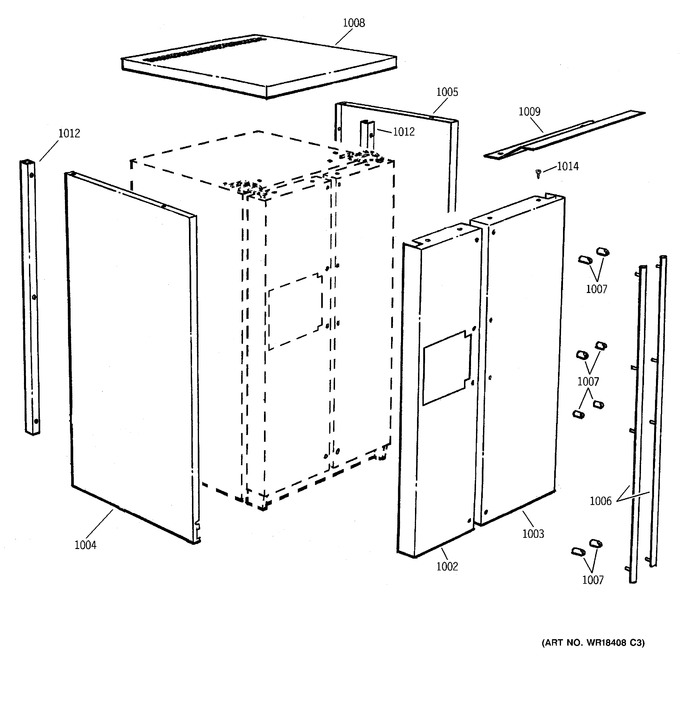

    View Diagram in Separate Window       Print Part List
