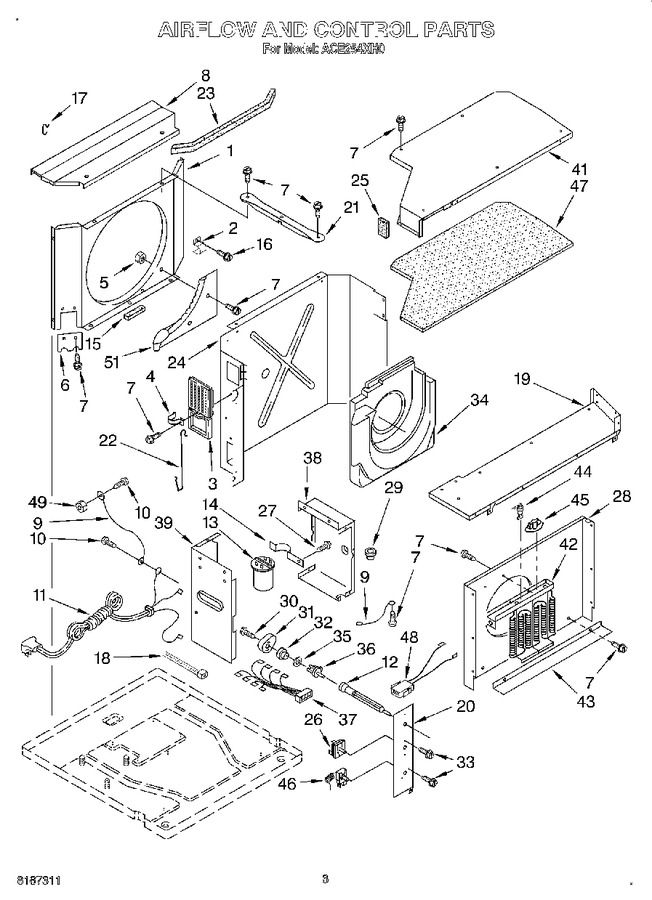

02 - Airflow And Control


03 - Cabinet


04 - Optional


05 - Installation


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1161244		Shroud, Condenser		Appelez-nous	-
2	1161248		Clip, Wet Loop		Appelez-nous	-
3	1160652		Door, Air (2)		Appelez-nous	-
4	1160653		Spring, Door (2)		Appelez-nous	-
5	WP488130		Nut   (Replaces: 1160408)				$ 6.59
6	1161249		Clip, Nylon		Appelez-nous	-
7	WP489069		Screw No.8-3/8   (Replaces: 488480)			Immediately	$ 7.56
8	1157407		Top, Condenser		Appelez-nous	-
9	856094		Wire, Ground		Appelez-nous	-
10	489092		Screw, 8 X 3/8		Appelez-nous	-
11	1167646		Cord, Appliance		Appelez-nous	-
12	1161504		Control, Shaft		Appelez-nous	-
13	1167533		Capacitor		Appelez-nous	-
14	1167611		Bracket, Capacitor		Appelez-nous	-
15	1163332		Seal, Condenstate Cup		Appelez-nous	-
16	WP489069		Screw, 8-3/8 Sg   (Replaces: 1157158)			Immediately	$ 7.56
17	1164511		Clip, Shroud (2)		Appelez-nous	-
18	WPW10339879		Cable, Tie   (Replaces: 1159130)				$ 7.47
19	1168484		Evap. Shroud Top		Appelez-nous	-
20	1165610		Panel, Control		Appelez-nous	-
21	1166169		Support, Unit (2)		Appelez-nous	-
22	1161333		Wire, Control Exhaust		Appelez-nous	-
23	1158732		Seal, Shroud		Appelez-nous	-
24	1161706		Dividing Wall		Appelez-nous	-
25	1162616		Seal, Anti-rub		Appelez-nous	-
26	1167099		Switch Rotary		Appelez-nous	-
27	WP488787		Screw, No.8-5/8 Sg   (Replaces: 488886)				$ 10.13
28	1161705		Shroud Assembly, Evaporator		Appelez-nous	-
29	997285		Cup, Condensate Drain		Appelez-nous	-
30	489092		Screw, 7-18 X 5/8		Appelez-nous	-
31	647882		Cam, Exhaust		Appelez-nous	-
32	647879		Bushing, Shaft		Appelez-nous	-
33	488734		Screw, 6-32 X .175 (2)		Appelez-nous	-
34	1160657		Housing, Air		Appelez-nous	-
35	1161313		Washer		Appelez-nous	-
36	854369		Shaft, Control Exhaust		Appelez-nous	-
37	1167527		Harness, Wiring (control Box)		Appelez-nous	-
38	1161714		Control Box (r.s.)		Appelez-nous	-
39	1164516		Control Box (l.s.)		Appelez-nous	-
41	1168477		Cover, Top		Appelez-nous	-
42	1167326		Element, Heating		Appelez-nous	-
43	1165713		Sheild, Heat		Appelez-nous	-
44	1167330		Fuse, Link		Appelez-nous	-
45	1164407		Switch, Limit		Appelez-nous	-
46	1155801		Control, Temperature		Appelez-nous	-
47	1163758		Insulation, Top Cover		Appelez-nous	-
48	1162061		Harness, Heater		Appelez-nous	-
49	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
51	1160684		Cup, Condensate		Appelez-nous	-
