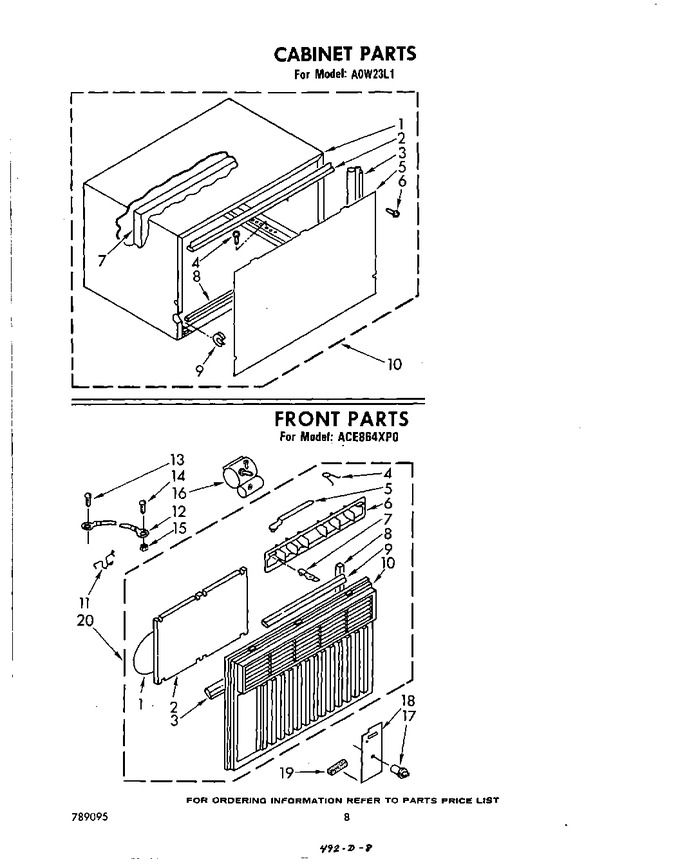

05 - Cabinet , Front


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	853367		Cabinet (requires Insulation No. 649939)		Appelez-nous	-
2	WP854334		Gasket, Top   (Replaces: 853372)				$ 12.55
2	WP854334		Gaskets (bottom)   (Replaces: 853594)				$ 12.55
3	WP854334		Gasket, Sides   (Replaces: 853373)				$ 12.55
4	487371		Screw		Appelez-nous	-
5	853974		Panel, Front		Appelez-nous	-
6	WP487353		Screw   (Replaces: 488374)				$ 7.16
7	649972		Seal, Weather		Appelez-nous	-
8	647854		Seal, Cabinet Bottom		Appelez-nous	-
9	647849		Grommet, Appliance Cable		Appelez-nous	-
10	A0W23W1		Cabinet Assembly		Appelez-nous	-
20	951115		Cabinet, Front Assembl		Appelez-nous	-
A1	476707		Retainer, Filter		Appelez-nous	-
A10	950539		Front, Cabinet		Appelez-nous	-
A11	649966		Clip, Front Mounting (2)		Appelez-nous	-
A12	857017		Wire, Ground		Appelez-nous	-
A13	488854		Screw, 8 X 3/8		Appelez-nous	-
A14	488853		Screw, 8 X 3/8		Appelez-nous	-
A15	WP486255		Nut, Hex   (Replaces: 486529)				$ 5.82
A16	951131		Bag, Accessory		Appelez-nous	-
A17	947264		Knob, Control		Appelez-nous	-
A18	952595		Plate, Escutcheon		Appelez-nous	-
A19	470036		Spacer, Escutcheon Plate		Appelez-nous	-
A2	648008		Filter		Appelez-nous	-
A3	647914		Seal, Cabinet Front		Appelez-nous	-
A4	641484		Spring, Detent (2)				$ 150.14
A5	647799		Link, Vertical Louver (2)		Appelez-nous	-
A6	647798		Louver, Vertical		Appelez-nous	-
A7	644165		Handle, Vertical Louver (2)		Appelez-nous	-
A8	649198		Seal		Appelez-nous	-
A9	WP854334		Seal, Cabinet Front   (Replaces: 647913)				$ 12.55
