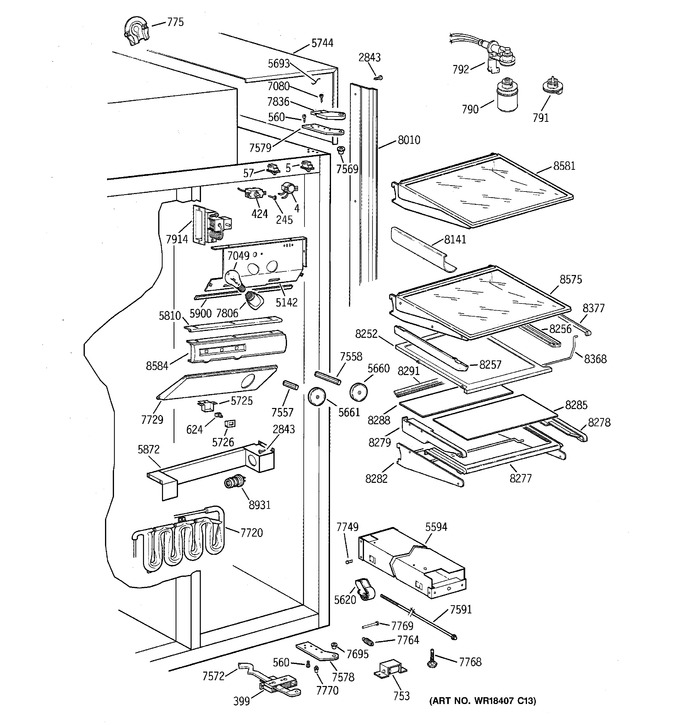

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | WR50X108 | Themodisc |
|
- | |||||
| 5 | WR23X475 | Rocker Sw 200w |
|
- | |||||
| 57 | WR23X192 | Switch-cradle-water Side |
|
- | |||||
| 245 | WR1X5644 | Screw-control |
|
- | |||||
| 399 | WR2X9467 | Closure Ff Door |
|
- | |||||
| 424 | WR9X588 | Control Freezer |
|
- | |||||
| 560 | WR1X1845 | Bolt Hinge |
|
- | |||||
| 624 | WR23X396 | Switch Powersaver |
|
- | |||||
| 753 | WR2X9470 | Front Wheel Asm |
|
- | |||||
| 775 | WR02X10047 | Cover Water Line |
|
- | |||||
| 790 | GXRC | Canister Water Filter |
|
- | |||||
| 791 | WR02X10173 | Filter Plug Asm |
|
- | |||||
| 792 | WR17X10521 | Filter Head & Brkt Asm |
|
- | |||||
| 2843 | WR1X5657 | Screw Case Trim |
|
- | |||||
| 5142 | WR17X10532 | Ff Rear Duct Asm 48 |
|
- | |||||
| 5594 | WR13X671 | Base Asm (rh) |
|
- | |||||
| 5620 | WR2X8377 | Mobility Front Asm |
|
- | |||||
| 5660 | WR2X8600 | Knob Control Fz |
|
- | |||||
| 5661 | WR2X8601 | Knob Control Ff |
|
- | |||||
| 5693 | WR17X3617 | R-hand Baffle W/fg |
|
- | |||||
| 5725 | WR2X8918 | Housing Pss |
|
- | |||||
| 5726 | WR2X8919 | Housing Front Pss |
|
- | |||||
| 5744 | WR17X3448 | Hood Asm |
|
- | |||||
| 5810 | WR14X486 | Ff Control Panel Gasket |
|
- | |||||
| 5872 | WR17X10013 | Ff Lower Light Hsg 48 |
|
- | |||||
| 5900 | WR38X2094 | Edge Trim Ff Rear Duct |
|
- | |||||
| 7049 | PUR LOCAL | Lamp |
|
- | |||||
| 7080 | WR1X1933 | Screw Hinge Cover |
|
- | |||||
| 7557 | WR2X8602 | Shaft Cont Knob Ff |
|
- | |||||
| 7558 | WR2X8603 | Shaft Cont Knob Fz |
|
- | |||||
| 7569 | WR2X8587 | Bushing Top Hinge |
|
- | |||||
| 7572 | WR2X8925 | Actuator Arm Ff |
|
- | |||||
| 7578 | WR13X643 | Hinge Ff Btm |
|
- | |||||
| 7579 | WR13X642 | Hinge Ff Top |
|
- | |||||
| 7591 | WR1X1851 | Base Shaft |
|
- | |||||
| 7695 | WR2X8588 | Bushing Btm Hinge |
|
- | |||||
| 7720 | WR17X3226 | Water Tank |
|
- | |||||
| 7729 | WR17X10533 | Light Shield Ff 48 |
|
- | |||||
| 7749 | WR1X1838 | Bolt Adj Hinge |
|
- | |||||
| 7764 | WR2X8916 | Spring Closure |
|
- | |||||
| 7768 | WR2X7560 | Leveling Leg |
|
- | |||||
| 7769 | WR2X8800 | Axle Rear |
|
- | |||||
| 7770 | WG03F00556 | Stop Door (Replaces: WR13X637) |
|
$ 1,717.19 | |||||
| 7806 | WR2X8928 | Light Socket |
|
- | |||||
| 7836 | WR13X639 | Cover Ff Hinge |
|
- | |||||
| 7914 | WR9X513 | Damper Ff |
|
- | |||||
| 8010 | WR17X3442 | Trim Case Ff Side |
|
- | |||||
| 8141 | WR17X4141 | Wine Rack |
|
- | |||||
| 8252 | WR32X1548 | Quick Shelf |
|
- | |||||
| 8256 | WR72X259 | Quick Shelf Slide (rt) |
|
- | |||||
| 8257 | WR72X258 | Quick Shelf Slide (lt) |
|
- | |||||
| 8277 | WR71X2659 | Quick Space Frame |
|
- | |||||
| 8278 | WR72X260 | Quick Space Slide (rh) |
|
- | |||||
| 8279 | WR72X261 | Quick Space Slide (lh) |
|
- | |||||
| 8282 | WR71X2658 | Quick Space Shelf Cant |
|
- | |||||
| 8285 | WR32X1550 | Quick Space Glass Frame |
|
- | |||||
| 8288 | WR32X1549 | Quick Space Glass Slide |
|
- | |||||
| 8291 | WR2X9415 | Quick Space Reflector |
|
- | |||||
| 8368 | WR2X9428 | Quick Shelf Wire Frame |
|
- | |||||
| 8377 | WR2X9413 | Quick Shelf Link |
|
- | |||||
| 8575 | WR32X1546 | Quick Shelf Glass Encap |
|
- | |||||
| 8581 | WR32X1547 | Encap Glass Shelves |
|
- | |||||
| 8584 | WR17X4274 | Control Panel Ff |
|
- | |||||
| 8931 | WR02X10008 | Lamp Holder Ff |
|
- |
