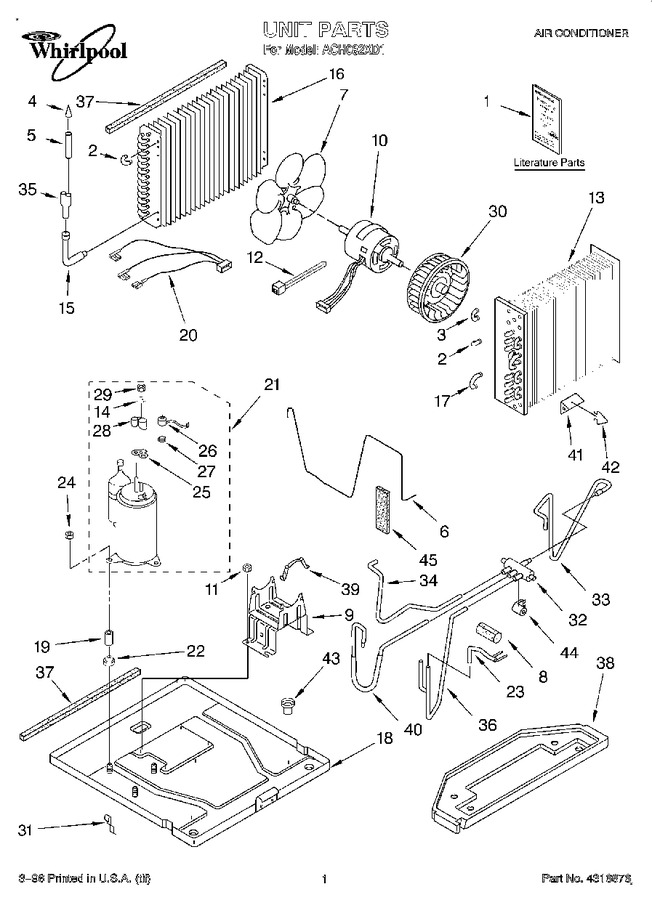

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Unit, Literature
02 - Airflow And Control
03 - Cabinet
04 - Optional Parts
05 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 708532 | Bend, Return Condenser (13) Evaporator (9) |
|
- | |||||
| 3 | 708531 | Bend, Return Evaporator (3) |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 951437 | Tube, Outlet (includes Illus. 4) |
|
- | |||||
| 6 | 1157191 | Tube, Restrictor |
|
- | |||||
| 7 | 1159605 | Blade, Fan (condenser) |
|
- | |||||
| 8 | 1165440 | Seal, Tube |
|
- | |||||
| 9 | 1156961 | Bracket, Fan Motor |
|
- | |||||
| 10 | 1157655 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex (4) (Replaces: 1160408) |
|
$ 6.59 | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 13 | 1158998 | Evaporator |
|
- | |||||
| 14 | 950037 | Gasket, Nut |
|
- | |||||
| 15 | 1155580 | Tube, 90<sspecia>0<r> Connect |
|
- | |||||
| 16 | 1157163 | Condenser |
|
- | |||||
| 17 | 1156329 | Bend, Return (1) |
|
- | |||||
| 18 | 1162623 | Base |
|
- | |||||
| 19 | 858148 | Sleeve, Mtg. |
|
- | |||||
| 20 | 1159851 | Harness, Wiring (compressor Service) |
|
- | |||||
| 21 | 4317916 | Compressor (Replaces: 1158043) |
|
- | |||||
| 22 | 950212 | Grommet (3) |
|
- | |||||
| 23 | 1159925 | Tube, Suction |
|
- | |||||
| 24 | 858121 | Locknut (3) |
|
- | |||||
| 25 | WP950035 | Gasket, Terminal Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 26 | WP1161170 | Overload (Replaces: 1161170) |
|
$ 84.72 | |||||
| 27 | 950032 | Spring, Overload |
|
- | |||||
| 28 | WP950036 | Cover, Terminal (service) (Replaces: 950036) |
|
$ 9.83 | |||||
| 28 | WP950036 | Cover, Terminal (production) (Replaces: 950213) |
|
$ 9.83 | |||||
| 29 | WP950027 | Nut, Terminal Cover (Replaces: 950027) |
|
$ 5.20 | |||||
| 30 | 1163571 | Wheel, Blower (evaporator) |
|
- | |||||
| 31 | 471088 | Clamp, Tube |
|
- | |||||
| 32 | 1165349 | Reversing, Valve |
|
- | |||||
| 33 | 1159638 | Tube, Valve /disc. |
|
- | |||||
| 34 | 1159639 | Tube, Valve/cond. |
|
- | |||||
| 35 | 947364 | Tube, Flow Divider |
|
- | |||||
| 36 | 1163930 | Tube, Valve/ Evap. |
|
- | |||||
| 37 | WP854334 | Seal, Condenser (top) (Replaces: 1157623) |
|
$ 12.55 | |||||
| 37 | 1157622 | Seal, Condenser Bottom |
|
- | |||||
| 38 | 1158519 | Pan, Drain |
|
- | |||||
| 39 | WPY015825 | Clip, Motor (2) (Replaces: 1157015) |
|
$ 22.65 | |||||
| 40 | 1161018 | Tube / Valve To Accum. |
|
- | |||||
| 41 | 1166782 | Anticipator |
|
- | |||||
| 42 | 642080 | Clip, Anticipator |
|
- | |||||
| 43 | 997285 | Cup, Condensate Drain |
|
- | |||||
| 44 | 1159488 | Coil, Solenoid |
|
- | |||||
| 45 | 1162616 | Seal, Anti-rub |
|
- | |||||
| LIT1163225 | Installation Instructions |
|
- | ||||||
| LIT1166572 | Use And Care Guide |
|
- | ||||||
| LIT1159626 | Diagram, Wiring |
|
- | ||||||
| LIT1166564 | Tech Sheet |
|
- |
