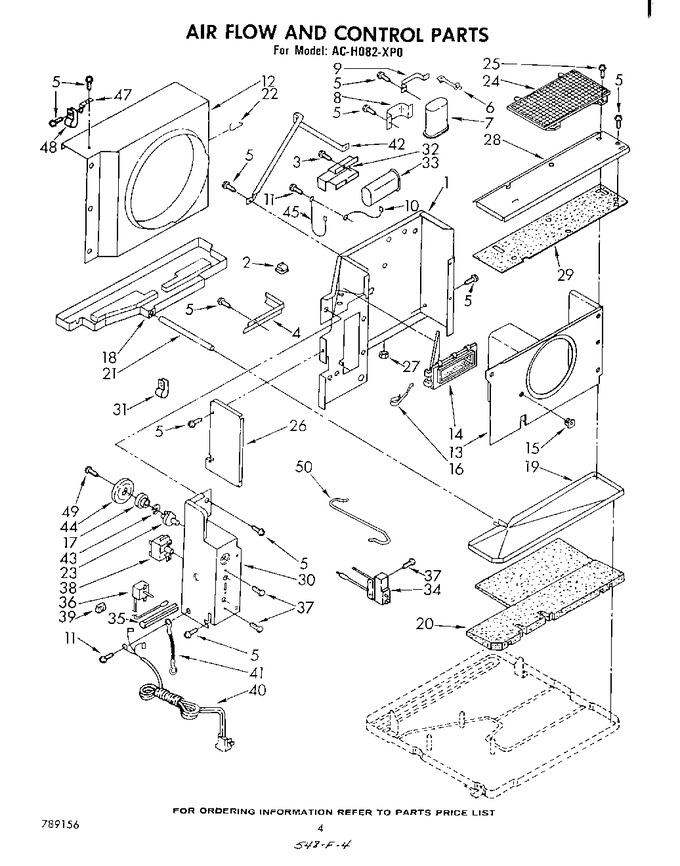

03 - Air Flow And Control Parts


04 - Accessory Kits Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	998003		Wall, Dividing (requires Insulation No. 469938)		Appelez-nous	-
2	465585		Clamp, Capillary (2)		Appelez-nous	-
3	488481		Screw, Sm 10 X 3/8 (repair)		Appelez-nous	-
3	WP488729		Screw, Sm 8 X 3/8 (2)   (Replaces: 488979)			Immediately	$ 7.45
4	852317		Channel, Wiring		Appelez-nous	-
5	WP489069		Screw, Sm 8 X 1/2a   (Replaces: 488480)			Immediately	$ 7.56
6	648791		Clamp, Cable		Appelez-nous	-
7	951444		Capacitor, Running		Appelez-nous	-
8	475844		Bracket, Capacitor		Appelez-nous	-
9	852992		Bracket, Capacitor		Appelez-nous	-
10	948285		Wire, Ground		Appelez-nous	-
11	WPW10141604		Screw, St 8-32 X 3/8   (Replaces: 487871)				$ 7.97
12	647862		Shroud, Condenser		Appelez-nous	-
13	852875		Housing, Wheel		Appelez-nous	-
14	649720		Door, Exhaust		Appelez-nous	-
15	487808		Fastener, Snap (2)		Appelez-nous	-
16	859369		Spring, Door		Appelez-nous	-
17	647879		Bushing, Shaft		Appelez-nous	-
18	852993		Pan, Condensate Condenser		Appelez-nous	-
19	853268		Pan, Condensate Evaporator		Appelez-nous	-
20	853269		Insulation, Pan		Appelez-nous	-
21	49181		Tube, Condensate		Appelez-nous	-
22	647873		Retainer, Shroud		Appelez-nous	-
23	852023		Shaft, Control		Appelez-nous	-
24	997949		Guard, Impeller		Appelez-nous	-
25	WP488729		Screw, Sm 8 X 1/2a   (Replaces: 487910)			Immediately	$ 7.45
26	852994		Wall, Dividing L.s.		Appelez-nous	-
27	649620		Clip, Speed		Appelez-nous	-
28	856957		Cover, Evaporator		Appelez-nous	-
29	948410		Insulation, Cover		Appelez-nous	-
30	951086		Box, Control		Appelez-nous	-
31	947072		Clamp, Wiring		Appelez-nous	-
32	998009		Bracket, Fan Capacitor		Appelez-nous	-
33	950192		Capacitor, Fan Motor		Appelez-nous	-
34	950634		Thermostat, Deicer		Appelez-nous	-
35	475841		Sleeve, Insulation (temp. Control)		Appelez-nous	-
36	853275		Control, Temperature		Appelez-nous	-
37	488734		Screw, Mach 6-32 X .175		Appelez-nous	-
38	950525		Switch, Rotary		Appelez-nous	-
39	647865		Grommet, Wiring		Appelez-nous	-
40	648535		Cable, Appliance		Appelez-nous	-
41	857634		Wire, Ground		Appelez-nous	-
42	852318		Support, Unit		Appelez-nous	-
43	00647881		Washer, Spring   (Replaces: 647881)				$ 366.51
44	647882		Cam, Shaft		Appelez-nous	-
45	998010		Wire, Ground		Appelez-nous	-
47	947321		Bracket, Tube Support		Appelez-nous	-
48	43996		Clamp, Discharge Tube		Appelez-nous	-
49	489092		Screw, 7-18 X 5/8		Appelez-nous	-
50	789156		List, Repair Parts		Appelez-nous	-
50	484069		Cover, Winter				$ 62.49
50	950357		Guide, Use & Care		Appelez-nous	-
50	951455		Sheet, Service Tech (service Information)		Appelez-nous	-
50	951460		Guide, Energy		Appelez-nous	-
50	859370		Wire, Control (red)		Appelez-nous	-
50	647854		Seal, Cabinet Bottom		Appelez-nous	-
50	WP854334		Seal, Cabinet Back (2)   (Replaces: 858839)				$ 12.55
50	950157		Insulation, Cabinet (top)		Appelez-nous	-
50	647847		Insulation, Cabinet R.s.		Appelez-nous	-
50	647848		Insulation, Cabinet L.s.		Appelez-nous	-
50	212643		Sealer, Gum Type (cabinet & Windows)   (Replaces: 470168)			Immediately	$ 86.78
50	WP279368		Cement, Attach Insulation)   (Replaces: 797403)			Immediately	$ 104.81
50	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
50	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
50	47261		Wire, Black (25 Ft.)		Appelez-nous	-
50	47262		Wire, Red, (25 Ft.)		Appelez-nous	-
50	47263		Wire, White (25 Ft.)		Appelez-nous	-
