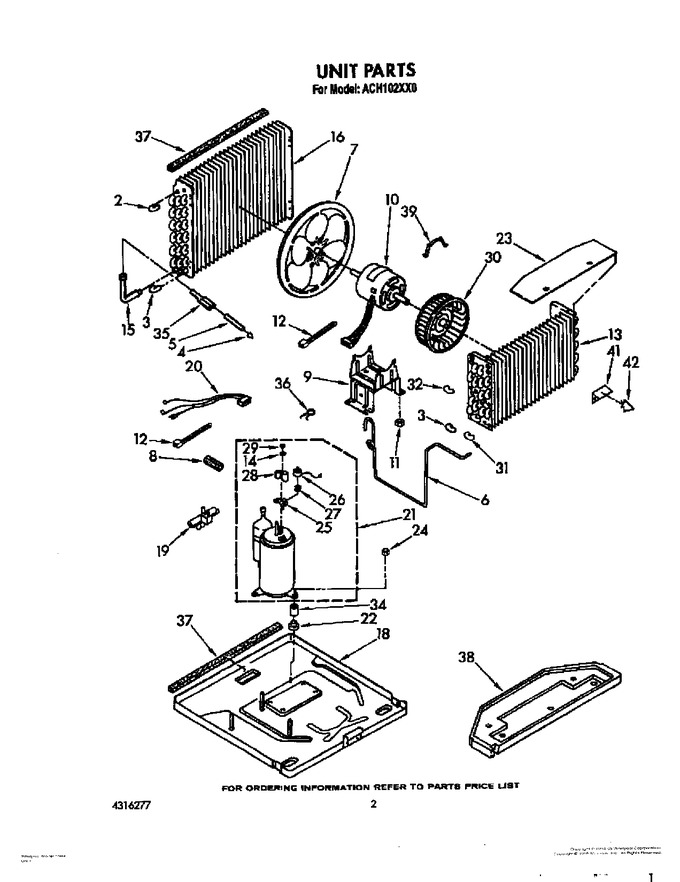

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	708532		Bend, Return Condenser (4) Evaporator (2)		Appelez-nous	-
3	708531		Bend, Return Condenser (16) Evaporator (14)		Appelez-nous	-
4	49599		Strainer, Tube		Appelez-nous	-
5	484230		Tube, Outlet (includes Illus. 4)		Appelez-nous	-
6	1160487		Tube, Restrictor (2)		Appelez-nous	-
7	1159605		Blade, Fan (condenser)		Appelez-nous	-
8	1159284		Seal, Suction Tube		Appelez-nous	-
9	1156961		Bracket, Fan Motor		Appelez-nous	-
10	1157655		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex (4)   (Replaces: 488130)				$ 6.59
12	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
13	1160548		Evaporator		Appelez-nous	-
14	950037		Gasket, Nut		Appelez-nous	-
15	1155580		Tube, 90~ Connect		Appelez-nous	-
16	1160642		Condenser		Appelez-nous	-
18	1157199		Base		Appelez-nous	-
19	1159634		Valve, Reversing		Appelez-nous	-
20	1159851		Harness, Wiring (compressor Service)		Appelez-nous	-
21	819045		Compressor		Appelez-nous	-
22	WP950021		Grommet (3)   (Replaces: 950021)				$ 78.99
23	1157173		Insulation, Evaporator Shroud		Appelez-nous	-
24	858121		Locknut (3)		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
26	951865		Overload		Appelez-nous	-
27	950032		Spring, Overload		Appelez-nous	-
28	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
29	WP950027		Nut, Terminal Cover   (Replaces: 950027)				$ 5.20
30	1156980		Wheel, Blower (evaporator)		Appelez-nous	-
31	1156533		Return Bend (2)		Appelez-nous	-
32	1158407		Return Bend (2)		Appelez-nous	-
34	950020		Sleeve (3)		Appelez-nous	-
35	947364		Tube, Flow Divider		Appelez-nous	-
36	855930		Clamp, Tube (2)		Appelez-nous	-
37	1157622		Seal, Condenser Bottom		Appelez-nous	-
37	WP854334		Seal, Condenser (top)   (Replaces: 1157623)				$ 12.55
38	1158519		Pan, Drain		Appelez-nous	-
39	WPY015825		Clip, Motor (2)   (Replaces: 1157015)				$ 22.65
41	996773		Anticipator		Appelez-nous	-
42	LIT4316277		Literature Parts (list, Repair Parts)		Appelez-nous	-
42	LIT1160377		Instructions, Installation		Appelez-nous	-
42	LIT1160267		Buy Guide		Appelez-nous	-
42	LIT1159922		Use And Care Guide		Appelez-nous	-
42	LIT1160327		Tech Sheet		Appelez-nous	-
42	LIT1159625		Wiring Diagram		Appelez-nous	-
42	475577		Clip, Anticipator		Appelez-nous	-
