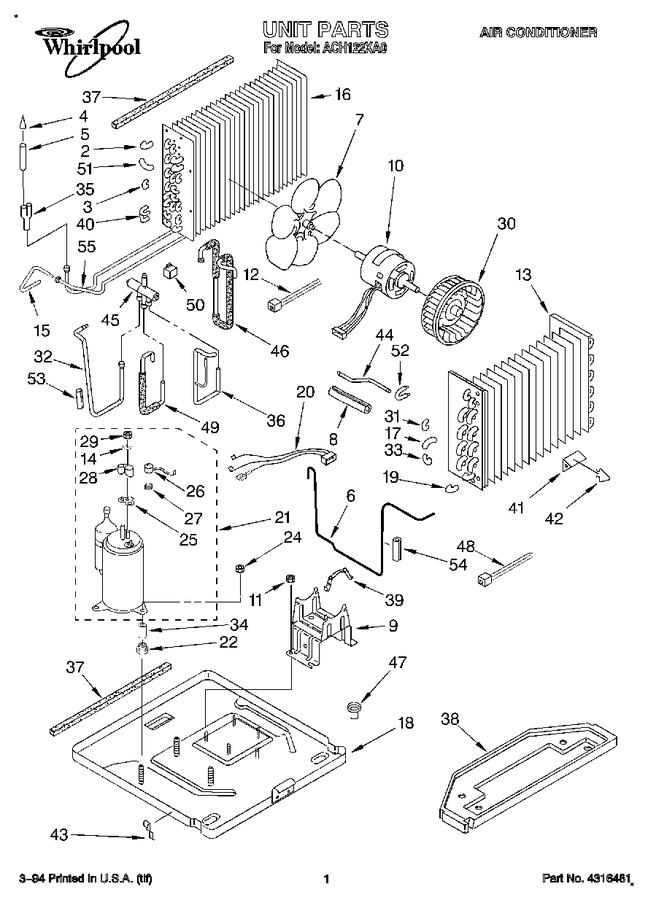

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	708532		Bend, Return Condenser (11)		Appelez-nous	-
3	708531		Bend, Return Condenser (5)		Appelez-nous	-
4	49599		Strainer, Tube		Appelez-nous	-
5	950822		Tube, Outlet (includes Item 4)		Appelez-nous	-
6	1165645		Tube, Restrictor (2)		Appelez-nous	-
7	1159605		Blade, Fan (condenser)		Appelez-nous	-
8	1165440		Seal, Suction Tube		Appelez-nous	-
9	1156961		Bracket, Fan Motor		Appelez-nous	-
10	1157655		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex (4)   (Replaces: 1160408)				$ 6.59
12	WPW10339879		Cable, Tie   (Replaces: 1160803)				$ 7.47
13	1165346		Evaporator		Appelez-nous	-
14	950037		Gasket, Nut		Appelez-nous	-
15	1165644		Tube, Wet Loop Connect		Appelez-nous	-
16	1165345		Condenser		Appelez-nous	-
17	855644		Return Bend (8)		Appelez-nous	-
18	1162621		Base		Appelez-nous	-
19	855457		Return Bend (2)		Appelez-nous	-
20	1159851		Harness, Wiring (compressor Service)		Appelez-nous	-
21	1157102		Compressor		Appelez-nous	-
22	WP950021		Grommet (3)   (Replaces: 950021)				$ 78.99
24	858121		Locknut (3)		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
26	1155007		Overload (production)		Appelez-nous	-
26	1155700		Overload (service)		Appelez-nous	-
27	950032		Spring, Overload		Appelez-nous	-
28	WP950036		Cover, Terminal   (Replaces: 950036)				$ 9.83
29	WP950027		Nut, Terminal Cover   (Replaces: 950027)				$ 5.20
30	1161550		Blower, Wheel		Appelez-nous	-
31	855199		Return Bend (2)		Appelez-nous	-
32	1163713		Tube Assy., Valve To Condenser		Appelez-nous	-
33	854624		Return Bend (8)		Appelez-nous	-
34	950020		Sleeve (3)		Appelez-nous	-
35	1159832		Tube, Flow Divider		Appelez-nous	-
36	1163927		Tube Assy., Valve To Evaporator		Appelez-nous	-
37	WP854334		Seal, Condenser (top)   (Replaces: 1157623)				$ 12.55
37	1157622		Seal, Condenser Bottom		Appelez-nous	-
38	1158519		Pan, Drain		Appelez-nous	-
39	WPY015825		Clip, Motor (2)   (Replaces: 1157015)				$ 22.65
40	1158685		Bend Return Three-way (2)		Appelez-nous	-
41	996773		Anticipator		Appelez-nous	-
42	475577		Clip, Anticipator		Appelez-nous	-
43	471088		Clamp, Tube		Appelez-nous	-
44	1159647		Tube, Suction		Appelez-nous	-
45	1159865		Valve, Reversing		Appelez-nous	-
46	1161015		Tube Assy., Valve To Discharge		Appelez-nous	-
47	997285		Condensate, Drain		Appelez-nous	-
48	WPW10339879		Cable Tie   (Replaces: 857547)				$ 7.47
49	1161016		Tube Assy., Valve To Accumulator		Appelez-nous	-
50	1159488		Coil, Solenoid		Appelez-nous	-
51	1156329		Bend, Return		Appelez-nous	-
52	1159633		Bend Return Three-way		Appelez-nous	-
53	1164619		Dampener, Tube		Appelez-nous	-
54	1162344		Dampener, Tube		Appelez-nous	-
55	1165643		Tube, Wet Loop		Appelez-nous	-
	LIT1159625		Wiring Diagram		Appelez-nous	-
	LIT1159922		Use And Care		Appelez-nous	-
	LIT1160327		Tech Sheet		Appelez-nous	-
	LIT1163225		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
