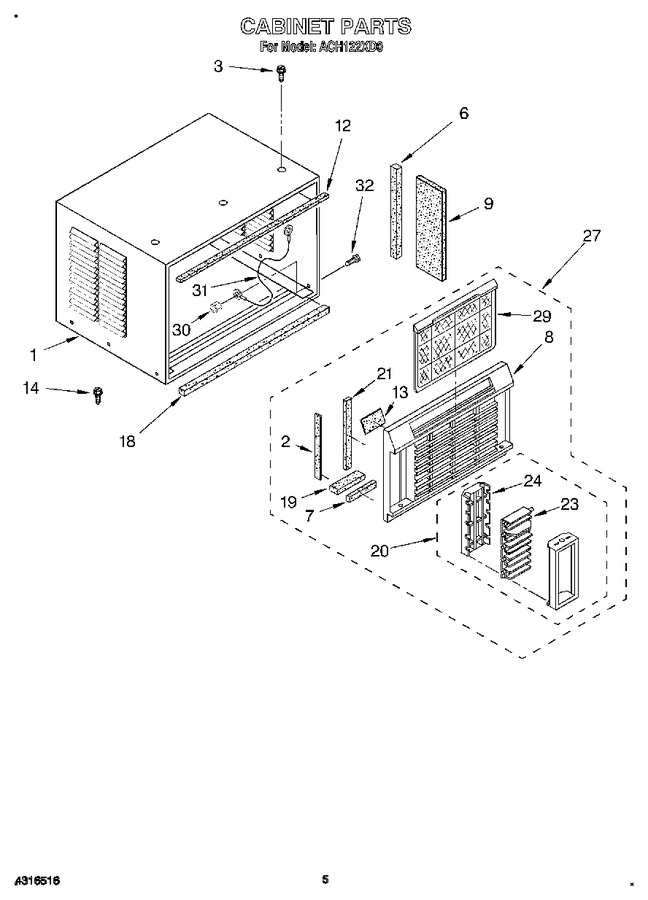

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1163055		Cabinet		Appelez-nous	-
2	1159079		Seal, Front - Sides (2)		Appelez-nous	-
3	WP489069		Screw, 8 X 3/8   (Replaces: 1157158)			Immediately	$ 7.56
6	1159254		Seal, Side (2)		Appelez-nous	-
7	1161746		Seal, (2)		Appelez-nous	-
8	1156971		Cabinet Front		Appelez-nous	-
9	1161748		Insulation, Cabinet Side (2)		Appelez-nous	-
12	1158593		Seal, Cabinet Top		Appelez-nous	-
13	1159081		Seal, Front		Appelez-nous	-
14	487371		Screw, Wood 10 X 3/4		Appelez-nous	-
18	1159289		Seal		Appelez-nous	-
19	1161205		Seal, Front Eps		Appelez-nous	-
20	1156972		Cartridge, Complete		Appelez-nous	-
21	1161747		Seal, Side (2)		Appelez-nous	-
23	1159333		Horizontal Louver		Appelez-nous	-
24	1156975		Ribs, Vertical		Appelez-nous	-
27	1166519		Front, Asy		Appelez-nous	-
29	1166496		Filter				$ 52.49
30	WP486255		Nut, Hex 8-32   (Replaces: 486529)				$ 5.82
31	856094		Wire, Ground		Appelez-nous	-
32	488853		Screw, 8-32 X 3/8		Appelez-nous	-
