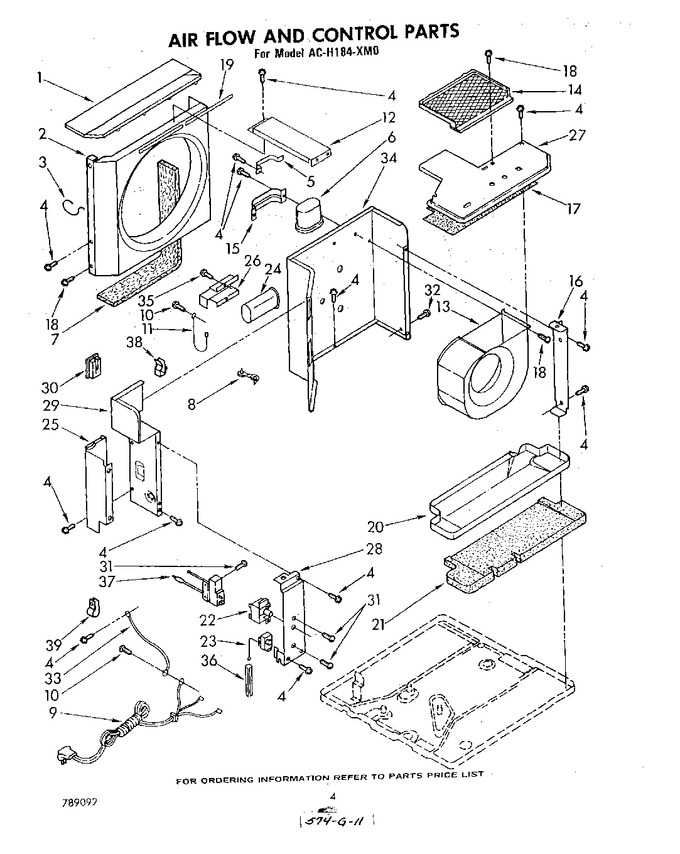

03 - Airflow And Control Parts
04 - Accessory Kit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 997264 | Cover, Condenser Shroud |
|
- | |||||
| 2 | 997224 | Shroud, Condenser |
|
- | |||||
| 3 | 477442 | Clip, Shroud (2) |
|
- | |||||
| 4 | WP489069 | Screw, Sm No.8 X 1/2a (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 4 | WP308685 | Screw (repair) Sm No.10 X 1/2 (Replaces: 488861) |
|
Immediately | $ 7.08 | ||||
| 5 | 852992 | Bracket, Capacitor |
|
- | |||||
| 6 | 947218 | Capacitor, Run |
|
- | |||||
| 7 | 948600 | Seal, Condenser Fin |
|
- | |||||
| 8 | 648791 | Clamp, Cable |
|
- | |||||
| 9 | 648411 | Cable, Appliance |
|
- | |||||
| 10 | WPW10141604 | Screw, 8-32 X 3/8 (Replaces: 487871) |
|
$ 7.97 | |||||
| 11 | 998177 | Wire, Ground (2) |
|
- | |||||
| 12 | 997262 | Support, Unit |
|
- | |||||
| 13 | 997220 | Housing, Blower Wheel |
|
- | |||||
| 14 | 856506 | Guard, Evaporator Impeller |
|
- | |||||
| 15 | 475844 | Bracket, Capacitor (shield) |
|
- | |||||
| 16 | 997239 | Adapter, Evaporator Header Plate |
|
- | |||||
| 17 | 948236 | Insulation, Evaporator Cover |
|
- | |||||
| 18 | WP488729 | Screw, Sm No.8 X 1/2a (Replaces: 487910) |
|
Immediately | $ 7.45 | ||||
| 19 | WP854334 | Rear (Replaces: 997267) |
|
$ 12.55 | |||||
| 19 | 997266 | Seal, Side Condenser |
|
- | |||||
| 20 | 997238 | Pan, Condensate |
|
- | |||||
| 21 | 997237 | Insulation, Pan |
|
- | |||||
| 22 | 950526 | Switch, Rotary |
|
- | |||||
| 23 | 853749 | Control, Temperature |
|
- | |||||
| 24 | 997996 | Capacitor, Fan Motor |
|
- | |||||
| 25 | 997278 | Cover, Control Access |
|
- | |||||
| 26 | 998009 | Bracket, Fan Capacitor |
|
- | |||||
| 27 | 997269 | Cover, Evaporator |
|
- | |||||
| 28 | 852219 | Panel, Control |
|
- | |||||
| 29 | 997342 | Extension, Dividing Wall |
|
- | |||||
| 30 | 948519 | Seal, Tube |
|
- | |||||
| 31 | 488734 | Screw, 6-32 X .175 |
|
- | |||||
| 32 | 488624 | Screw, Sm No.8 X 3/8 |
|
- | |||||
| 33 | 952477 | Wire, Ground |
|
- | |||||
| 34 | 997393 | Wall, Dividing (requires Insulation No. 469938) |
|
- | |||||
| 35 | WP488729 | Screw, S.m. No.8 X 3/8 (2) (Replaces: 488979) |
|
Immediately | $ 7.45 | ||||
| 36 | 476835 | Sleeve, Insulator |
|
- | |||||
| 37 | 950635 | Thermostat, Deicer |
|
- | |||||
| 38 | 471088 | Clamp, Tube (2) |
|
- | |||||
| 39 | 789092 | List, Repair Parts |
|
- | |||||
| 39 | 485426 | Lacquer, Starlight Gray (1/2 Pt. Uncut) |
|
- | |||||
| 39 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 39 | 484069 | Cover, Winter |
|
$ 62.49 | |||||
| 39 | 951058 | Sheet, Service Tech (service Information) |
|
- | |||||
| 39 | 950809 | Guide, Consumer Buy |
|
- | |||||
| 39 | 950357 | Guide, Use & Care |
|
- | |||||
| 39 | 951060 | Guide, Energy |
|
- | |||||
| 39 | 947072 | Clamp, Cable (2) |
|
- | |||||
| 39 | 212643 | Sealer, Gum (cabinet & Windows) (Replaces: 470168) |
|
Immediately | $ 86.78 | ||||
| 39 | 854937 | Insulation, Cabinet (rigth Side) |
|
- | |||||
| 39 | 854938 | Insulation, Cabinet (left Side) |
|
- | |||||
| 39 | 855438 | Insulation, Cabinet (top) |
|
- | |||||
| 39 | 997236 | Insulation, Base |
|
- | |||||
| 39 | WP279368 | Adhesive, To Attach Insulation (1 Oz.) (Replaces: 797403) |
|
Immediately | $ 104.81 | ||||
| 39 | 47261 | Wire, Black (25 Ft.) |
|
- | |||||
| 39 | 47262 | Wire, Red, (25 Ft.) |
|
- | |||||
| 39 | 47263 | Wire, White (25 Ft.) |
|
- |
