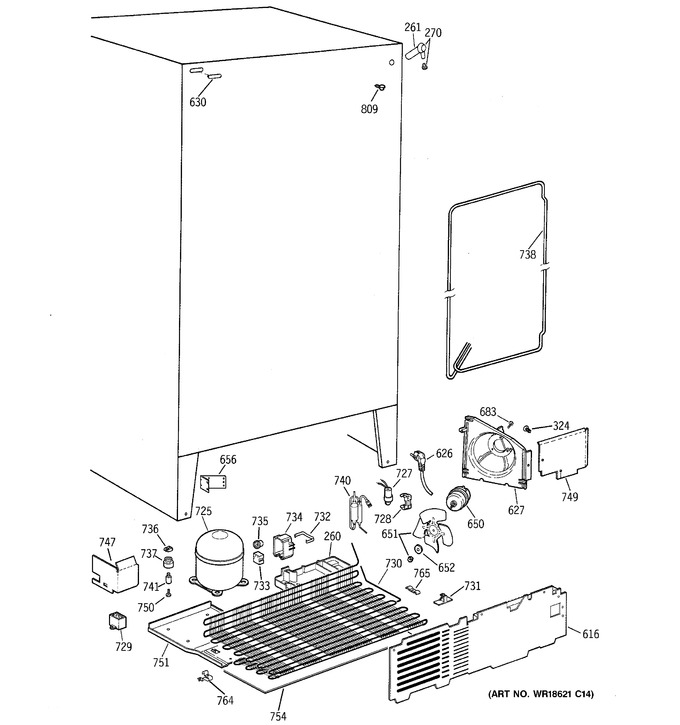

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 260 | WR32X1427 | Pan Water Disposal |
|
- | |||||
| 261 | WR2X6087 | Tube Water Fill |
|
- | |||||
| 270 | WR2X3248 | Plug Button 1/4" Hole |
|
- | |||||
| 270 | WR2X8474 | Grommet Water Fill |
|
- | |||||
| 324 | WR2X7069 | Plug Button Lg Wh |
|
- | |||||
| 324 | WG03F01629 | Plug Button Sm Wh (Replaces: WR2X7051) |
|
$ 4.78 | |||||
| 616 | WR82X10023 | Cover Access Asm |
|
- | |||||
| 626 | WR23X487 | Cord Power Asm |
|
- | |||||
| 627 | WR17X4351 | Housing Leg Asm |
|
- | |||||
| 630 | WR2X4097 | Plug Button Wh |
|
- | |||||
| 650 | WR60X266 | Motor Cond Fan 230v |
|
- | |||||
| 651 | WR60X10002 | Blade Cond Fan Asm |
|
- | |||||
| 651 | WR1X1515 | Nut Locking |
|
- | |||||
| 652 | WR1X1714 | Washer, Cushion |
|
- | |||||
| 656 | WR17X10167 | Bracket Pwr Supply |
|
- | |||||
| 683 | WR1X1825 | Scr 8-32 Tt Pt 3/8 |
|
- | |||||
| 725 | WR87X509 | High Side Asm |
|
- | |||||
| 727 | WR62X10010 | Capacitor Start Asm |
|
- | |||||
| 728 | WR17X10196 | Bracket Capacitor |
|
- | |||||
| 729 | WR62X10005 | Capacitor |
|
- | |||||
| 730 | WR84X10018 | Cond Asm Repl |
|
- | |||||
| 731 | WR02X10069 | Clip Condenser |
|
- | |||||
| 732 | WR2X7226 | Clamp-cover |
|
- | |||||
| 733 | WR7X273 | Relay Ptcr |
|
- | |||||
| 734 | WR2X7834 | Cover Relay |
|
- | |||||
| 735 | WR8X195 | Overload |
|
- | |||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 738 | WR2X7064 | Clip Cond Loop |
|
- | |||||
| 738 | WR84X169 | Tube Cond Loop Asm |
|
- | |||||
| 740 | WG03A03157 | Dryer Bifurcated Xh9 (Replaces: WR86X96) |
|
Immediately | $ 138.06 | ||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 747 | WR17X10427 | Baffle Side Asm |
|
- | |||||
| 749 | WR17X3988 | Baffle Side Disch Asm |
|
- | |||||
| 750 | WR1X1786 | Scr 10-32 Tr T 1/2 |
|
- | |||||
| 751 | WR17X10337 | Plate Comp Mtg Asm |
|
- | |||||
| 754 | WR82X10060 | Floor Complete Asm |
|
- | |||||
| 754 | WR82X10059 | Floor |
|
- | |||||
| 764 | WR2X9000 | Clip, Condenser Mount |
|
- | |||||
| 765 | WR1X1985 | Clip Cond |
|
- | |||||
| 809 | WR1X1936 | Fastener Water Tube |
|
$ 7.35 |
