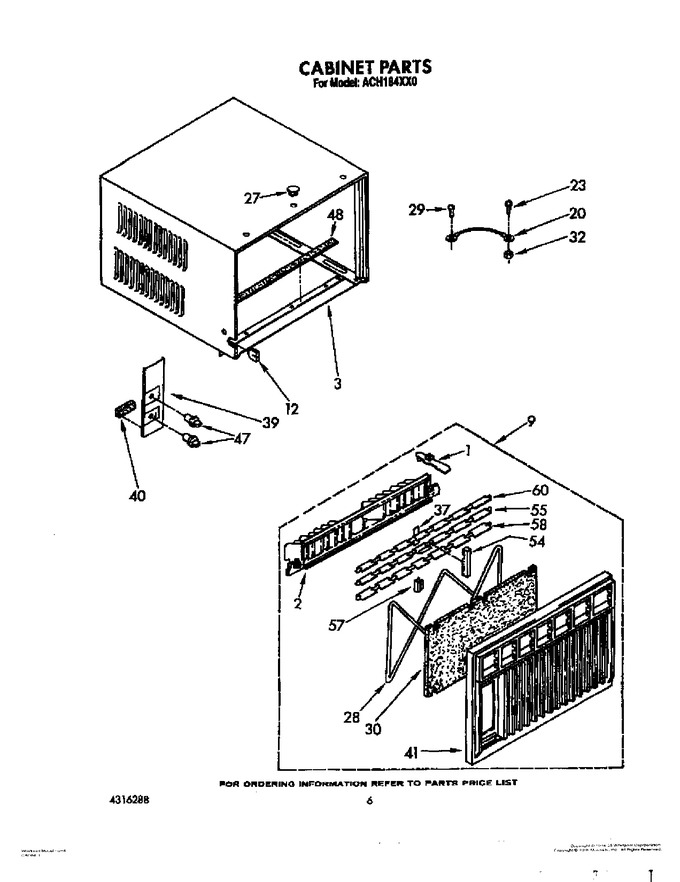

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	852010		Handle, Vertical		Appelez-nous	-
2	649957		Louver, Vertical		Appelez-nous	-
3	1157053		Insulation (3)		Appelez-nous	-
3	1157805		Cabinet Also Order:		Appelez-nous	-
9	951143		Cabinet Front Assembly		Appelez-nous	-
12	647849		Grommet, Wiring		Appelez-nous	-
20	857022		Wire, Ground (base To Cabinet)		Appelez-nous	-
23	488853		Screw, 8-32 X 32		Appelez-nous	-
27	1157126		Cover, Hole (2)		Appelez-nous	-
28	476707		Retainer, Filter		Appelez-nous	-
29	488854		Screw, 8 X 3/8		Appelez-nous	-
30	649958		Filter, Air		Appelez-nous	-
32	WP486255		Nut, No. 8-32   (Replaces: 486529)				$ 5.82
37	855998		Retainer, Horizontal Louver		Appelez-nous	-
39	952551		Plate, Escutcheon		Appelez-nous	-
40	469175		Spacer, Escutcheon Plate (3)		Appelez-nous	-
41	950550		Frame, Front		Appelez-nous	-
47	947264		Knob, Control (2)		Appelez-nous	-
48	1157053		Seal, Cabinet (top)		Appelez-nous	-
48	1157054		Seal, Cabinet (right Side)		Appelez-nous	-
48	1157055		Seal, Cabinet (left Side)		Appelez-nous	-
54	853772		Rack, Horizontal		Appelez-nous	-
55	947267		Handle, Vertical Louver (2)		Appelez-nous	-
57	855999		Clip, Retainer		Appelez-nous	-
58	947268		Louver, Horizontal (notched)		Appelez-nous	-
60	947269		Louver, Horizontal		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
