SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Fresh Food Section

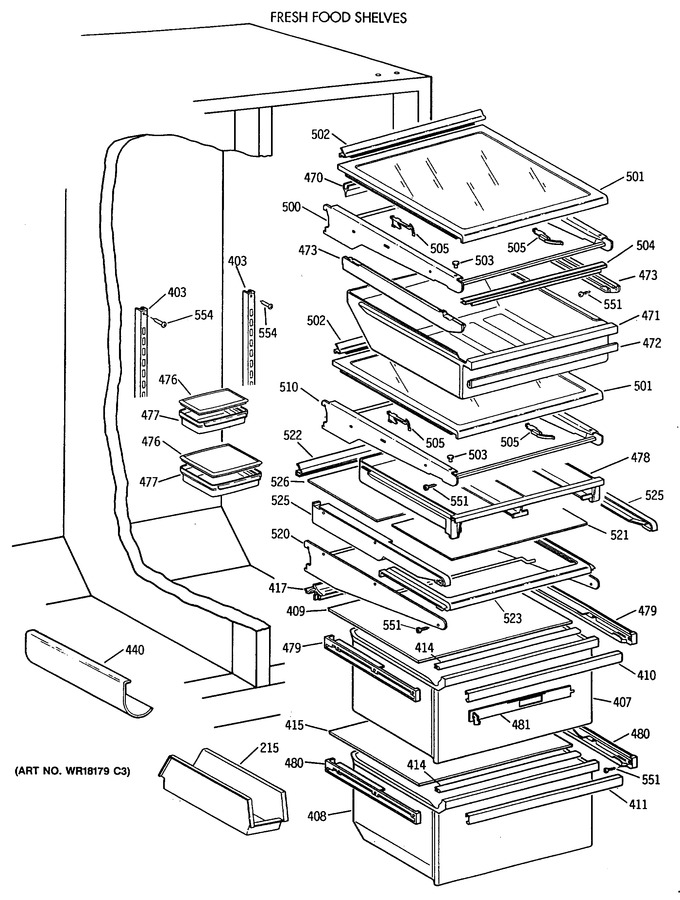

5 - Fresh Food Shelves


6 - Unit Parts


7 - Icemaker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
215	WR32X1435		Bucket Egg		Appelez-nous	-
403	WR72X254		Track Cant Shelf		Appelez-nous	-
407	WR32X1492		Veg Pan Upper		Appelez-nous	-
408	WR32X1493		Veg Pan Lower		Appelez-nous	-
409	WR32X1456		Cover Pan Glass		Appelez-nous	-
410	WR17X4110		Handle Pan		Appelez-nous	-
411	WR17X4111		Handle Veg Pan		Appelez-nous	-
414	WR14X431		Gasket Pan Cover Frt		Appelez-nous	-
415	WR32X1473		Cover Pan Glass		Appelez-nous	-
417	WR14X472		Gasket Cover Lower		Appelez-nous	-
440	WR17X4094		Wine Rack Pack Asm		Appelez-nous	-
470	WR1X1929		Spacer Screw		Appelez-nous	-
470	WR14X420		Gasket Pan		Appelez-nous	-
471	WR32X1339		Pan Snack Clear		Appelez-nous	-
471	WR2X8349		Grommet Scr Closed		Appelez-nous	-
472	WR38X2065		Trim Snack Pan		Appelez-nous	-
473	WR72X210		Slide Pan Rh		Appelez-nous	-
473	WR72X211		Slide Pan Lh		Appelez-nous	-
476	WR2X9357		Cover Snack Dish Lg		Appelez-nous	-
476	WR2X9358		Cover Snack Dish Sm		Appelez-nous	-
477	WR17X4009		Dish Snack Small		Appelez-nous	-
477	WR17X4008		Dish Snack Large		Appelez-nous	-
478	WR71X2516		Tray & Insert Asm		Appelez-nous	-
479	WR01F03334		Slide Asm Lh   (Replaces: WR72X239)				$ 100.56
479	WR01F03335		Slide Asm Rh   (Replaces: WR72X240)				$ 78.51
480	WR72X253		Slide Asm Rh		Appelez-nous	-
481	WR1X2079		Slide Pan Front		Appelez-nous	-
500	WR71X2241		Shelf Cant Spillprf		Appelez-nous	-
501	WR32X1442		Frame Asm Spillprf		Appelez-nous	-
502	WR38X1791		Reflector Spillprf		Appelez-nous	-
503	WR2X8573		Bearing Spillprf		Appelez-nous	-
504	WR14X413		Seal Pan Front		Appelez-nous	-
505	WR2X8574		Shelf Stop Spillprf Rh		Appelez-nous	-
505	WR2X8575		Shelf Stop Spillprf Lh		Appelez-nous	-
510	WR71X2243		Shelf Cant Spillprf Snk		Appelez-nous	-
520	WR71X2246		Shelf Cant Tuckaway		Appelez-nous	-
521	WR32X1503		Shelf Glass Tuckaway		Appelez-nous	-
522	WR38X1792		Reflector Tuckaway		Appelez-nous	-
523	WR71X2494		Shelf Frame Tuckaway		Appelez-nous	-
525	WR72X219		Slide Tuckaway Lh		Appelez-nous	-
525	WR72X218		Slide Tuckaway Rh		Appelez-nous	-
526	WR32X1268		Shelf Glss Tuckaway Rear		Appelez-nous	-
551	WZ04X0244		Screw		Appelez-nous	-
554	WR1X1483		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
