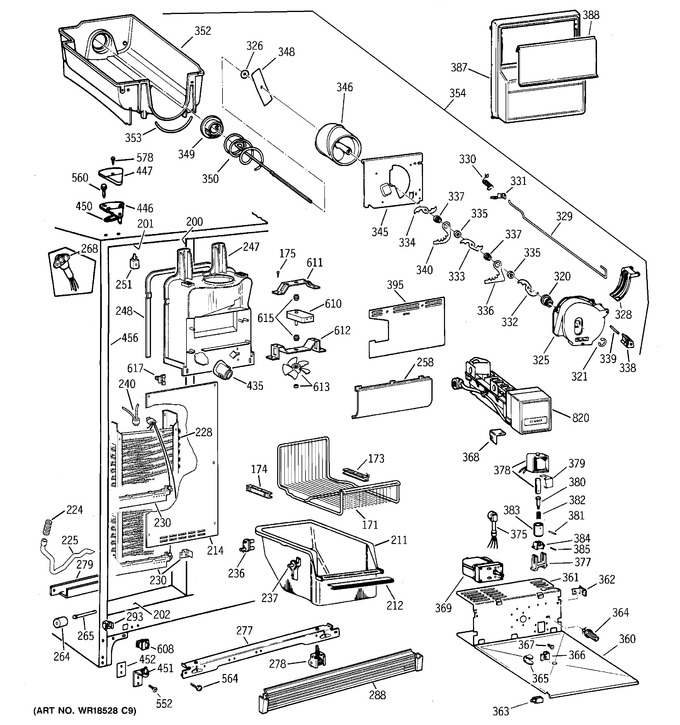

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 171 | WR71X10147 | Basket Wire Slideout Fz |
|
- | |||||
| 173 | WR2X8724 | Support Slide Basket |
|
- | |||||
| 174 | WR2X8667 | Support Slide Basket |
|
- | |||||
| 175 | WR01X10035 | Scr 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 200 | WR40X10030 | Breaker Strip R/s Fz |
|
- | |||||
| 201 | WR40X1731 | Breaker Strip Top Fz |
|
- | |||||
| 202 | WR40X1732 | Breaker Strip Btm Fz |
|
- | |||||
| 211 | WR21X190 | Basket Clear |
|
- | |||||
| 212 | WR17X4040 | Trim Handle Basket Fz |
|
- | |||||
| 214 | WR17X3915 | Cover Evap |
|
- | |||||
| 214 | WR01X10064 | Clip Evap Cover |
|
- | |||||
| 214 | WR14X456 | Gasket Cover Evap |
|
- | |||||
| 224 | WR2X8657 | Grommet Drain Tube |
|
- | |||||
| 225 | WR02X10395 | Tube Drain |
|
- | |||||
| 225 | WR1X5042 | Clamp Hose |
|
- | |||||
| 228 | WR85X309 | Low Side Asm |
|
- | |||||
| 230 | WG03F00020 | Heater Harness Def Asm (Replaces: WR51X10029) |
|
$ 122.66 | |||||
| 230 | WR51X10030 | Heater & Bracket Asm |
|
- | |||||
| 236 | WR2X4548 | Support Basket-rear |
|
- | |||||
| 237 | WR2X7036 | Support Basket-front |
|
- | |||||
| 240 | WG03F02118 | Thermostat Def (Replaces: WR50X122) |
|
Immediately | $ 38.96 | ||||
| 247 | WR17X10226 | Orifice Evap Fan |
|
- | |||||
| 248 | WR14X493 | Foam Strip |
|
- | |||||
| 251 | WR2X2880 | Support Twist |
|
- | |||||
| 258 | WR17X3489 | Shield Light Fz |
|
- | |||||
| 264 | WG03A00502 | Wheel Only Mobility (Replaces: WR2X3594) |
|
$ 17.24 | |||||
| 265 | WR2X4742 | Axle Wheel Rear |
|
- | |||||
| 265 | WR2X3595 | Axle Wheel Front |
|
- | |||||
| 268 | WR23X312 | Im Receptacle |
|
- | |||||
| 277 | WR17X2113 | Rail Machine Mtg. Front |
|
- | |||||
| 278 | WR2X4858 | Wheel Asm Frt |
|
- | |||||
| 279 | WR17X10434 | Rail Mach Mtg Rear |
|
- | |||||
| 288 | WR74X206 | Grille Base Wh |
|
- | |||||
| 293 | WR2X7080 | Clip-o. Case-end Cap |
|
- | |||||
| 320 | WR1X1585 | Nut Auger |
|
- | |||||
| 321 | WR1X1367 | Retainer Ring E |
|
- | |||||
| 325 | WR17X2061 | Housing Crusher Disp |
|
- | |||||
| 326 | WR01A01060 | Washer (Replaces: WR1X1366) |
|
$ 4.20 | |||||
| 328 | WR2X4561 | Spring Ice Deflector |
|
- | |||||
| 328 | WR2X4143 | Pin Deflector Disp |
|
- | |||||
| 328 | WR17X2059 | Deflector Ice Disp |
|
- | |||||
| 329 | WR17X2060 | Wire Actuator Disp |
|
- | |||||
| 330 | WR2X4145 | Spring |
|
- | |||||
| 331 | WR2X4251 | Retainer Actuator Wire |
|
- | |||||
| 332 | WR17X1361 | Blades Moving Disp |
|
- | |||||
| 333 | WR17X1362 | Blades Moving Disp |
|
- | |||||
| 334 | WR17X1363 | Blades Moving Disp |
|
- | |||||
| 335 | WR2X4139 | Spacer |
|
- | |||||
| 336 | WR17X1009 | Blade Stationary Disp |
|
- | |||||
| 337 | WR2X4138 | Spacer Crusher Stationar |
|
- | |||||
| 338 | WR2X4140 | Blade Rest Disp |
|
- | |||||
| 339 | WR2X4141 | Pin Spiral |
|
- | |||||
| 340 | WR17X2058 | Blade Stationary Disp |
|
- | |||||
| 345 | WR17X2062 | Plate Front Disp |
|
- | |||||
| 346 | WR17X4207 | Helix Front Disp |
|
- | |||||
| 348 | WR2X7351 | Blade In Disp |
|
- | |||||
| 349 | WG03L01240 | Cup Drive (Replaces: WR2X4550) |
|
$ 24.78 | |||||
| 350 | WR17X4309 | Auger Helix Disp |
|
- | |||||
| 352 | WR30X256 | Bucket Ice |
|
- | |||||
| 353 | WR2X7905 | Bucket Seal Disp |
|
- | |||||
| 354 | WR17X4312 | Bucket & Auger Asm Disp |
|
- | |||||
| 360 | WR2X4566 | Protector Shelf |
|
- | |||||
| 360 | WR71X2465 | Shelf Bucket Btm Disp |
|
- | |||||
| 361 | WR17X10321 | Cover Motor & Solenoid |
|
- | |||||
| 362 | WR2X8839 | Bracket Shelf |
|
- | |||||
| 363 | WR2X8952 | Support Twist |
|
- | |||||
| 364 | WR2X7310 | Supp0rt Twist |
|
- | |||||
| 365 | WG03F00990 | Drive Auger Dispenser (Replaces: WR2X4854) |
|
$ 91.82 | |||||
| 366 | WR1X1547 | Nut J |
|
- | |||||
| 367 | WR1X1788 | Scr Mtr Mnt 8-18 Tpt 1/4 |
|
- | |||||
| 368 | WR2X8459 | Bracket Im Mtg |
|
- | |||||
| 369 | WR60X202 | Motor Crusher Disp |
|
- | |||||
| 375 | WR23X10055 | Harness Motor Disp |
|
- | |||||
| 377 | WR2X7309 | Saddle Solenoid |
|
- | |||||
| 378 | WR01F00328 | Solenoid Arm Asm (Replaces: WR62X58) |
|
$ 136.63 | |||||
| 379 | WR01F00328 | Shroud Solenoid (Replaces: WR17X1063) |
|
$ 136.63 | |||||
| 380 | WR01F00328 | Plunger Solenoid (Replaces: WR17X1064) |
|
$ 136.63 | |||||
| 381 | WR01F00328 | Pin Spiral (Replaces: WR2X4257) |
|
$ 136.63 | |||||
| 382 | WG03A00097 | Spring Solenoid Linkage (Replaces: WR2X4258) |
|
$ 79.62 | |||||
| 383 | WR01F00328 | Collar Solenoid Disp (Replaces: WR17X1065) |
|
$ 136.63 | |||||
| 384 | WG04F00407 | Stirrup Solenoid Disp (Replaces: WR17X1066) |
|
$ 85.87 | |||||
| 385 | WR01F00328 | Pin Spiral (Replaces: WR2X4259) |
|
$ 136.63 | |||||
| 387 | WR17X10378 | Cover Bucket Asm |
|
- | |||||
| 388 | WR17X10275 | Door Ice Storage Disp |
|
- | |||||
| 395 | WR17X10243 | Shield Fan |
|
- | |||||
| 435 | STD372402 | Lamp 40 W |
|
- | |||||
| 435 | WR01F01775 | Socket & Terminal Asm (Replaces: WR2X9391) |
|
$ 7.51 | |||||
| 446 | WR13X660 | Hinge Top Asm |
|
- | |||||
| 447 | WR2X8824 | Cover Hinge Ff Wh |
|
- | |||||
| 447 | WR2X8825 | Cover Hinge Fz Wh |
|
- | |||||
| 450 | WR2X4194 | Shim Hinge Top |
|
- | |||||
| 451 | WG03L00144 | Hinge Btm Pin & Cam Asm (Replaces: WR13X10020) |
|
Immediately | $ 72.68 | ||||
| 452 | WR2X4497 | Shim Hinge Btm .031 |
|
- | |||||
| 452 | WR2X7011 | Shim Hinge Btm. .062 |
|
- | |||||
| 456 | WR40X1733 | Breaker Strip L/s Fz |
|
- | |||||
| 552 | WR01X10034 | Scr 12-24 Tt Ih .975 S |
|
- | |||||
| 560 | WR1X2140 | Screw |
|
- | |||||
| 564 | WR1X1194 | Scr 1/4 14 Ba Hx 3/4 Sn |
|
- | |||||
| 578 | WZ02X0464 | Screw 8-32 X 3/8 |
|
- | |||||
| 608 | WR01L07654 | Switch Light Wh (Replaces: WR23X368) |
|
$ 27.16 | |||||
| 610 | WR60X10007 | Motor Evap Fan |
|
- | |||||
| 611 | WR02X10100 | Bracket Evap Fan |
|
- | |||||
| 612 | WR02X10101 | Bracket Evap Fan |
|
- | |||||
| 613 | WR2X3198 | Ring Compression |
|
- | |||||
| 613 | WR60X10011 | Blade Evap Fan |
|
- | |||||
| 615 | WG03F00305 | Grommet Evap Fan (Replaces: WR02X10098) |
|
Immediately | $ 6.52 | ||||
| 617 | WR2X8349 | Grommet Scr Closed |
|
- | |||||
| 820 | IM6D | Im Crescent (Replaces: WR30X327) |
|
Immediately | $ 297.77 |
