SELECT A DIAGRAM

01 - Unit Parts

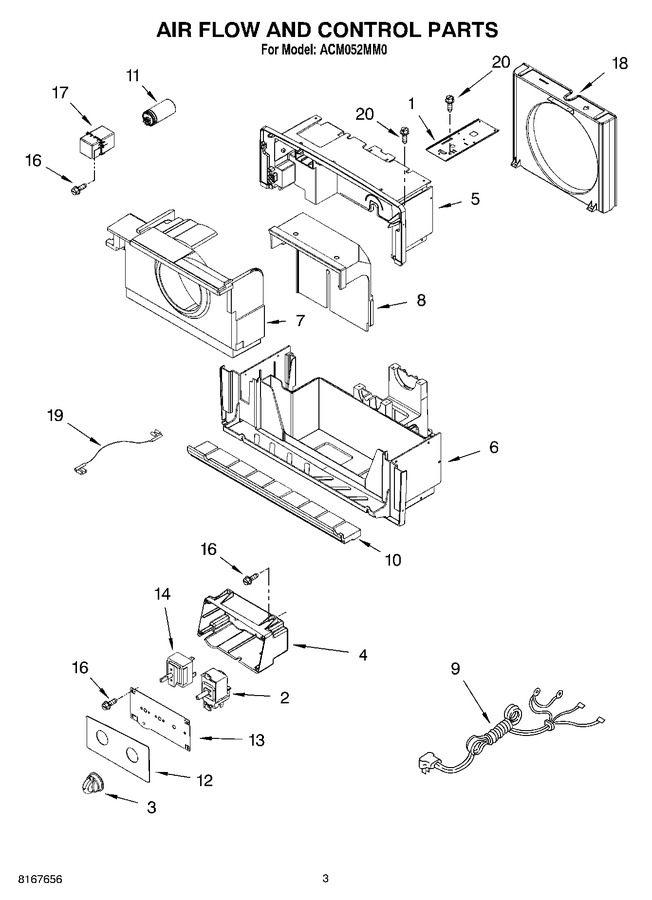

02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8040009		Support, Unit		Appelez-nous	-
2	4312595		Thermostat		Appelez-nous	-
3	4312599		Knob, Rotary				$ 5.02
4	4312604		Control Panel, Rear		Appelez-nous	-
5	4312610		Clamshell, Top		Appelez-nous	-
6	4312611		Clamshell, Bottom		Appelez-nous	-
7	4312613		Air Housing, Bottom		Appelez-nous	-
8	4312614		Air Housing, Top		Appelez-nous	-
9	4312615		Cord, Power		Appelez-nous	-
10	4312616		Insulation, Drain Pan		Appelez-nous	-
11	4312622		Capacitor		Appelez-nous	-
12	4312635		Overlay		Appelez-nous	-
13	4312625		Panel, Control Front		Appelez-nous	-
14	4312632		Switch		Appelez-nous	-
16	1161561		Screw		Appelez-nous	-
17	4312644		Cap, Capacitor		Appelez-nous	-
18	4312645		Shroud, Condenser		Appelez-nous	-
19	4312646		Wire, Jumper		Appelez-nous	-
20	8040200		Screw		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
