1 - Doors
2 - Freezer Section
3 - Fresh Food Section
4 - Unit Parts

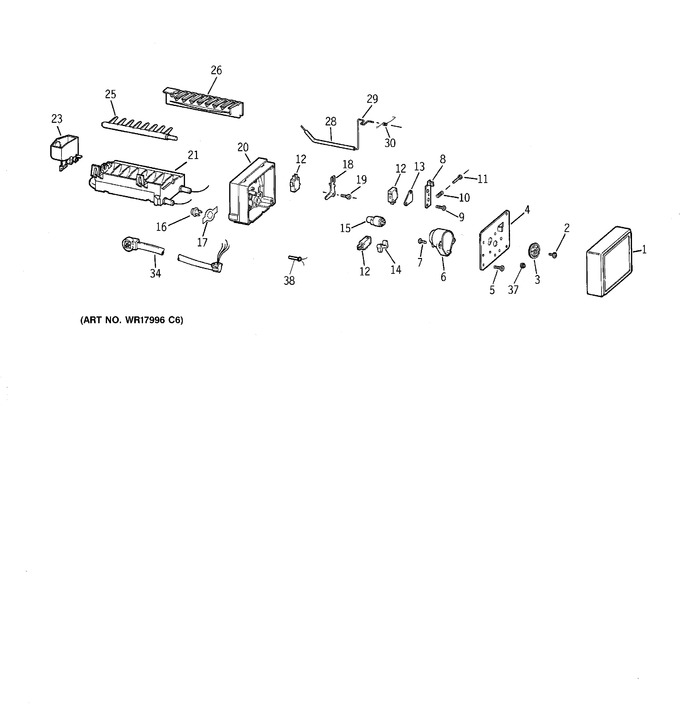

5 - Icemaker Wr30x0318
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WR29X182 | Cover-white |
|
- | |||||
| 2 | WR29X5109 | Screw |
|
- | |||||
| 3 | WR29X5162 | Gear |
|
- | |||||
| 4 | WR29X5163 | Plate-mtg |
|
- | |||||
| 5 | WR29X5112 | Screw-plate To Support |
|
- | |||||
| 6 | WR29X5113 | Motor |
|
- | |||||
| 7 | WR29X5135 | Screw-motor To Plate |
|
- | |||||
| 8 | WR29X5189 | Arm |
|
- | |||||
| 9 | WR29X5140 | Screw Arm To Switch |
|
- | |||||
| 10 | WR29X5190 | Spring |
|
- | |||||
| 11 | WR29X5139 | Screw |
|
- | |||||
| 12 | WR29X5171 | Switch |
|
- | |||||
| 13 | WR29X5188 | Insulator |
|
- | |||||
| 14 | WR29X5186 | Spacer |
|
- | |||||
| 15 | WR29X5167 | Cam |
|
- | |||||
| 16 | WG03F02311 | Thermostat (Replaces: WR29X157) |
|
$ 57.24 | |||||
| 17 | WR29X158 | Clamp Thermostat |
|
- | |||||
| 18 | WR29X5183 | Lever |
|
- | |||||
| 19 | WR29X5122 | Screw-arm |
|
- | |||||
| 20 | WR29X183 | Housing |
|
- | |||||
| 21 | WR29X204 | Mold & Heater Asm |
|
- | |||||
| 23 | WR29X153 | Fill Cup |
|
- | |||||
| 25 | WR29X5174 | Ejector |
|
- | |||||
| 26 | WR29X160 | Stripper |
|
- | |||||
| 28 | WR29X5178 | Sleeve |
|
- | |||||
| 29 | WR29X5179 | Feeler Arm |
|
- | |||||
| 30 | WR29X5181 | Spring-feeler Arm |
|
- | |||||
| 34 | WR29X186 | Wire Harness |
|
- | |||||
| 37 | WR29X5153 | Gear Motor |
|
- | |||||
| 38 | WR29X185 | Thermal Cutoff |
|
- |
