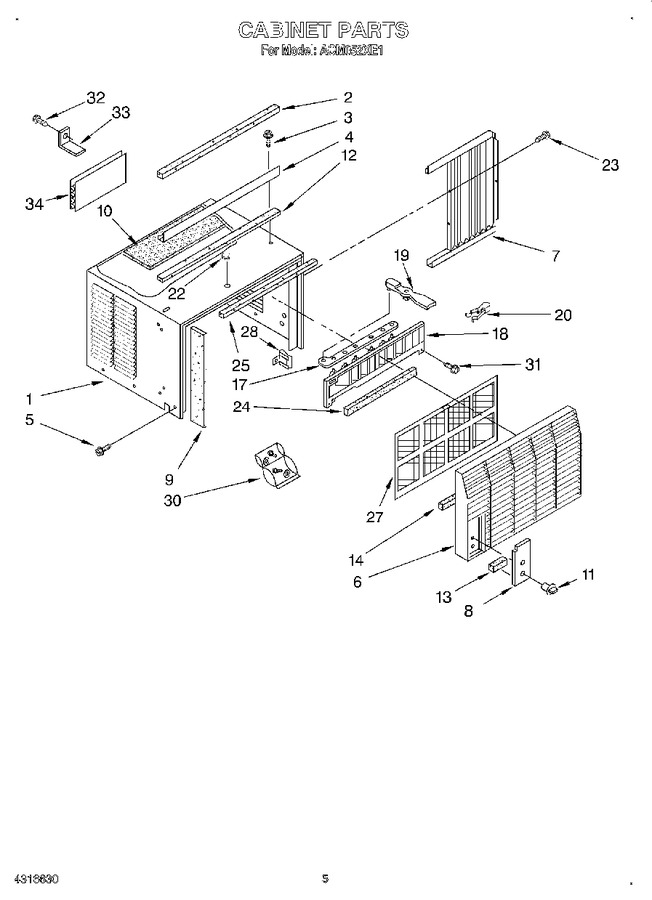

SELECT A DIAGRAM

01 - Unit, Literature


02 - Air Flow And Control


03 - Cabinet


04 - Optional Parts


05 - Installation Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157939		Cabinet		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	WP308685		Screw, 10 X 1/2 (3)   (Replaces: 488720)			Immediately	$ 7.08
4	993849		Channel, Top		Appelez-nous	-
5	WP489069		Screw, St 8-32 X 3/8 (6)   (Replaces: 1157158)			Immediately	$ 7.56
6	1162161		Front, Cabinet Assembly		Appelez-nous	-
7	1162963		Curtain (l.s.)		Appelez-nous	-
7	1162961		Curtain (r.s.)		Appelez-nous	-
8	1167266		Escutcheon		Appelez-nous	-
9	1168285		Insulation, Side		Appelez-nous	-
10	1157942		Insulation, Top		Appelez-nous	-
11	1167617		Knob, Control (2)		Appelez-nous	-
12	856990		Seal, Strip		Appelez-nous	-
13	470036		Spacer		Appelez-nous	-
14	WP854334		Seal, Cabinet Front   (Replaces: 949090)				$ 12.55
17	645684		Link, Louver (2)		Appelez-nous	-
18	1158325		Louver, Vertical		Appelez-nous	-
19	648626		Handle, Louver		Appelez-nous	-
20	641484		Spring, Detent				$ 150.14
22	1157126		Cover, Hole		Appelez-nous	-
23	1161561		Screw 3/8		Appelez-nous	-
24	855238		Seal, Vertical Louver		Appelez-nous	-
25	1159283		Seal		Appelez-nous	-
27	1162158		Filter				$ 43.94
28	1158294		Clip, Vertical Louver		Appelez-nous	-
30	476180		Bag, Accessory		Appelez-nous	-
31	1159222		Screw		Appelez-nous	-
32	488255		Screw, Wood		Appelez-nous	-
33	644228		Bracket, Window Lock		Appelez-nous	-
34	212643		Sealer, Gum Type   (Replaces: 470168)			Immediately	$ 86.78

    View Diagram in Separate Window       Print Part List
