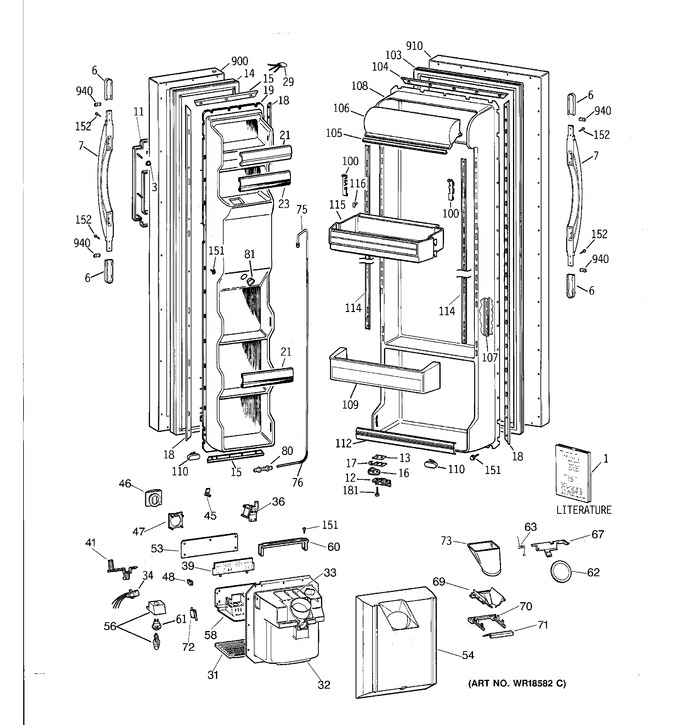

1 - Doors
2 - Freezer Section
3 - Fresh Food Section
4 - Fresh Food Shelves
5 - Unit Parts
6 - Icemaker Wr30x0327
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 39-6428 | Pm Guide Owners Efs |
|
- | |||||
| 1 | 31-51292 | Pm Mini Manual Wiring |
|
- | |||||
| 3 | WR2X8669 | Fastener Tubular |
|
- | |||||
| 6 | WR12X10207 | Tail Handle Sxs Wh |
|
- | |||||
| 7 | WR12X10332 | Handle Sxs Wh |
|
- | |||||
| 11 | WR38X10132 | Trim Recess Disp Wh |
|
- | |||||
| 12 | WG03A00049 | Stop Door Wh (Replaces: WR2X9300) |
|
$ 80.55 | |||||
| 13 | WG03L01596 | Shim Cam Door Stop (Replaces: WR2X7490) |
|
$ 12.40 | |||||
| 14 | WR24X525 | Gasket Door Frz Wh |
|
- | |||||
| 15 | WR17X1167 | Retainer Strip |
|
- | |||||
| 16 | WG03F00083 | Hinge Cam Riser (Replaces: WR02X10140) |
|
$ 11.44 | |||||
| 17 | WR2X7491 | Shim Riser Cam .031 |
|
- | |||||
| 17 | WR2X9147 | Shim Riser Cam .093 |
|
- | |||||
| 18 | WR17X2092 | Retainer Strip |
|
- | |||||
| 19 | WR77X680 | Door Inner Fz |
|
- | |||||
| 21 | WR17X4038 | Front Door Shelf |
|
- | |||||
| 23 | WR17X4039 | Front Door Shelf |
|
- | |||||
| 29 | WR23X10115 | Harness Dr Hinge Fz |
|
- | |||||
| 31 | WR17X4153 | Grille Recess Wh |
|
- | |||||
| 32 | WR17X10190 | Recess Disp Wh |
|
- | |||||
| 33 | WR51X353 | Heater Recess |
|
- | |||||
| 34 | WR23X456 | Harness Light Sw. |
|
- | |||||
| 36 | WR62X78 | Solenoid Asm |
|
- | |||||
| 39 | WR55X129 | Module Time Delay |
|
- | |||||
| 41 | WR17X3493 | Cradle Actuator |
|
- | |||||
| 45 | WR2X8818 | Retainer Recess Door |
|
- | |||||
| 46 | WG03A00194 | Pad Actuator Wh (Replaces: WR2X8704) |
|
$ 15.72 | |||||
| 47 | WR2X8681 | Support Actuator Pad Bk |
|
- | |||||
| 48 | WR2X8696 | Knob Recess Disp Wh |
|
- | |||||
| 53 | WR17X3711 | Nameplate Recess Asm Wh |
|
- | |||||
| 54 | WR17X4254 | Insulation Recess |
|
- | |||||
| 56 | STD372071 | Lamp 7c7 |
|
- | |||||
| 56 | WR2X8686 | Reflector Lamp Socket |
|
- | |||||
| 58 | WR17X4126 | Shield Recess Disp Wh |
|
- | |||||
| 60 | WR2X8685 | Cover Elect |
|
- | |||||
| 61 | WR2X9561 | Socket Lamp E12 |
|
- | |||||
| 62 | WR01L01914 | Door Recess Asm (Replaces: WR17X3093) |
|
$ 58.69 | |||||
| 63 | WR2X8663 | Spring Recess Door |
|
- | |||||
| 67 | WR17X3089 | Crank Door Recess |
|
- | |||||
| 69 | WR17X3095 | Funnel Recess Shield Bk |
|
- | |||||
| 70 | WR2X8954 | Supt. Funnel Guard Wh |
|
- | |||||
| 71 | WR17X10282 | Deflector Ice Bk |
|
- | |||||
| 72 | WG03L00633 | Switch Cradle Actuator (Replaces: WR23X366) |
|
$ 58.69 | |||||
| 73 | WR17X4253 | Chute Ice |
|
- | |||||
| 75 | WR17X3670 | Grommet Tube Asm |
|
- | |||||
| 76 | WR2X8933 | Sleeve Water Line |
|
- | |||||
| 80 | WG03A00026 | Nut & Union Asm (Replaces: WR2X8545) |
|
$ 15.72 | |||||
| 81 | WR1X2077 | Plug Button |
|
- | |||||
| 87 | WZ04X0241 | Scr 8-15 Ab Tr 1/2 Ss |
|
- | |||||
| 98 | WR1K1 | Screw 8-36 T Ihw 3/8 Sn |
|
- | |||||
| 100 | WR2X8409 | Hook Module R/s |
|
- | |||||
| 100 | WR2X8410 | Hook Module L/s |
|
- | |||||
| 103 | WR24X526 | Gasket Door Ff Wh |
|
- | |||||
| 104 | WR17X1168 | Retainer Strip |
|
- | |||||
| 105 | WR38X2259 | Trim Dairy Door |
|
- | |||||
| 106 | WR22X383 | Door Dairy |
|
- | |||||
| 107 | WR72X256 | Track Door Inner |
|
- | |||||
| 108 | WR77X681 | Door Inner Ff |
|
- | |||||
| 108 | WR1X1718 | Screw 6-20 Ab Pa 1/2 Ss |
|
- | |||||
| 109 | WR71X2715 | Shelf Door Removable Asm |
|
- | |||||
| 110 | WR2X8989 | Support Twist Bumper |
|
- | |||||
| 112 | WR17X10466 | Front Door Shelf |
|
- | |||||
| 114 | WR72X257 | Track Door Shelf |
|
- | |||||
| 115 | WR71X2714 | Shelf Door Module Asm |
|
- | |||||
| 116 | WR2X7829 | Cap Door Track |
|
- | |||||
| 134 | WR01X10019 | Scr 6-10 Pl Flp 1/2 S |
|
- | |||||
| 151 | WR1X1554 | Screw 8-18 Ab Ihw 9/16 S |
|
- | |||||
| 152 | WR01A01241 | Scr 8-18 Ab Fltr 5/8 S (Replaces: WR01X10038) |
|
$ 3.57 | |||||
| 153 | WR1X1505 | Scr Recess Disp 8-18 Ab |
|
- | |||||
| 180 | WR1X1966 | Screw 6-32 Pl Ihw 3/8 |
|
- | |||||
| 181 | WR01X10161 | Scr 10-32 Gx Ihxw 13/16s |
|
- | |||||
| 231 | WR1X2110 | Plug Fastener |
|
- | |||||
| 231 | WR1X1987 | Rivet Plastic Wh |
|
- | |||||
| 276 | WR1X1510 | Grommet Scr |
|
- | |||||
| 303 | WD1X1440 | Housing Terminal |
|
- | |||||
| 461 | WZ06X0136 | Scr 8-18 Ab Hxw 1/2 S |
|
- | |||||
| 676 | WZ04X0263 | Scr 10-16 Ab Hxw 1/2 |
|
- | |||||
| 680 | WR01X10123 | Scr 6-19 Hi/lo Hxw 1/2 S |
|
- | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 900 | WR78X10221 | Door Foam Asm Fz Wh |
|
- | |||||
| 910 | WR78X10222 | Door Foam Asm Ff Wh |
|
- | |||||
| 940 | WR02X10124 | Bracket Handle |
|
- | |||||
| 1458 | WB17X5062 | Terminal Blk Asm (12pin) |
|
- |
