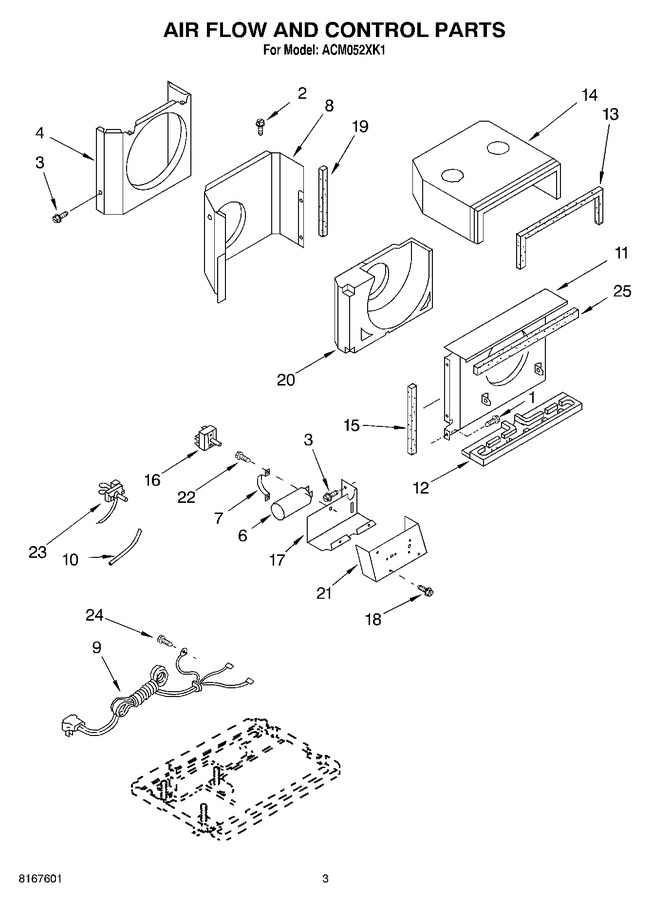

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	488624		Screw		Appelez-nous	-
2	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
3	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
4	8011266		Shroud, Condenser		Appelez-nous	-
6	1162595		Capacitor, Running		Appelez-nous	-
7	1167611		Bracket, Capacitor		Appelez-nous	-
8	8011422		Wall, Dividing		Appelez-nous	-
9	1185493		Cord, Appliance		Appelez-nous	-
10	8011238		Sleeve, Insulator		Appelez-nous	-
11	8011265		Shroud, Evaporator		Appelez-nous	-
12	8011133		Pan, Evaporator		Appelez-nous	-
13	1181735		Seal Hood, Front		Appelez-nous	-
14	8011401		Hood, Air Housing		Appelez-nous	-
15	8011399		Seal, Left Side		Appelez-nous	-
16	8031150		Switch, Rotary				$ 81.25
17	8011188		Box, Control		Appelez-nous	-
18	488734		Screw, 6-32 X .175		Appelez-nous	-
19	WP854334		Seal, Side   (Replaces: 1158850)				$ 12.55
20	8011400		Housing, Air		Appelez-nous	-
21	8031113		Panel, Control		Appelez-nous	-
22	1159222		Screw		Appelez-nous	-
23	8031115		Control, Temp.				$ 131.31
24	1159222		Screw		Appelez-nous	-
25	1158515		Seal		Appelez-nous	-
