SELECT A DIAGRAM

01 - Unit, Literature


02 - Air Flow And Control


03 - Cabinet


04 - Optional

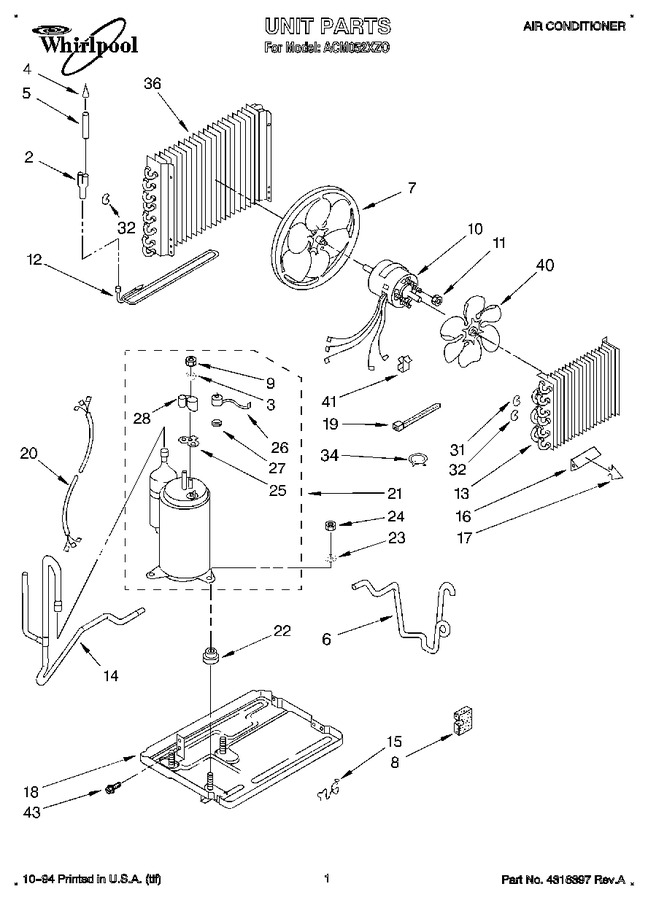

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	947364		Tube, Flow Divider		Appelez-nous	-
3	950037		Nut, Gasket		Appelez-nous	-
4	49599		Strainer		Appelez-nous	-
5	950855		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	1162775		Tube, Restrictor		Appelez-nous	-
7	1158524		Blade, Fan (condenser)		Appelez-nous	-
8	1160617		Sealer, Tube		Appelez-nous	-
9	WP950027		Nut, Hex   (Replaces: 950027)				$ 5.20
10	1160123		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
12	1163963		Tube, Condenser Extension		Appelez-nous	-
13	1161721		Evaporator		Appelez-nous	-
14	1163928		Tube, Suction Asy.		Appelez-nous	-
15	949634		Clip, Front (2)		Appelez-nous	-
16	996773		Anticipator, Temperature		Appelez-nous	-
17	475577		Clip, Anticipator		Appelez-nous	-
18	1157926		Base		Appelez-nous	-
19	WPW10339879		Cable Tie   (Replaces: 857547)				$ 7.47
20	484136		Harness, Wiring		Appelez-nous	-
21	1161178		Compressor		Appelez-nous	-
22	950212		Grommet (3)		Appelez-nous	-
23	489108		Washer (3)		Appelez-nous	-
24	858122		Locknut (3)		Appelez-nous	-
25	1155570		Gasket, Terminal Cover (service)		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover (production)   (Replaces: 950035)				$ 78.01
26	1161179		Overload (production)		Appelez-nous	-
26	1160970		Overload (service)		Appelez-nous	-
27	950032		Spring, Overload (production)		Appelez-nous	-
27	1155568		Spring, Overload (service)		Appelez-nous	-
28	WP950036		Cover, Terminal (production)   (Replaces: 950213)				$ 9.83
28	WP950036		Cover, Terminal (service)   (Replaces: 950036)				$ 9.83
31	708531		Bend, Return Evaporator (3)		Appelez-nous	-
32	708532		Bend, Return Condenser (11) Evaporator (8)		Appelez-nous	-
34	855930		Clamp, Tube		Appelez-nous	-
36	1162776		Condenser		Appelez-nous	-
40	1160094		Fan, Blade (evaporator)		Appelez-nous	-
41	852451		Clamp, Wiring		Appelez-nous	-
43	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
	LIT1159431		Tech Sheet		Appelez-nous	-
	LIT1162804		Guide, Use And Care		Appelez-nous	-
	LIT950222		Wiring Diagram		Appelez-nous	-
	LIT4316397		Repair Parts List		Appelez-nous	-
	LIT1158928		Installation Instructions		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
