SELECT A DIAGRAM

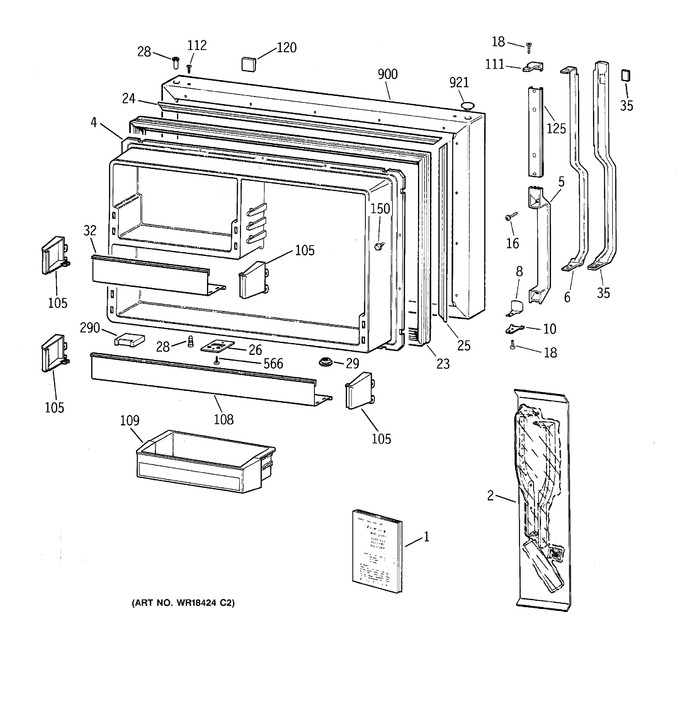

1 - Freezer Door


2 - Fresh Food Door


3 - Cabinet


4 - Shelf Parts


5 - Compartment Separator


6 - Unit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-45886		Pm Mini Manual Wiring		Appelez-nous	-
1	49-60034		Pm Guide Owners		Appelez-nous	-
2	WR12X10097		Pk Handle Asm. Wh 24'		Appelez-nous	-
4	WR77X606		Door Inner Fz		Appelez-nous	-
5	WR12X553		Door Handle		Appelez-nous	-
6	WR12X554		Stiffener Handle Fz		Appelez-nous	-
8	WR2X8089		Shim Handle Wh		Appelez-nous	-
10	WR2X7613		Shim Handle Door		Appelez-nous	-
16	WR1X1724		Screw		Appelez-nous	-
18	WR1X1726		Scr 10-16 Ab 3/4 Ss		Appelez-nous	-
23	WR24X438		Gasket Door Fz Wh		Appelez-nous	-
24	WR17X2136		Retainer Strip H		Appelez-nous	-
25	WR17X2135		Retainer Strip V		Appelez-nous	-
26	WR2X9016		Stop Door		Appelez-nous	-
28	WR02X10111		Thimble Door Plastic		Appelez-nous	-
29	WR2X8087		Plug Button Insert Wh		Appelez-nous	-
32	WR71X10086		Shelf Front Fz Half		Appelez-nous	-
35	WG03F02210		Lens Nameplate   (Replaces: WR04X10020)				$ 24.31
35	WR12X10084		Insert/np Hndl Fz Wh		Appelez-nous	-
105	WR2X8699		Cap Shelf Front Lh		Appelez-nous	-
105	WR2X8700		Cap Shelf Front Rh		Appelez-nous	-
108	WR71X10085		Shelf Front Fz Full				$ 16.10
109	WR71X10087		Shelf Module Asm		Appelez-nous	-
111	WR2X7610		Cap Trim Handle		Appelez-nous	-
112	WR01A00517		Plug Door Rvsbl Wh   (Replaces: WR2X8693)				$ 4.37
120	WR04X10008		Lens Nameplate		Appelez-nous	-
125	WR12X557		Channel Handle		Appelez-nous	-
150	WR1X1791		Scr 8-15 Spec		Appelez-nous	-
290	WR02X10095		Magnet Pad		Appelez-nous	-
566	WR1X1728		Screw		Appelez-nous	-
900	WR78X8759		Door Asm Fz Wh		Appelez-nous	-
921	WR2X7624		Plug Button Wh		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
