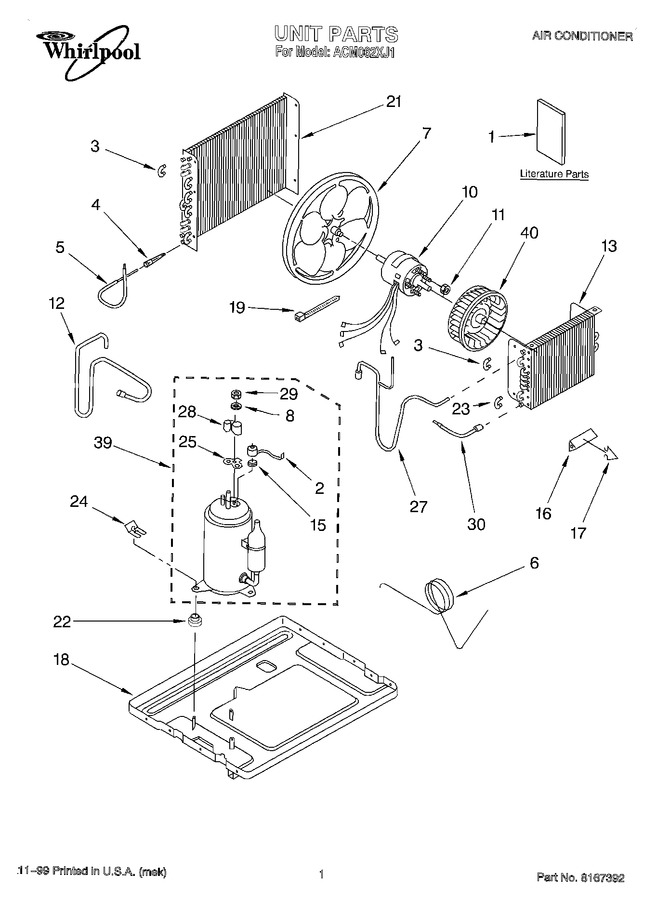

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8011132		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT8031275		Literature Parts (wiring Diagram)		Appelez-nous	-
2	WP1161170		Overload   (Replaces: 951779)				$ 84.72
3	8031222		Bend, Return Evaporator (2) Condenser (6)		Appelez-nous	-
4	WP1162526		Strainer   (Replaces: 1162526)				$ 75.98
5	8011396		Tube, Wet Loop		Appelez-nous	-
6	8011258		Tube, Restrictor		Appelez-nous	-
7	1158524		Blade, Fan		Appelez-nous	-
8	950037		Gasket, Nut		Appelez-nous	-
10	1183375		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
12	8011443		Tube, Discharge		Appelez-nous	-
13	8011317		Evaporator		Appelez-nous	-
15	950032		Spring, Overload		Appelez-nous	-
16	996773		Anticipator		Appelez-nous	-
17	475577		Clip, Anticipator		Appelez-nous	-
18	8011187		Base		Appelez-nous	-
19	WPW10339879		Cable Tie   (Replaces: 857547)				$ 7.47
21	8011210		Condenser		Appelez-nous	-
22	950212		Grommet (3)		Appelez-nous	-
23	8031223		Return, Bend Evaporator (4)		Appelez-nous	-
24	8011446		Clip, Compressor		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
27	8011429		Tube, Suction		Appelez-nous	-
28	WP950036		Cover, Terminal   (Replaces: 950213)				$ 9.83
29	WP950027		Nut, Hex   (Replaces: 950027)				$ 5.20
30	8011208		Tube, Feeder (restrictor)		Appelez-nous	-
39	8011323		Compressor Assembly		Appelez-nous	-
40	8011324		Wheel, Blower		Appelez-nous	-
