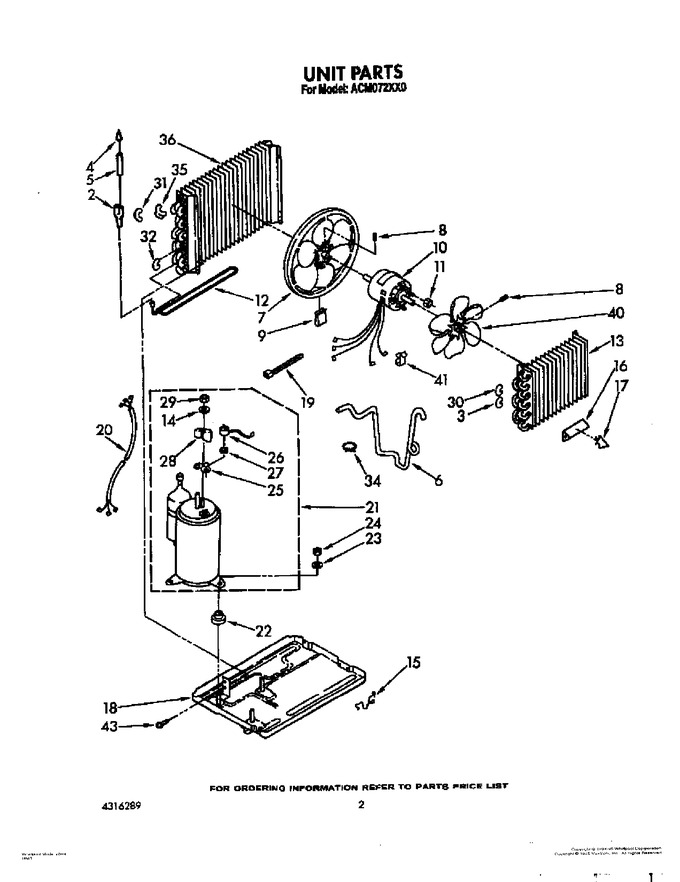

02 - Unit
03 - Air Flow And Control
04 - Cabinet
05 - Installation
06 - Optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 947364 | Tube, Flow Divider |
|
- | |||||
| 3 | 855199 | Bend, Return Evaporator (3) |
|
- | |||||
| 4 | 49599 | Strainer |
|
- | |||||
| 5 | 950850 | Tube & Strainer (includes Illus. 4) |
|
- | |||||
| 6 | 1159366 | Tube, Restrictor |
|
- | |||||
| 7 | 1158524 | Blade, Fan (condenser) |
|
- | |||||
| 8 | WP489069 | Setscrew, 5/16 X 1/4 (Replaces: 489292) |
|
Immediately | $ 7.56 | ||||
| 9 | 1158502 | Clip, Balancing |
|
- | |||||
| 10 | 1159364 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | 1158322 | Tube, Condenser Extension |
|
- | |||||
| 13 | 1159352 | Evaporator |
|
- | |||||
| 14 | 950037 | Gasket, Nut |
|
- | |||||
| 15 | 949634 | Clip, Front (2) |
|
- | |||||
| 16 | 996773 | Anticipator, Temperature |
|
- | |||||
| 17 | 475577 | Clip, Anticipator |
|
- | |||||
| 18 | 1157926 | Base |
|
- | |||||
| 19 | WPW10339879 | Cable Tie (Replaces: 857547) |
|
$ 7.47 | |||||
| 20 | 484136 | Harness, Wiring |
|
- | |||||
| 21 | 4210447 | Compressor |
|
- | |||||
| 22 | 950212 | Grommet (3) |
|
- | |||||
| 23 | 489108 | Washer (3) |
|
- | |||||
| 24 | 858122 | Locknut (3) |
|
- | |||||
| 25 | WP950035 | Gasket, Terminal Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 26 | WP1161170 | Overload (Replaces: 1157040) |
|
$ 84.72 | |||||
| 27 | 950032 | Spring, Overload |
|
- | |||||
| 28 | WP950036 | Cover, Terminal (Replaces: 950213) |
|
$ 9.83 | |||||
| 29 | WP950027 | Nut, Hex (Replaces: 950027) |
|
$ 5.20 | |||||
| 30 | 854624 | Bend, Return Evaporator (8) |
|
- | |||||
| 31 | 708531 | Bend, Return (13) |
|
- | |||||
| 32 | 708532 | Bend, Return (4) |
|
- | |||||
| 34 | 855930 | Clamp, Tube |
|
- | |||||
| 35 | 1157936 | Bend Return Condenser (18) |
|
- | |||||
| 36 | 1159367 | Condenser |
|
- | |||||
| 40 | 1156594 | Fan, Blade Evaporator |
|
- | |||||
| 41 | 852451 | Clamp, Wiring |
|
- | |||||
| 43 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| LIT1159419 | Guide, Use And Care |
|
- | ||||||
| LIT4316289 | Repair Parts List |
|
- | ||||||
| LIT1159373 | Buy Guide |
|
- | ||||||
| LIT1158928 | Installation Instructions |
|
- | ||||||
| LIT950222 | Wiring Diagram |
|
- | ||||||
| LIT1159431 | Tech Sheet |
|
- |
