SELECT A DIAGRAM

01 - Unit, Literature


02 - Air Flow And Control


03 - Cabinet


04 - Optional

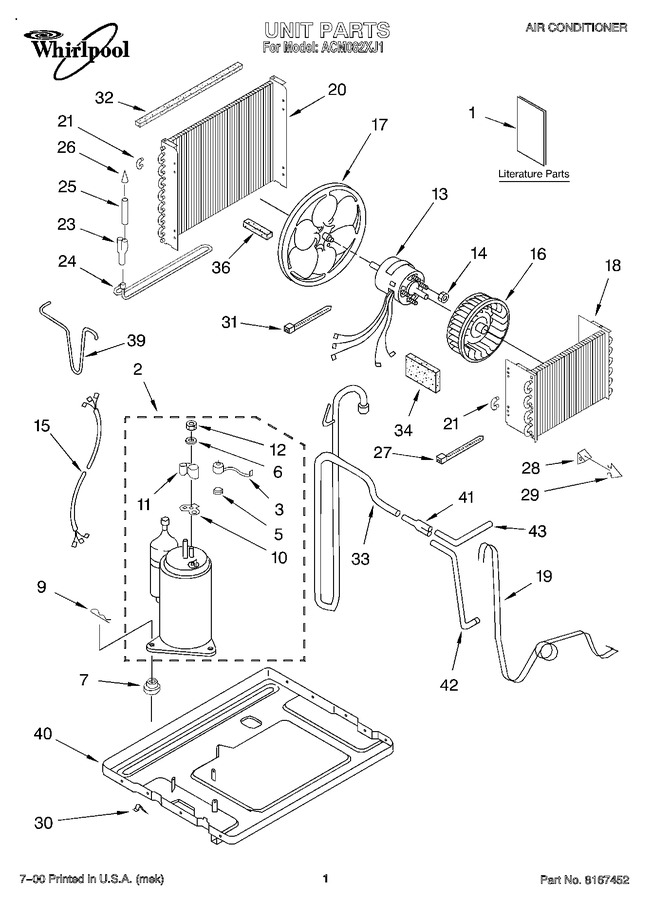

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT8031275		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT8011132		Literature Parts (use & Care Guide)		Appelez-nous	-
1	LIT1182397		Energy Hangtag		Appelez-nous	-
2	4317916		Compressor   (Replaces: 1182525)		Appelez-nous	-
3	1182594		Overload		Appelez-nous	-
5	1182117		Spring, Overload		Appelez-nous	-
6	1182120		Gasket, Nut		Appelez-nous	-
7	950212		Grommet		Appelez-nous	-
9	8011446		Clip, Compressor		Appelez-nous	-
10	1182118		Gasket, Terminal Cover		Appelez-nous	-
11	WP950036		Cover, Terminal   (Replaces: 1182119)				$ 9.83
12	WP950027		Nut, Hex   (Replaces: 950027)				$ 5.20
13	1183432		Motor, Fan		Appelez-nous	-
14	WP488130		Nut, Hex Keps   (Replaces: 488130)				$ 6.59
15	8031578		Harness, Wiring (compressor)		Appelez-nous	-
16	8031154		Wheel, Blower		Appelez-nous	-
17	1156979		Blade, Fan				$ 61.53
18	8031218		Evaporator		Appelez-nous	-
19	8031274		Tube, Restrictor		Appelez-nous	-
20	8031230		Condenser		Appelez-nous	-
21	8031222		Bend, Return Evaporator (4) Condenser (7)		Appelez-nous	-
23	947364		Tube, Flow Divider		Appelez-nous	-
24	8031238		Tube, Wet Loop		Appelez-nous	-
25	951437		Tube, Outlet (includes No. 26)		Appelez-nous	-
26	49599		Strainer, Tube		Appelez-nous	-
27	WPW10339879		Tie, Cable   (Replaces: 602851)				$ 7.47
28	996773		Anticipator, Temperature		Appelez-nous	-
29	475577		Clip, Temperature Anticipator		Appelez-nous	-
30	471088		Clamp, Tube		Appelez-nous	-
31	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
32	1181735		Seal, Condenser Top		Appelez-nous	-
33	8031589		Tube, Suction (includes 41, 42, And 43)		Appelez-nous	-
34	1165440		Insulation, Suction Tube		Appelez-nous	-
36	WP854334		Seal, Condenser Bottom   (Replaces: 859600)				$ 12.55
39	1182593		Tube, Discharge		Appelez-nous	-
40	8031331		Base		Appelez-nous	-
41	1159832		Tube, Flow Divider		Appelez-nous	-
42	8031329		Tube, Outlet (bottom)		Appelez-nous	-
43	8031289		Tube, Outlet (top)		Appelez-nous	-
