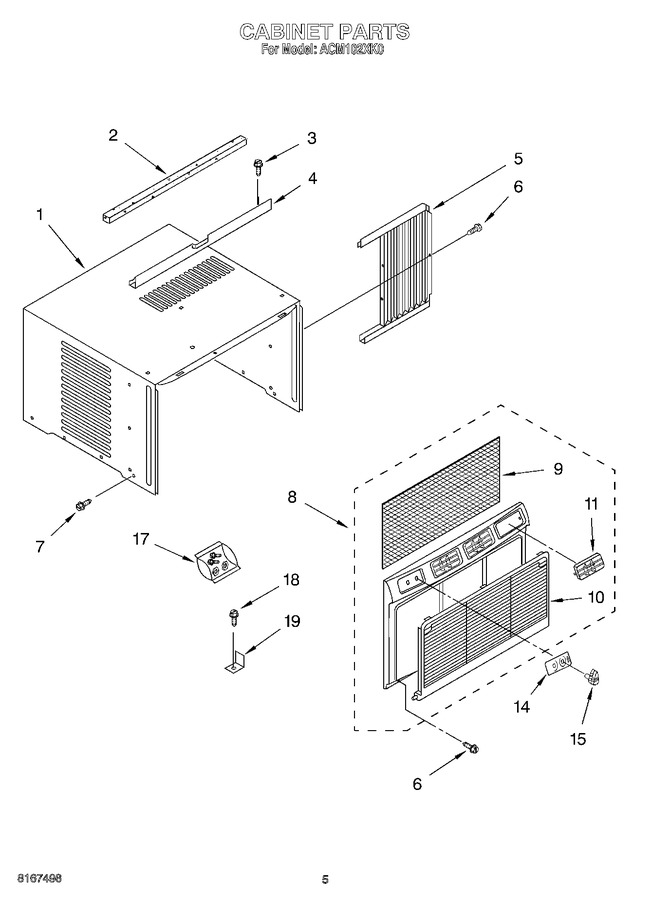

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8031120		Cabinet		Appelez-nous	-
2	469877		Seal, Meeting Rail		Appelez-nous	-
3	WP3390631		Screw 10-16 X .250   (Replaces: 342202)				$ 7.43
4	8031293		Channel, Top		Appelez-nous	-
5	8031304		Curtain ((left Side))		Appelez-nous	-
5	8031303		Curtain ((right Side))		Appelez-nous	-
6	1161561		Screw 8-18 X .375		Appelez-nous	-
7	488624		Screw, 8-15 X .375		Appelez-nous	-
8	8031138		Front		Appelez-nous	-
9	8031292		Filter		Appelez-nous	-
10	8031124		Grille, Front		Appelez-nous	-
11	8031202		Louver Assembly		Appelez-nous	-
14	1184590		Escutcheon		Appelez-nous	-
15	8031121		Knob				$ 29.99
17	476180		Bag, Accessory		Appelez-nous	-
18	488255		Screw, Wood 8-15 X .750		Appelez-nous	-
19	644228		Bracket, Window Lock		Appelez-nous	-
