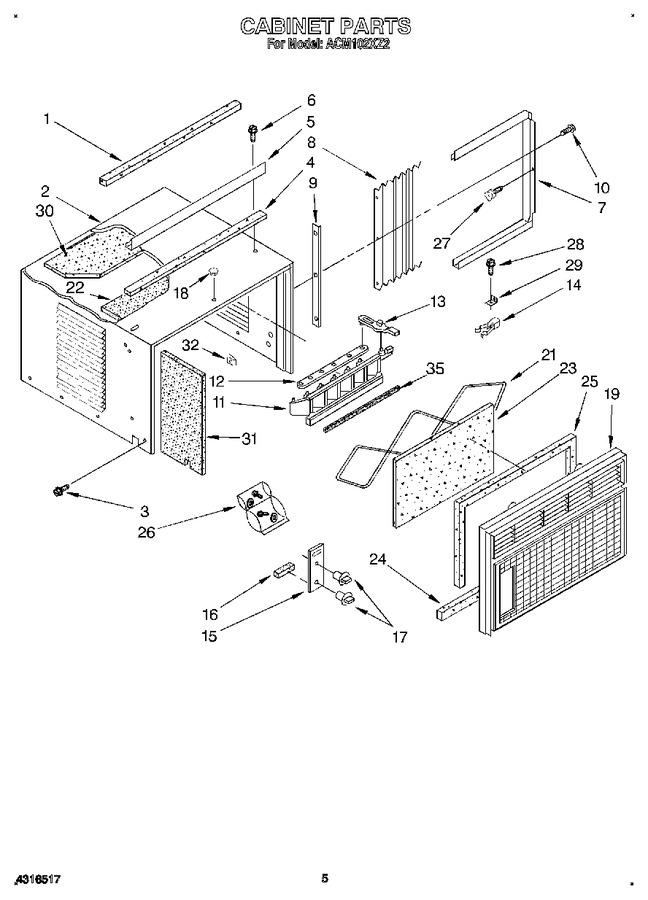

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	469877		Seal, Meeting Rail		Appelez-nous	-
2	1163285		Cabinet		Appelez-nous	-
3	WP489069		Screw, St 8 X 3/8 (8)   (Replaces: 1157158)			Immediately	$ 7.56
4	856989		Strip, Seal		Appelez-nous	-
5	993786		Channel, Top Mounting		Appelez-nous	-
6	WP308685		Screw, Sm No.10 X 1/2ab (3)   (Replaces: 488720)			Immediately	$ 7.08
7	1164155		Housing, Curtain R.s.		Appelez-nous	-
7	1164154		Housing, Curtain L.s.		Appelez-nous	-
8	947160		Curtain (2)		Appelez-nous	-
9	644224		Retainer, Curtain (2)		Appelez-nous	-
10	1161561		Screw 3/8 Sg		Appelez-nous	-
11	641481		Louver, Vertical ((single Handle))		Appelez-nous	-
11	1159980		Louver, Vertical (double Handle)		Appelez-nous	-
12	855158		Link, Vertical Louver ((for Double Handle Louver Assembly))		Appelez-nous	-
12	641482		Link, Vertical Louver ((for Single Handle Louver Assembly))		Appelez-nous	-
13	1161636		Handle, Vertical Louver (for Double Handle Louver Assembly)		Appelez-nous	-
13	641483		Handle, Vertical Louver ((for Single Handle Louver Assembly))		Appelez-nous	-
14	641484		Spring, Detent ((for Single Handle Louver Assembly))				$ 150.14
14	644006		Spring, Detent ((for Double Handle Louver Assembly))		Appelez-nous	-
15	1163639		Plate, Escutcheon		Appelez-nous	-
16	470036		Spacer, Escutcheon Plate (2)		Appelez-nous	-
17	1162671		Knob, Control (2)		Appelez-nous	-
18	1157126		Cover, Hole		Appelez-nous	-
19	1164150		Front, Cabinet (for Single Handle Louver Assembly)		Appelez-nous	-
19	1166098		Front, Cabinet (for Double Handle Louver Assembly)		Appelez-nous	-
21	646963		Retainer, Filter		Appelez-nous	-
22	1163429		Cab. Insul. Top		Appelez-nous	-
23	951039		Filter, Air		Appelez-nous	-
24	1166095		Seal, Cabinet Front		Appelez-nous	-
25	476899		Seal, Strip (top & Sides)		Appelez-nous	-
26	476180		Bag, Accessory		Appelez-nous	-
27	475581		Screw, Thumb (2)		Appelez-nous	-
28	488255		Screw, Round Head Wood No.8 X 3/4 (1)		Appelez-nous	-
29	644228		Bracket, Window Lock		Appelez-nous	-
30	1158501		Cab. Insul.		Appelez-nous	-
31	1163431		Cabinet, Insul. (left, Side)		Appelez-nous	-
31	1163430		Cabinet, Insul. (right Side)		Appelez-nous	-
32	1158294		Clip, Louver (for Mounting Double Handle Louver Assembly, Also Use Screw 1159222)		Appelez-nous	-
32	1156323		Clip, Louver (for Mounting Single Handle Louver Assembly)		Appelez-nous	-
35	855238		Seal (back, Vertical Louver)		Appelez-nous	-
