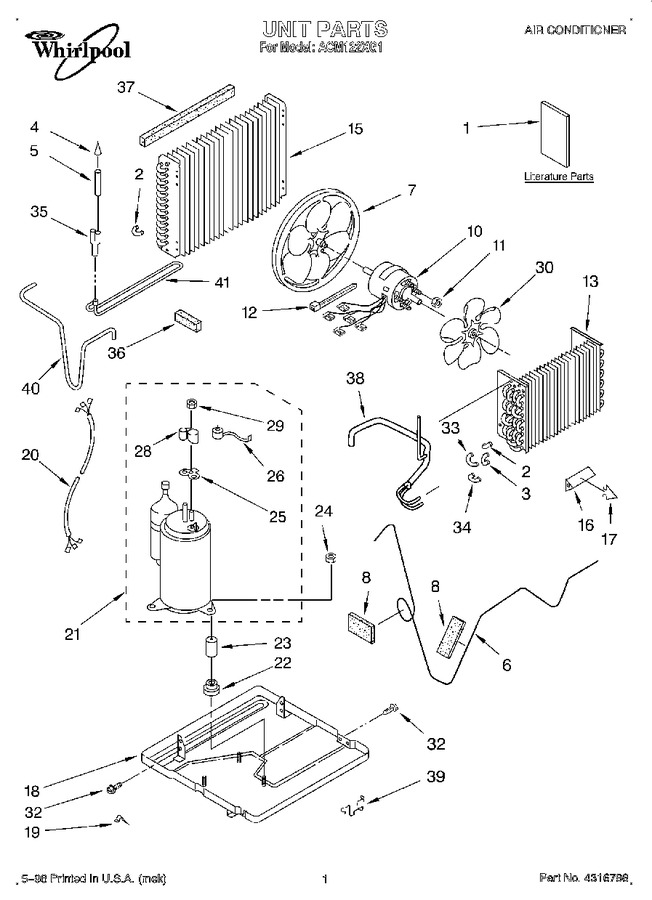

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LIT1165234 | Literature Parts (wiring Diagram) |
|
- | |||||
| 1 | LIT1169347 | Owners Manual |
|
- | |||||
| 1 | LIT1169631 | Tech Sheet |
|
- | |||||
| 2 | 708532 | Bend, Return Condenser (13) Evaporator (2) |
|
- | |||||
| 3 | 708531 | Bend, Return Evaporator (12) |
|
- | |||||
| 4 | 49599 | Strainer, Tube |
|
- | |||||
| 5 | 951437 | Tube, Outlet (includes No. 4) |
|
- | |||||
| 6 | 1156745 | Tube, Restrictor (2) |
|
- | |||||
| 7 | 1161594 | Blade, Fan (condenser) |
|
- | |||||
| 8 | 1162616 | Seal, Anti-rub |
|
- | |||||
| 10 | 1172017 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 13 | 1156743 | Evaporator |
|
- | |||||
| 15 | 1164709 | Condenser |
|
- | |||||
| 16 | 1166782 | Anticipator, Temperature |
|
- | |||||
| 17 | 642080 | Clip, Anticipator |
|
- | |||||
| 18 | 950019 | Base |
|
- | |||||
| 19 | 642684 | Clamp, Restrictor Tube |
|
- | |||||
| 20 | 484136 | Harness, Wiring (compressor Service) |
|
- | |||||
| 21 | 1182157 | Compressor |
|
- | |||||
| 22 | WP950021 | Grommet (3) (Replaces: 950021) |
|
$ 78.99 | |||||
| 23 | 950020 | Sleeve, Mtg (3) |
|
- | |||||
| 24 | 858121 | Locknut (3) |
|
- | |||||
| 25 | 1168449 | Gasket, Terminal Cover |
|
- | |||||
| 26 | 1182158 | Overload |
|
- | |||||
| 28 | 1182200 | Cover, Terminal |
|
- | |||||
| 29 | 1168451 | Nut, Terminal Cover |
|
- | |||||
| 30 | 1160946 | Blade, Fan (evaporator) |
|
- | |||||
| 32 | 488481 | Screw (oversized) |
|
- | |||||
| 32 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 33 | 1158407 | Bend, Return (2) |
|
- | |||||
| 34 | 1156533 | Bend, Return (2) |
|
- | |||||
| 35 | 1162071 | Tube, Flow Divider |
|
- | |||||
| 36 | WP854334 | Seal, Condenser Bottom (2) (Replaces: 859600) |
|
$ 12.55 | |||||
| 37 | 948090 | Seal, Condenser Top |
|
- | |||||
| 38 | 1182166 | Tube, Suction |
|
- | |||||
| 39 | 949634 | Clip (2) |
|
- | |||||
| 40 | 1182169 | Tube, Discharge |
|
- | |||||
| 41 | 1182032 | Tube, Wet Loop (includes Items 4, 5, & 35) |
|
- |
