SELECT A DIAGRAM

01 - Unit Parts


02 - Air Flow And Control Parts

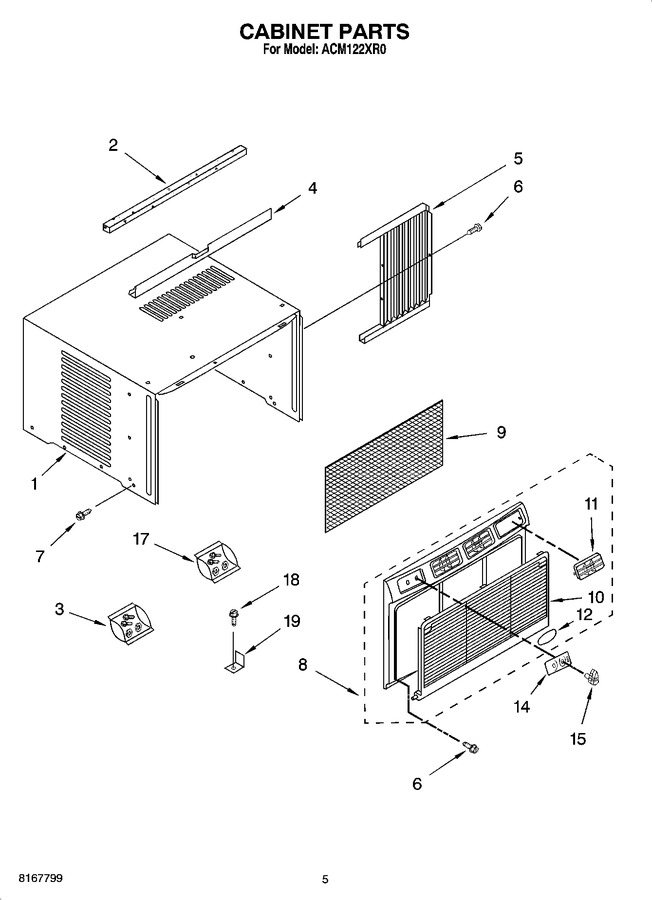

03 - Cabinet Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8031120		Cabinet		Appelez-nous	-
2	469877		Seal, Meeting Rail		Appelez-nous	-
3	1185948		Bag, Accessory (for Curtains)		Appelez-nous	-
4	8031293		Channel, Top		Appelez-nous	-
5	8031303		Curtain ((right Side))		Appelez-nous	-
5	8031304		Curtain ((left Side))		Appelez-nous	-
6	W10491985		Screw, 8-18 X 1/4   (Replaces: 3196160)			Immediately	$ 6.80
7	488624		Screw, 8-15 X 3/8		Appelez-nous	-
8	1187323		Front		Appelez-nous	-
9	8031292		Filter		Appelez-nous	-
10	1187325		Grille, Front		Appelez-nous	-
11	8031202		Louver Assembly		Appelez-nous	-
12	1187171		Nameplate		Appelez-nous	-
14	1184590		Escutcheon		Appelez-nous	-
15	8031121		Knob				$ 29.99
17	476180		Bag, Accessory		Appelez-nous	-
18	488255		Screw, Wood 8-15 X 3/4		Appelez-nous	-
19	644228		Bracket, Window Lock		Appelez-nous	-
