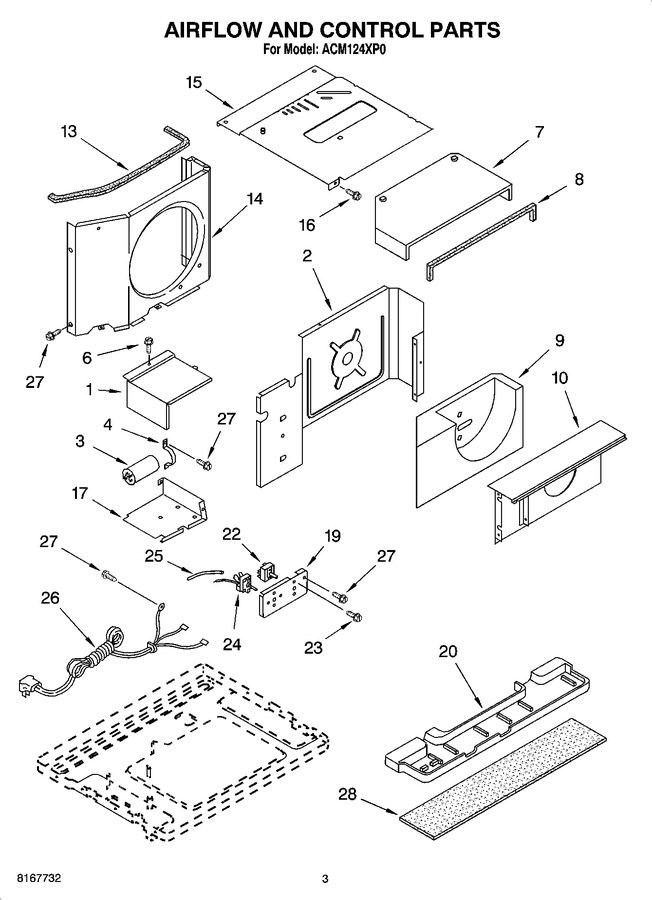

02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1186665		Cover, Control Box		Appelez-nous	-
2	8031104		Wall, Dividing		Appelez-nous	-
3	1187481		Capacitor, Running		Appelez-nous	-
4	1167611		Bracket, Running Capacitor		Appelez-nous	-
6	1161561		Screw		Appelez-nous	-
7	8031570		Hood, Air Housing		Appelez-nous	-
8	WP854334		Seal, Hood   (Replaces: 1180698)				$ 12.55
9	8031587		Housing, Air		Appelez-nous	-
10	8031479		Shroud, Evaporator		Appelez-nous	-
13	8031312		Seal, Condenser Shroud		Appelez-nous	-
14	8031110		Shroud, Condenser		Appelez-nous	-
15	1186766		Cover, Unit		Appelez-nous	-
16	488624		Screw, 8-15 X .375		Appelez-nous	-
17	8031200		Box, Control		Appelez-nous	-
19	8031311		Panel, Control		Appelez-nous	-
20	8031111		Pan, Drain		Appelez-nous	-
22	8031150		Switch, Rotary				$ 81.25
23	488734		Screw, Machine 6-32 X .175 (4)		Appelez-nous	-
24	8031115		Thermostat				$ 131.31
25	8011238		Sleeve, Insulator		Appelez-nous	-
26	1186583		Cable, Appliance		Appelez-nous	-
27	1159222		Screw 8-18 X .295		Appelez-nous	-
28	8031480		Insulation, Drain Pan		Appelez-nous	-
