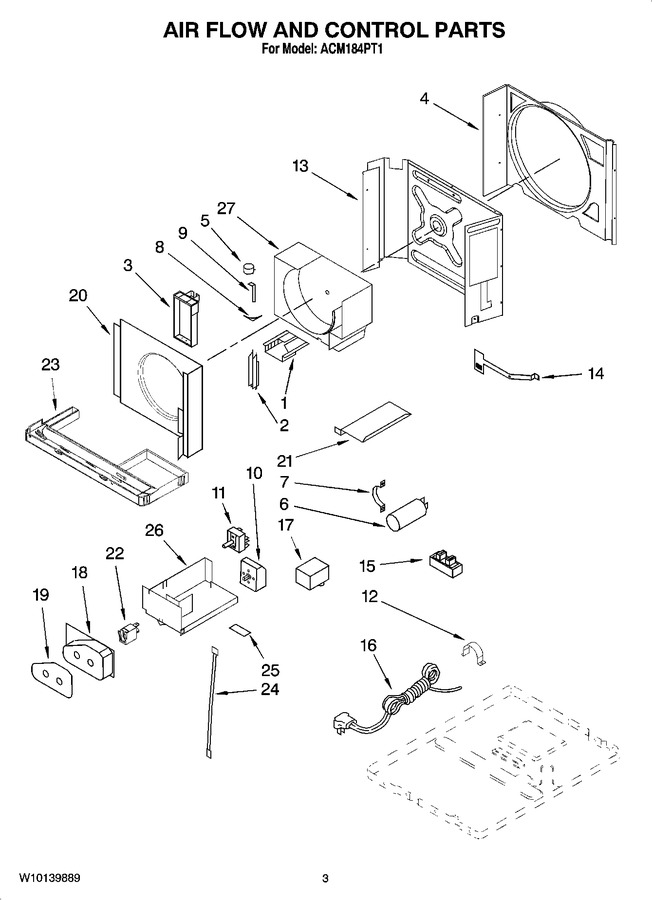

02 - Air Flow And Control Parts
03 - Cabinet Parts
04 - Optional Parts (not Included)
05 - Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8215111 | Housing, Air |
|
- | |||||
| 2 | 8215112 | Louver |
|
- | |||||
| 3 | 8215116 | Cartridge, Louver |
|
- | |||||
| 4 | 8215105 | Shroud, Condenser |
|
- | |||||
| 5 | 8215114 | Motor, Louver |
|
- | |||||
| 6 | 8215129 | Capacitor, Running |
|
- | |||||
| 7 | 8215132 | Bracket, Capacitor |
|
- | |||||
| 8 | 8215113 | Linkage, Louver |
|
- | |||||
| 9 | 8215115 | Linkage, Louver |
|
- | |||||
| 10 | 8215317 | Thermostat |
|
- | |||||
| 11 | 8215318 | Switch, Rotary |
|
- | |||||
| 12 | 8215135 | Wire Clamp |
|
- | |||||
| 13 | 8215109 | Wall, Dividing |
|
- | |||||
| 14 | 8215117 | Door, Exhaust |
|
- | |||||
| 15 | 8215089 | Terminal Block |
|
- | |||||
| 16 | 8215314 | Cord, Appliance |
|
$ 165.15 | |||||
| 17 | 8215128 | Capacitor |
|
- | |||||
| 18 | 8215322 | Cover, Control |
|
- | |||||
| 19 | 8215323 | Escutcheon |
|
- | |||||
| 20 | 8215119 | Shroud, Evaporator |
|
- | |||||
| 21 | 8215120 | Cover, Air Duct |
|
- | |||||
| 22 | 8215321 | Switch |
|
- | |||||
| 23 | 8215127 | Pan, Evaporator |
|
- | |||||
| 24 | 8209739 | Thermistor |
|
- | |||||
| 25 | 8215320 | Washer |
|
- | |||||
| 26 | 8215319 | Box, Control |
|
- | |||||
| 27 | 8215110 | Housing, Air |
|
- |
