Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 7.56

2 WP3196557 Screw   (Replaces: 1168744) In-Stock Immediately $ 7.16

3 1187487 Capacitor, Running Appelez-nous -
4 489392 Screw   (Replaces: 3400638) Special Order $ 12.62

5 WP489478 Screw,   (Replaces: 8533835) Special Order $ 7.36

6 1187690 Seal, Control Box Appelez-nous -
7 1187193 Hood, Air Housing Appelez-nous -
8 488734 Screw, Appelez-nous -
9 1187191 Housing, Top Appelez-nous -
14 1187176 Shroud, Condenser Appelez-nous -
15 8031150 Switch, Rotary Special Order $ 81.25

16 1185752 Thermostat Appelez-nous -
17 1187369 Box, Control Appelez-nous -
19 1187149 Panel, Control Appelez-nous -
20 1187185 Housing, Air- Bottom Appelez-nous -
25 1159222 Screw Appelez-nous -
26 1187845 Cable, Appliance Appelez-nous -
27 1185784 Sleeve, Insulator Appelez-nous -

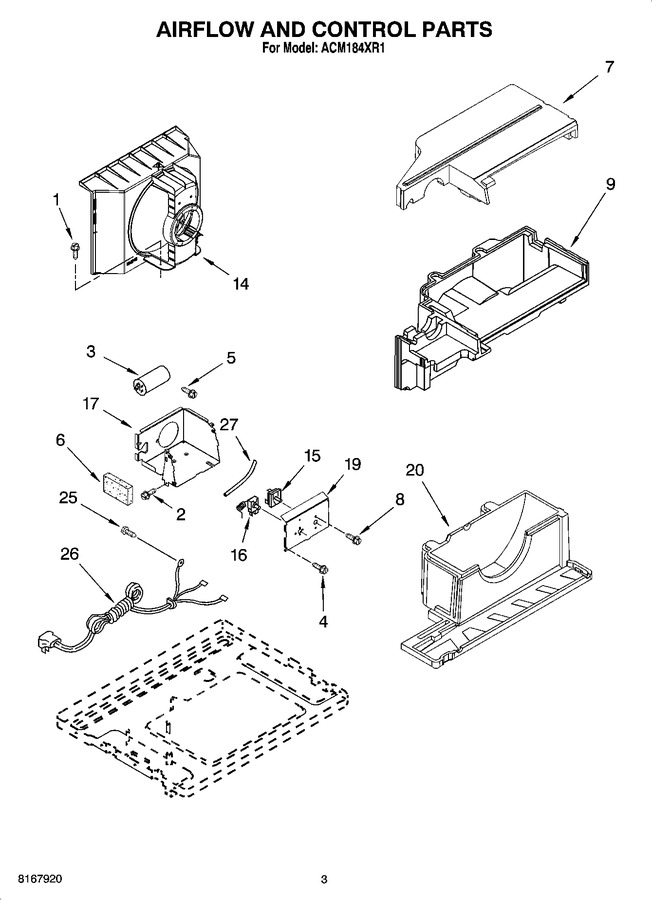

    View Diagram in Separate Window     Print Icon   Print Part List
