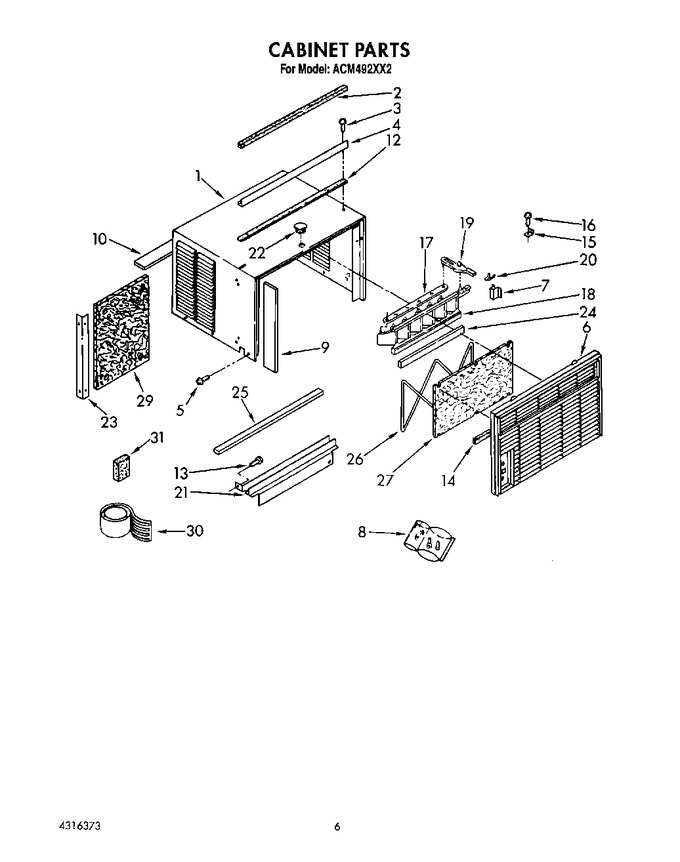

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157939		Cabinet		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	488506		Screw, 10 X 1/2 (3)		Appelez-nous	-
4	646985		Channel, Top		Appelez-nous	-
5	WP489069		Screw, St No.8 X 3/8 (6)   (Replaces: 1157158)			Immediately	$ 7.56
6	950306		Front, Cabinet Assembly		Appelez-nous	-
7	1158294		Clip, Vertical Louver		Appelez-nous	-
8	858358		Bag, Accessory		Appelez-nous	-
9	950169		Insulation, Side		Appelez-nous	-
10	1157942		Insulation, Top		Appelez-nous	-
12	856990		Seal, Strip		Appelez-nous	-
13	WP965173		Screw, S.m. No.8 X 3/8 (8)   (Replaces: 488017)			Immediately	$ 10.68
14	WP854334		Seal, Cabinet Front   (Replaces: 949090)				$ 12.55
15	644228		Bracket, Window		Appelez-nous	-
16	488255		Screw, 8 X 3/4		Appelez-nous	-
17	645684		Link, Louver (2)		Appelez-nous	-
18	1158325		Louver, Vertical		Appelez-nous	-
19	645683		Handle, Louver (2)		Appelez-nous	-
20	641484		Spring, Detent (1)				$ 150.14
21	645562		Bracket, Mounting ((right Side))		Appelez-nous	-
21	645563		Bracket, Mounting (left Side)		Appelez-nous	-
22	1157126		Cover, Hole		Appelez-nous	-
23	646988		Angle, Side		Appelez-nous	-
24	855238		Seal, Vertical Louver		Appelez-nous	-
25	856979		Strip, Seal		Appelez-nous	-
26	646963		Retainer, Filter		Appelez-nous	-
27	854925		Filter		Appelez-nous	-
29	648854		Board, Filler (2)		Appelez-nous	-
30	212643		Sealer, Gum   (Replaces: 470168)			Immediately	$ 86.78
31	995274		Spacer, Block		Appelez-nous	-
