SELECT A DIAGRAM

01 - Cover


02 - Unit Parts

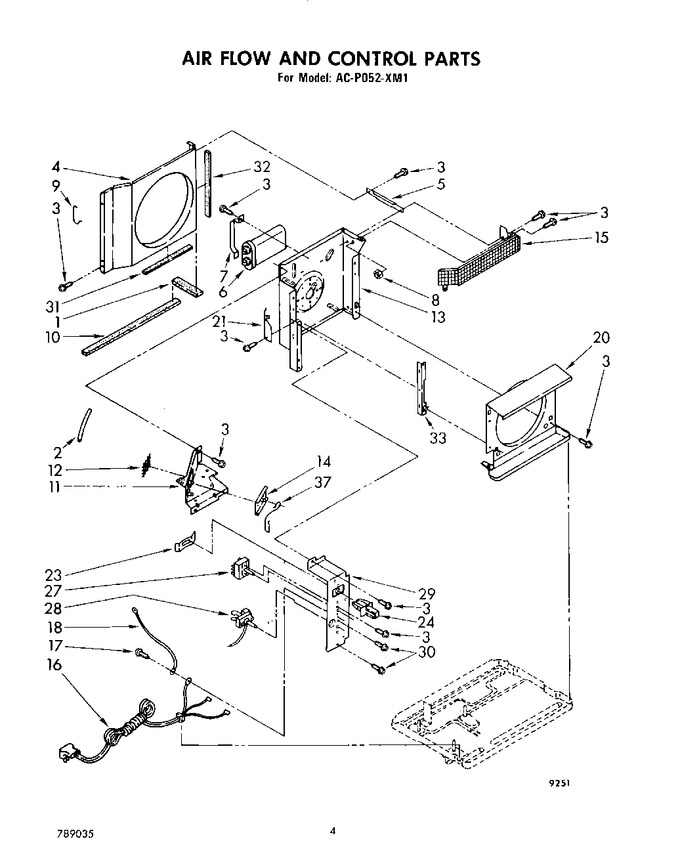

03 - Airflow And Control Parts


04 - Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	646870		Seal, Condensate		Appelez-nous	-
2	212643		Sealer, Tube   (Replaces: 859934)			Immediately	$ 86.78
3	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
3	488481		Screw, Repair		Appelez-nous	-
4	646297		Shroud, Condenser		Appelez-nous	-
5	649879		Support, Unit		Appelez-nous	-
6	950198		Capacitor, Running		Appelez-nous	-
7	856105		Bracket, Capacitor		Appelez-nous	-
8	486288		Nut, Speed No.8a		Appelez-nous	-
9	477442		Clip, Shroud		Appelez-nous	-
10	855493		Seal, Strip		Appelez-nous	-
11	646130		Extension, Dividing Wall (requires Insulation Part No. 469938)		Appelez-nous	-
12	856929		Screen, Exhaust Door		Appelez-nous	-
13	859822		Wall, Dividing Assembly (requires Insulation Part No. 469938)		Appelez-nous	-
14	646134		Door, Exhaust		Appelez-nous	-
15	996685		Guard, Evaporator Impeller		Appelez-nous	-
16	647216		Cord, Appliance		Appelez-nous	-
17	WPW10141604		Screw, St 8-32 X 3/8   (Replaces: 487871)				$ 7.97
18	856094		Wire, Ground		Appelez-nous	-
20	646123		Shroud, Evaporator		Appelez-nous	-
21	859890		Plate, Dividing Wall		Appelez-nous	-
23	853565		Retainer, Detent Spring		Appelez-nous	-
24	947468		Actuator, Exhaust Door		Appelez-nous	-
27	950283		Switch, Rotary		Appelez-nous	-
28	949411		Control, Temperature		Appelez-nous	-
29	993398		Panel, Control		Appelez-nous	-
30	488734		Screw, 6-32 X .175		Appelez-nous	-
31	859931		Seal, Condenser		Appelez-nous	-
32	857923		Seal, Condenser (r.s.)		Appelez-nous	-
33	855502		Bracket, Evaporator Mounting		Appelez-nous	-
37	789035		List, Repair Parts		Appelez-nous	-
37	47263		Wire, White (25 Ft.)		Appelez-nous	-
37	10943		Oil, Turbine 1 Fl. Oz.		Appelez-nous	-
37	950515		Sheet, Service Tech (service Information)		Appelez-nous	-
37	950318		Guide, Use & Care		Appelez-nous	-
37	950317		Guide, Energy		Appelez-nous	-
37	950316		Guide, Consumer Buy		Appelez-nous	-
37	950255		Arm, Exhaust Door		Appelez-nous	-
37	50516		No Drip Tape (sweating Tubes)		Appelez-nous	-
37	212643		Sealer For Cabinets & Windows (gum Type)   (Replaces: 470168)			Immediately	$ 86.78
37	469938		Insulation, Fiberglass (1/4`` X 24`` X 48``)		Appelez-nous	-
37	649939		Insulation, Cabinet (5/8`` X 25-11/16`` X 13``)		Appelez-nous	-
37	WP279368		Cement, Attach Insulation)   (Replaces: 797403)			Immediately	$ 104.81
37	485426		Lacquer, Starlight Gray (1/2 Pt. Uncut)		Appelez-nous	-
37	799351		Blend, Thinner (1 Gal.)		Appelez-nous	-
37	47261		Wire, Black (25 Ft.)		Appelez-nous	-
37	47262		Wire, Red, (25 Ft.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
