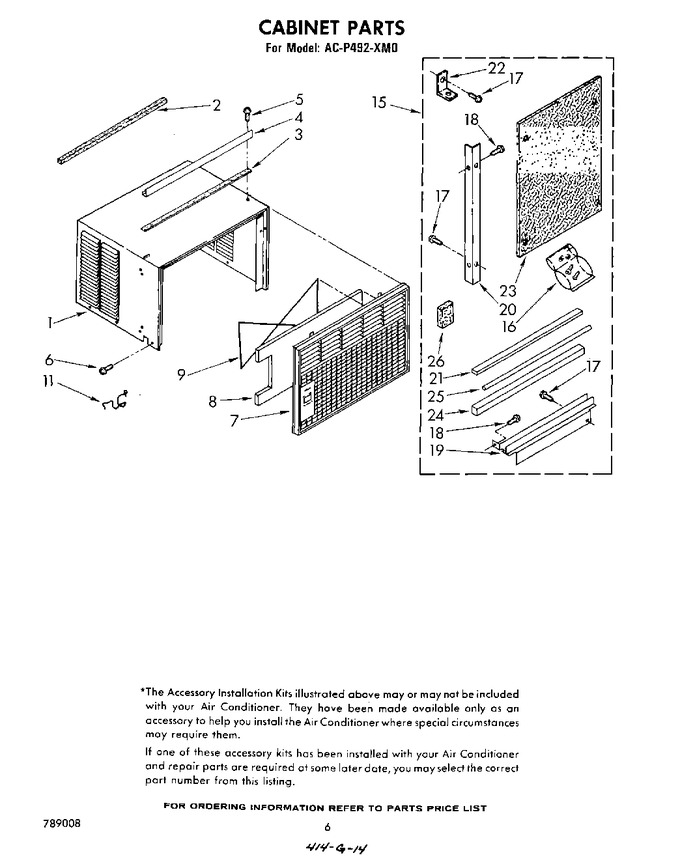

04 - Cabinet Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	857903		Cabinet		Appelez-nous	-
2	857777		Seal, Rear Cabinet Flange		Appelez-nous	-
3	856990		Seal, Top Mtg. Channel		Appelez-nous	-
4	646985		Channel, Top Mtg.		Appelez-nous	-
5	488506		Screw, Sm No.10 X 3/4 (2)		Appelez-nous	-
6	WP489128		Screw, St 8-32 X 3/8 (7)   (Replaces: 488875)				$ 10.26
7	950306		Front, Cabinet		Appelez-nous	-
8	854925		Filter, Air		Appelez-nous	-
9	646963		Retainer, Filter		Appelez-nous	-
11	949634		Clip, Cabinet Front Mtg (2)		Appelez-nous	-
15	994818		Xkit, Window Mounting		Appelez-nous	-
16	858358		Bag, Accessory		Appelez-nous	-
17	488255		Screw Wood No.8x3/4		Appelez-nous	-
18	WP965173		Screw, S.m. No.8 X 3/8 (4)   (Replaces: 488017)			Immediately	$ 10.68
19	645562		Bracket, Side Mtg. (left)		Appelez-nous	-
20	646988		Angle, Side Mtg.		Appelez-nous	-
21	856979		Strip, Seal		Appelez-nous	-
22	644228		Bracket, Window Lock		Appelez-nous	-
23	648854		Board, Filler (2)		Appelez-nous	-
24	469877		Seal, Meeting Rail		Appelez-nous	-
25	212643		Sealer, Gum Type   (Replaces: 470168)			Immediately	$ 86.78
26	995274		Block, Spacer (2)		Appelez-nous	-
