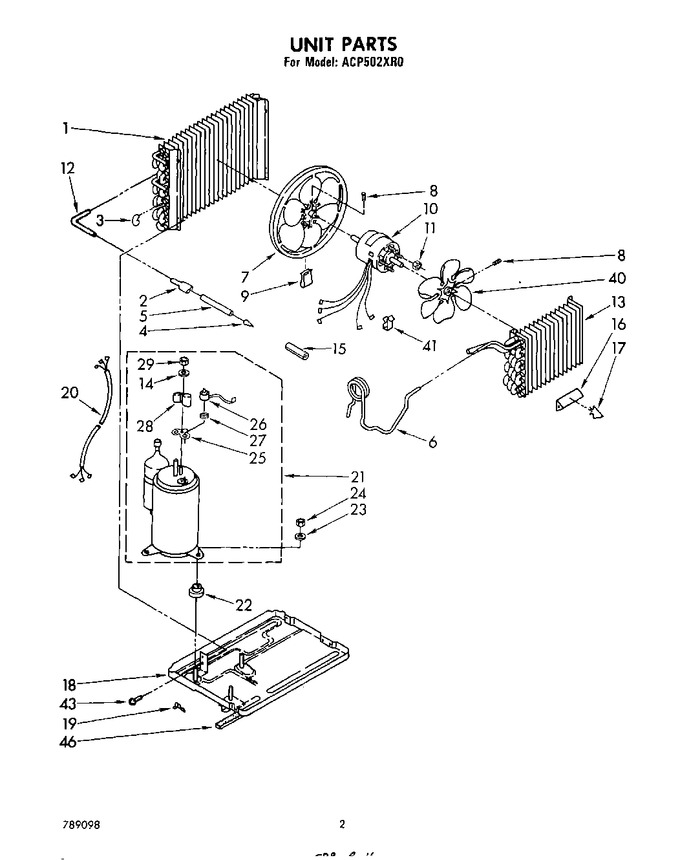

01 - Cabinet Parts


02 - Unit Parts


03 - Airflow And Control Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	950217		Condenser		Appelez-nous	-
2	947364		Tube, Flow Divider		Appelez-nous	-
3	855199		Bend, Return (11)		Appelez-nous	-
4	49599		Strainer		Appelez-nous	-
5	484230		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	950227		Tube, Restrictor (length 40.0``)		Appelez-nous	-
7	995387		Blade, Fan		Appelez-nous	-
8	595085		Setscrew, 5/16 X 1/4		Appelez-nous	-
9	485334		Clip, Balancing		Appelez-nous	-
10	949568		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
12	950814		Tube, 90~ Connect (1)		Appelez-nous	-
13	950296		Evaporator		Appelez-nous	-
14	950037		Gasket, Nut		Appelez-nous	-
15	950253		Dampener, Split		Appelez-nous	-
16	996773		Anticipator, Temperature		Appelez-nous	-
17	475577		Clip, Anticipator		Appelez-nous	-
18	950013		Base		Appelez-nous	-
19	855930		Clamp, Restrictor Tube		Appelez-nous	-
20	484136		Harness, Wiring		Appelez-nous	-
21	876807		Compressor		Appelez-nous	-
22	950212		Grommet (3)		Appelez-nous	-
23	489108		Washer		Appelez-nous	-
24	858122		Locknut (3)		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
26	950209		Overload		Appelez-nous	-
27	950032		Spring, Overload		Appelez-nous	-
28	WP950036		Cover, Terminal   (Replaces: 950213)				$ 9.83
29	WP950027		Retainer, Terminal Cover   (Replaces: 950027)				$ 5.20
40	997889		Fan, Blade Evaporator		Appelez-nous	-
41	852451		Clamp, Wiring		Appelez-nous	-
43	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
43	488481		Screw, Repair		Appelez-nous	-
46	484067		Cover, Winter				$ 85.58
46	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
46	978028		Valve, Access (1/2)		Appelez-nous	-
46	978029		Valve Access (5/8``)				$ 93.85
46	978030		Valve, Access (3/4``)				$ 123.53
46	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
46	993191		Seal, Base (r.s.)		Appelez-nous	-
46	484310		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
46	978026		Valve, Access (5/16``)			Immediately	$ 121.04
