SELECT A DIAGRAM

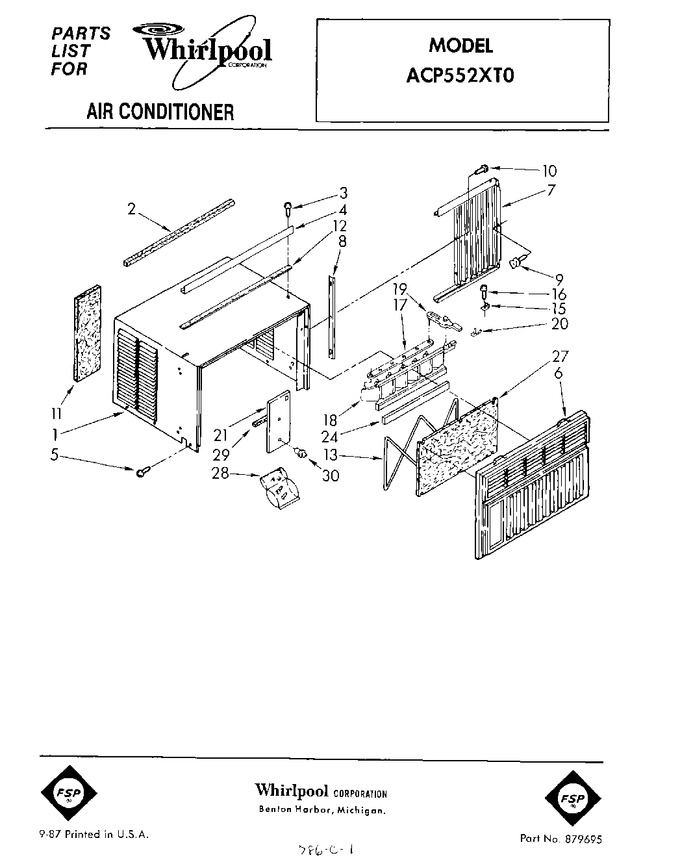

01 - Cabinet And Front


02 - Unit


03 - Airflow And Control


04 - Accessory


05 - Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	857903		Cabinet		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	WP308685		Screw, 10 X 1/2 (3)   (Replaces: 488720)			Immediately	$ 7.08
4	993849		Channel, Top		Appelez-nous	-
5	WP489128		Screw, St 8-32 X 3/8 (6)   (Replaces: 488875)				$ 10.26
6	950281		Front, Cabinet		Appelez-nous	-
7	646158		Housing, Curtain (l.s.)		Appelez-nous	-
7	646154		Housing, Curtain (r.s.)		Appelez-nous	-
8	646160		Retainer, Curtain (2)		Appelez-nous	-
9	475581		Thumbscrew (2)		Appelez-nous	-
10	488730		Screw, 8 X 7/16 (6)		Appelez-nous	-
11	857777		Seal, Rear Flange		Appelez-nous	-
12	856990		Seal, Strip		Appelez-nous	-
13	646963		Reatiner, Air Filter		Appelez-nous	-
15	644228		Bracket, Window		Appelez-nous	-
16	488255		Screw, 8 X 3/4		Appelez-nous	-
17	645684		Link, Louver		Appelez-nous	-
18	645605		Louver, Vertical		Appelez-nous	-
19	645683		Handle, Louver		Appelez-nous	-
20	641484		Spring, Detent				$ 150.14
21	1155401		Plate, Escutcheon		Appelez-nous	-
24	855238		Seal, Strip (vertical Louver)		Appelez-nous	-
24	WP854334		Seal, Strip (front Top & Sides)   (Replaces: 949090)				$ 12.55
27	852344		Filter, Air		Appelez-nous	-
28	476180		Bag, Accessory		Appelez-nous	-
29	WP854334		Spacer, Plate (2)   (Replaces: 646318)				$ 12.55
30	947264		Knob, Control (2)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
